features
Full Precision Double Roller Coater/UV Roller Coater Machine for Flat Products with 600/1300/2000mm, Roller Coater Equipment
1.It’s suitable for coating different kinds of flat products, such as wood panel ,calcium silicate board ,metal ,metal, ceramic, plastic, glass etc. Save paint and highly improve working efficiency.
2. Available kinds of paint: UV, PU, NC, and water-based paint and so on.
3. The application roller is made of imported material, with good flexibility and abrasion/solvent resistant after intensive CNC processed.
4. The doctor roller is made of 45# seamless steel tube, after CO2 welded as well. And the surface is with heat treatment and intensive grinding then electroplate, polish so as to achieve the mirror effect.
5. The machine equipped with imported material scraper, adjusted by small reducer to get high precision.
6. Equipped with 4mm PU material convey belt, which is solvent resistant and with extra anti-side device.
7. The application roller, the doctor roller and convey belt are controlled by the independent motor, reducer and inverter to ensure the machine more stable and precision.
8. Independent up-and-down and paint recycle to ensure utility flexibility and stability.
Parameters
| Model | JXRA-II600 | JXRA-II1300 | JXRA-II2000 |
| Working Width | 600mm | 1300mm | 2000mm |
| Shortest Working Length | 250mm | 250mm | 300mm |
| Working Thickness | 2-80mm | 2-80mm | 2-80mm |
| Feeding Speed | 0-25m/min | 0-25m/min | 0-25m/min |
| Convey Power | 0.75kw | 1.5kw | 2.2kw |
| Application Roller Size | Φ240*750mm | Φ240*1450mm | Φ260*2150mm |
| Application Roller Power | 0.75kw*2 | 1.5kw*2 | 2.2kw*2 |
| Doctor Roller Size | Φ150*750mm | Φ150*1450mm | Φ180*2150mm |
| Doctor Roller Power | 0.37kw*2 | 0.75kw*2 | 1.5kw*2 |
| Up and Down Power | 0.37kw*2 | 0.37kw*2 | 0.55kw*2 |
| Total Power | 3.75kw | 6.75kw | 10.7kw |
| Machine Size | 1840*1620*1550mm | 1840*2350*1550mm | 1840*3050*1550mm |
| Machine Weight | 900kg | 1200kg | 1700kg |

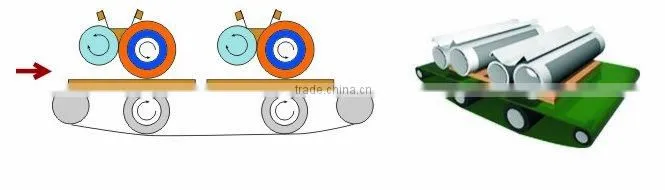

Running model:
1. Wooden standard carton is suitable for the export and long transportation,free fumigation.
2. Air,sea and express transportation all are available,we have good cooperations with them ,this saves your shipping cost and guarantee your goods safe, if your own forwarder in China can help you to handle the export ,we can accept the factory price(EXW.), We arrange the local shipment,which’s easy for you to control the transportation cost.
Shenzhen Jixingyuan Painting Equipment Co., Ltd
Established in 2003, Shenzhen Jixingyuan Painting Equipment Co., Ltd. is engaged in the production, sale and service of UV surface&edge coating equipments, such as Roller coaters, UV curing equipments, Curtain coaters, Spraying equipments, Robot series and so on.
Jixingyuan is currently the fastest growing painting equipmet company in China market. it has a good reputation and ambitious development goals. Also own an exzcellent team, keep learning experience of domestic and oversea. Struggle for becoming the leading enterprice in the field of painting equipment.
Our Team:
1. What is the UV coating machine MDF warranty?
Warranty: Warranty is valid for 12 months in the hypothesis of machinery use for an 8-hourworking shift. Warranty does not cover parts subject to damaged by improperuse, incident ornegligence of the Buyer or by reasons external to normal use (i.e. change in the power net, causedby thunderstorm, etc.) Transport costs and labour are excluded.
2. Why choose JXY?
1,Professional:We are professional in woodworking machinery field for more than 10 years.
2,Excellent:Our machines get great reputation and produce nice quality product for customers all over the world.
3,Economial:We offer the good price with great quality because we do high-volume production manufacturer.
3.How to contact me?
More details please contact with Joanna Shen
Company:Shenzhen Jixingyuan Painting Equipment Co., Ltd
Tel:86-755-27539937
Headquarter:19F, Zhongya R&D Building; Songgang Town; Baoan District; Shenzhen
Factory: 10 Block, Jinjiali Industry Zone, Bitou; Songgang Town; Baoan District; Shenzhen
