UV Vacuum Oven / uv curing machine/ uv drying machine
/uv dryer machine(JXUV III-1300)

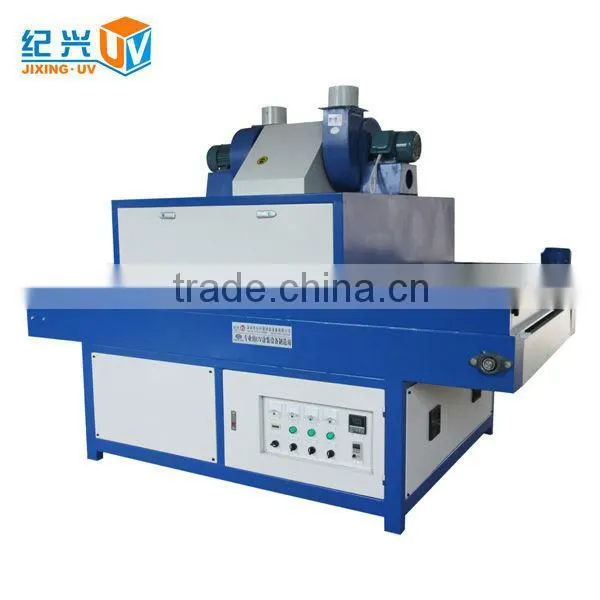

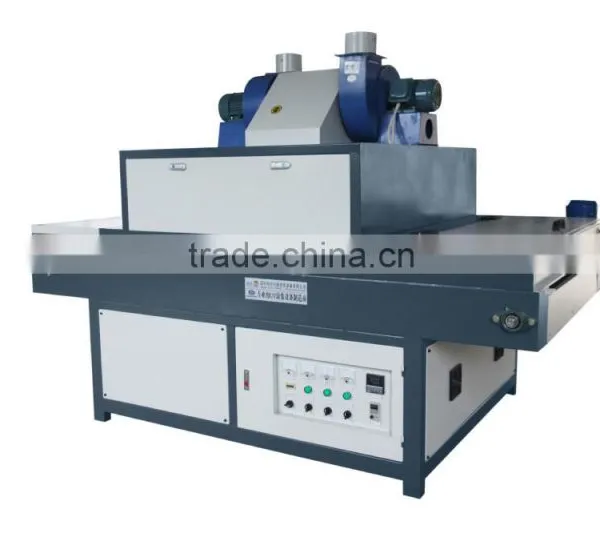

Three lamps UV curing machine
1.The machine is welding by angle steel and square steel,the airframe is made of cold-rolled steel plate.
2.The whole machine is adopted by electrostatic coating which can well anti-corrosion and easy to clean.
3.The main part of electrical control is from French Schneider with a high sensitivity and prolonged durable.
4.The motor is from Taixin reducer and the speed is controlled by Taiwan Delta inverter with stable function.
5.The conveyor with stainless steel pole-style (net-style).
6.The lamp is made of importing material and the work life is over 800 hours. The reflector is made of importing mater
7.The power is Taiwan style, more energy-saving and high efficiency.
8.The control circuit is designed rational; such as leakage protector;overload protected motor.Control circuit insurance;blower motor insurance;uv light amumeter;light on action;XM;LED of power;start/stop switch; power to set a half for uv light. etc
9.Adopt special air cooling system and digital thermostat. The blower come from Jiuzhou Huipu.the whole machine guaranteed 1 year (except lamp) and maintains a lifelong.
10.Voltage:380V,50HZ
Model |
JXUV 111-600 |
JXUV 111-1000 |
JXUV 111-1300 |
Working Width(mm) |
600 |
1000 |
1300 |
Working Thickness(mm) |
100 |
100 |
100 |
Feeding Speed(m/min) |
5~20 |
5~20 |
5~20 |
Shortest Convey Length(mm) |
300 |
300 |
300 |
Fan Power(kw) |
0.55*2 |
0.55*2 |
0.55*2 |
Electrical appliances Power(kw) |
0.37 |
0.37 |
0.75 |
Lamp Power(kw) |
5*3 |
7.2*3 |
9.6*3 |
Total Power(kw) |
16.47 |
23.45 |
30.65 |
Machine Size(mm) |
2500*1250*1260 |
2500*1650*1260 |
2500*1950*1980 |
Machine Weight(kg) |
660 |
760 |
860 |
Running model:
1. Wooden standard carton is suitable for the export and long transportation,free fumigation.
2. Air,sea and express transportation all are available,we have good cooperations with them ,this saves your shipping cost and guarantee your goods safe, if your own forwarder in China can help you to handle the export ,we can accept the factory price(EXW.), We arrange the local shipment,which’s easy for you to control the transportation cost.
About us:
Shenzhen Jixingyuan Technology Joint-Stock Co., Ltd
Established in 2003, Shenzhen Jixingyuan Technology Joint-Stock Co., Ltd. is engaged in the production, sale and service of UV surface&edge coating equipments, such as Roller coaters, UV curing equipments, Curtain coaters, Spraying equipments, Robot series and so on.
Jixingyuan is currently the fastest growing painting equipmet company in China market. it has a good reputation and ambitious development goals. Also own an excellent team, keep learning experience of domestic and oversea. Struggle for becoming the leading enterprise in the field of painting equipment.
Our Team:
1. What is the UV coating machine MDF warranty?
Warranty: Warranty is valid for 12 months in the hypothesis of machinery use for an 8-hour
working shift. Warranty does not cover parts subject to normal wear or damaged by improper
use, incident or negligence of the Buyer or by reasons external to normal use (i.e. change in the
power net, caused by thunderstorm, etc.) Transport costs and labour are excluded.
2. Why choose JXY?
1,Professional:We are professional in woodworking machinery field for more than 10 years.
2,Excellent:Our machines get great reputation and produce nice quality product for customers all over the world.
3,Economial:We offer the good price with great quality because we do high-volume production manufacturer.
3. How to contact me?
More details please contact with Jasmine
Skype ID:jasminelovesiki
Shenzhen Jixingyuan Technology Joint-Stock Co., Ltd
Tel:86-755-27539937
Headquarter:19F, Zhongya R&D Building; Songgang Town; Baoan District; Shenzhen
Factory: 10 Block, Jinjiali Industry Zone, Bitou; Songgang Town; Baoan District; Shenzhen
