Home > Electrical & Electronics > Optical Fiber, Cable & Wire > Electric Wire & Cable > High Voltage Cable

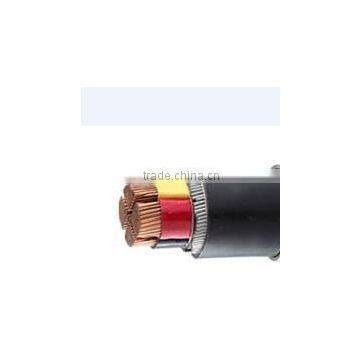

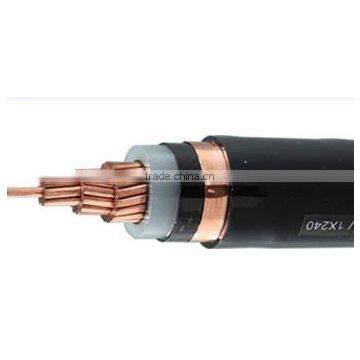

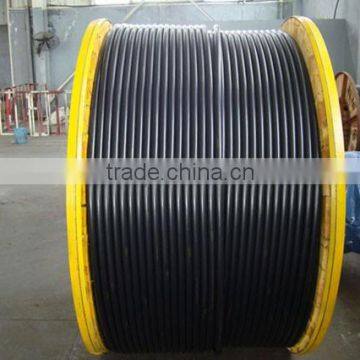

High Voltage Cable
Negotiable
MOQ: 10000 Meters (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Insulation Material:
XLPE
Type:
High Voltage
Conductor Material:
Copper
Payment & Shipping
Payment Methods:
Port of Shipment:
NINGBO OR SHANGHAI
Delivery Detail:
Delivery time depends on order quantity.
Related Products
Insulation Material
XLPE
Type
High Voltage
Conductor Material
Copper
Jacket
PE
Specifications
High voltage cable(YJV)

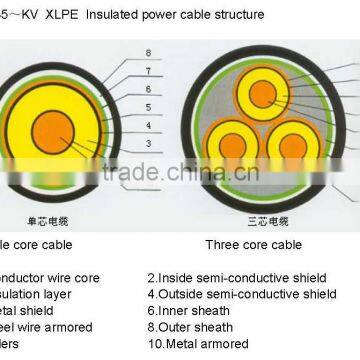

| Three-core XLPE insulated power cable(8.7/10 8.7/15KV) | |||||||||||||
| Nominal | Nominal | Approx | Approx.weight of | Approx | Approx.weight of | Approx | Approx.weight of | Approx | Approx.weight of | ||||
| Cross | Insulation | overall | cable kg/km | overall | cable kg/km | overall | cable kg/km | overall | cable kg/km | ||||
| Sectional | Thickness | diameter | diameter | diameter | diameter | ||||||||
| Area | of cable | YJV | YJLV | of cable | YJV22 | YJV22 | of cable | YJV32 | YJV32 | of cable | YJV42 | YJV42 | |
| MM2 | MM | MM | YJV | YJLV | MM | YJV23 | YJV23 | MM | YJV33 | YJV33 | MM | YJV43 | YJV43 |
| 25 | 4.5 | 46 | 2380 | 1901 | 50 | 3406 | 2929 | 52 | 4745 | 4262 | 55 | 6203 | 5719 |
| 35 | 4.5 | 49 | 2818 | 2132 | 53 | 3896 | 3210 | 54 | 5381 | 4589 | 59 | 6824 | 6132 |
| 50 | 4.5 | 52 | 3299 | 2405 | 56 | 4441 | 3547 | 59 | 5935 | 5030 | 61 | 8195 | 7291 |
| 70 | 4.5 | 56 | 4117 | 2818 | 59 | 5342 | 4042 | 62 | 6942 | 5631 | 65 | 8713 | 7401 |
| 95 | 4.5 | 59 | 5155 | 3294 | 64 | 6557 | 4697 | 66 | 8230 | 6352 | 69 | 10085 | 8208 |
| 120 | 4.5 | 64 | 6317 | 3892 | 69 | 7896 | 5471 | 71 | 9715 | 7268 | 74 | 11720 | 9273 |
| 150 | 4.5 | 68 | 7303 | 4366 | 73 | 8971 | 6033 | 76 | 11692 | 8728 | 78 | 12915 | 9951 |
| 185 | 4.5 | 72 | 8405 | 4880 | 76 | 10179 | 6654 | 80 | 13234 | 9677 | 82 | 14487 | 10931 |
| 240 | 4.5 | 77 | 10323 | 5728 | 82 | 12272 | 7676 | 85 | 15496 | 10859 | 87 | 16828 | 12231 |
| 300 | 4.5 | 82 | 12658 | 6691 | 88 | 15673 | 9706 | 90 | 18234 | 12213 | 92 | 19689 | 13668 |
| 400 | 4.5 | 89 | 15195 | 7767 | 96 | 18830 | 11402 | 100 | 21035 | 13607 | 103 | 22440 | 15160 |
| 500 | 4.5 | 96 | 18305 | 9020 | 104 | 22267 | 12982 | 107 | 24589 | 15304 | 110 | 25961 | 16874 |
