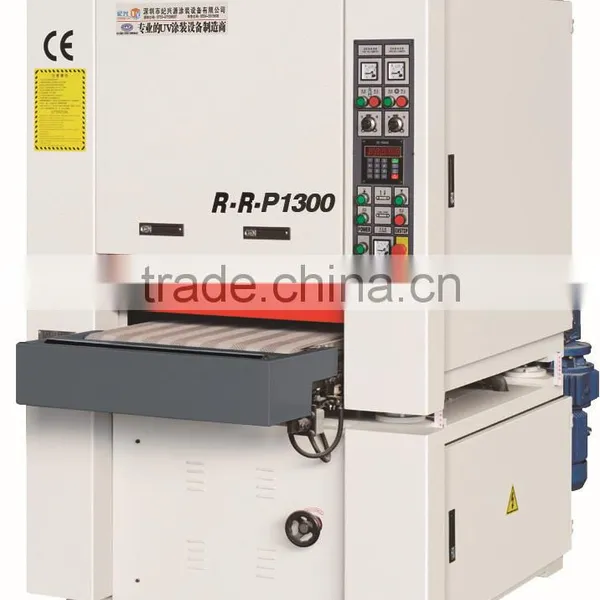

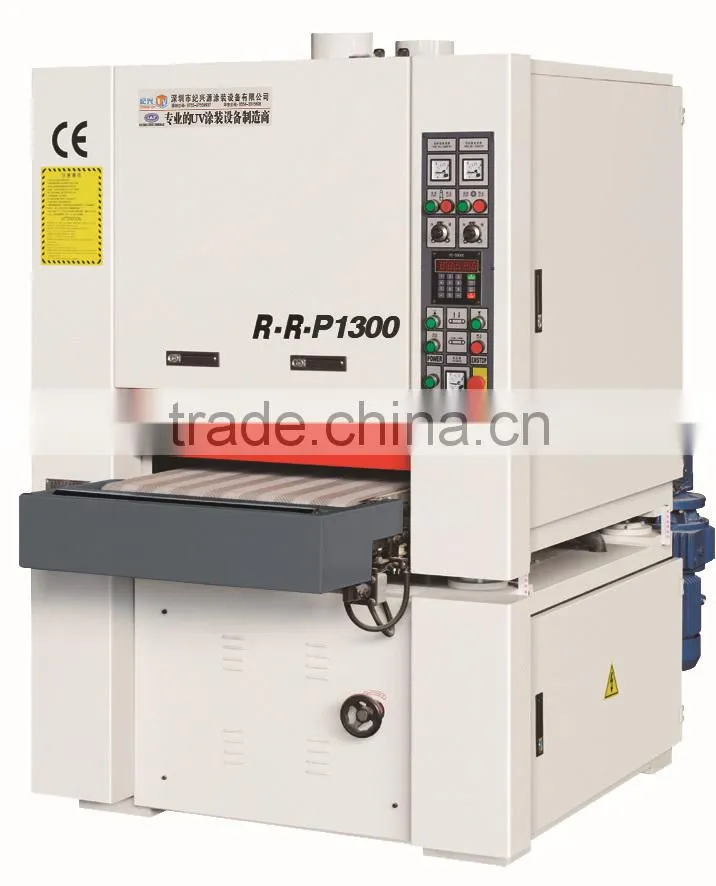

Woodworking Sanding Machine(JXR-R-P1000)
Description:
- sanding machine is specially designed for lacquer grinding after coating,suitable for all kinds of flat products especially wood and panel, the surface will be uniform and smoothly after grinding.
- sanding machine adopt soft bottom sanding wheel which can grind the rough coating surface to flat and reduce the pressure of panel at the same time .
- sanding machine conveying and grinding of the sanding belt all adopt frequency conversation adjustment system cooperating better and suitable for many products.(uv board, wood, metal, glass, tile, ceramic).
- sanding machine Integration of the whole body and the fire treatment of key area make it more stable.
Technical parameters: Model |
JXR-R-P600 |
JXR-R-P1000 |
JXR-R-P1300 |
Working Width(mm) |
30~600 |
30~1000 |
30~1300 |
Working Thickness(mm) |
2.5~100 |
2.5~100 |
2.5~100 |
Feeding Speed(m/min) |
6~38 |
6~38 |
6~38 |
Belt Size(mm) |
Φ650*1700d |
Φ1020*1700 |
Φ1320*2200 |
Sanding Roll Size(mm) |
Φ190 |
Φ190 |
Φ240 |
Polishing Roll Size(mm) |
Φ190 |
Φ190 |
Φ190 |
Work voltage(mpa) |
>=0.55 |
>=0.55 |
>=0.55 |
Wind Velocity(m/s) |
25~30 |
25~30 |
25~30 |
Convey Power(kw) |
1.5 |
1.5 |
1.5 |
Polishing Power(kw) |
4 |
4 |
7.5 |
Belt Power(kw) |
5.5 |
7.5 |
11 |
Total Power(kw) |
11 |
13 |
18.5 |
Machine Size(mm) |
1300*1000*2000 |
1900*1600*2100 |
2700*2100*2000 |
Machine Weight(kg) |
1600 |
2200 |
3500 |
Package
wooden standard carton is suitable for the export and long transportation,free fumigation.
Payment
We usually accept T/T, payment terms : 30% TT deposit, the balance before shipping.
Shipment
Air,sea and express transportation all are available,we have good cooperations with them ,this saves your shipping cost and guarantee your goods safe, if your own forwarder in China can
help you to handle the export ,we can accept the factory price(EXW.),
We arrange the local shipment,which’s easy for you to control the transportation cost.
Warranty
- 1 years warranty for the machines.
- Any warranty shipping cost to us is responsible by buyer
FAQ
What is the curtain coating machine for wood floor ,Furniture warranty?
Warranty: Warranty is valid for 12 months in the hypothesis of machinery use for an 8-hour
working shift. Warranty does not cover parts subject to normal wear or damaged by improper
use, incident or negligence of the Buyer or by reasons external to normal use (i.e. change in the
power net, caused by thunderstorm, etc.) Transport costs and labour are excluded.
What about the UV coating machine for wood floor working size?
Usually 300mm . Also It can produce as clients requests.
What is the minimum quantity for order?
One set for order.
Do you have stock product to sell?
Maybe , It’s depend on which machine ,you like?
Do you inspect the finished products?
Yes, Each step of production products will be camed out inspection by QC department
before shipping.
How do you ship the finished products?
As the machines is too big , so usually it is shipping by Sea
What’s the Payment term?
Payment term: 30% TT deposit , the balance before shipment.
What’s the delivery time?
Within 25 days after get the payment
