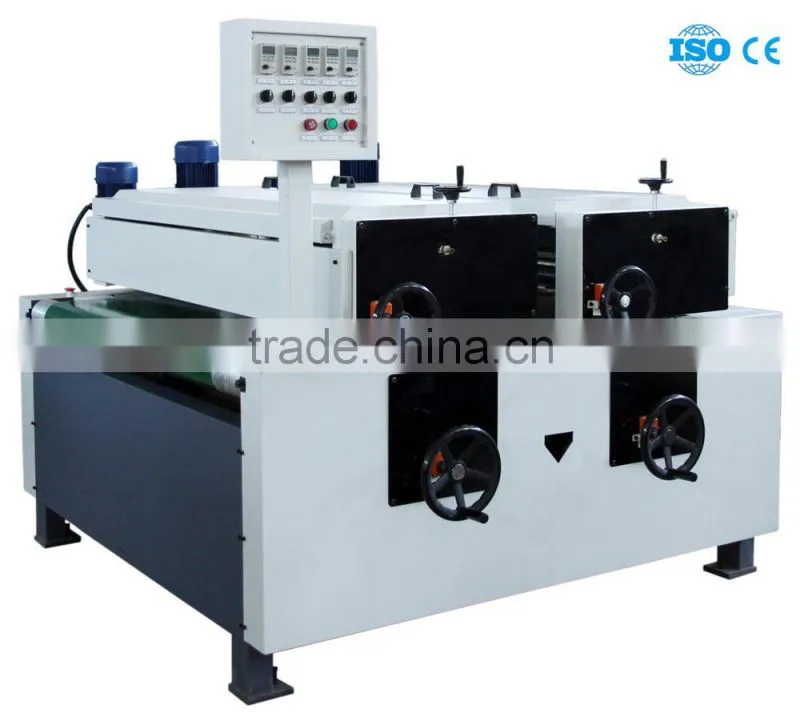

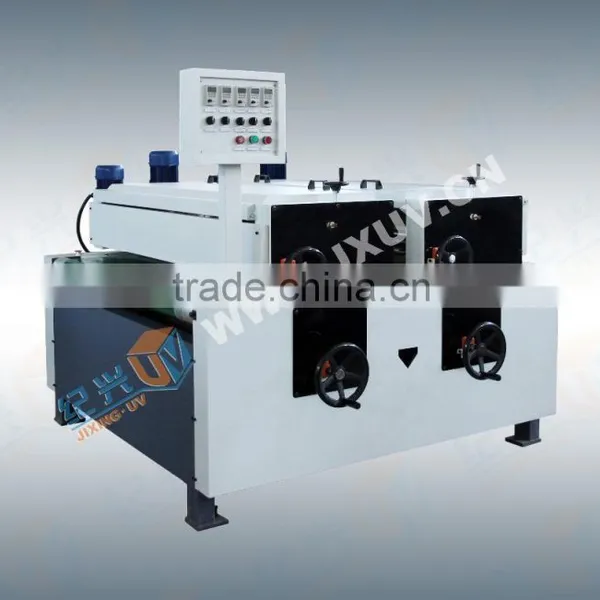

UV/NC/PU/PE and water based uv coating machine
1. UV Coating Machine , uv coater ,rubber roller uses imported materials, PU rubber rollers. Its diameter is 250mm. The diameter of the roll surface is processed precisely. 2. UV Coating Machine , uv coater rear smooth roll adopts long smooth rolls with 130mm diameter. The roll surface is plated with chrome. The outer circle is precisely processed through CNC grinding machines. 3. Strong scrapers made of imported materials are adjusted by speed reduction machines with small turbines. 4. UV Coating Machine ,uv coater conveying belt is the 3mm PU anti-slip belt. It can resist all kinds of solvents and prevent chemical corrosion. 5. The operation of smooth rolls and rubber rollers is controlled by the independent frequency converter and speed reduction machine. 6. Sealing arrangements of the bearing is to prevent the penetration of paints. 7. The complete machine is equipped with five units of Taiwan Delta frequency converters and five units of speed reduction machine. 8. UV Coating Machine , uv coater lifting system adopts elevators with dovetail groove style. The speed reducer raises and down electrically and smoothly, with good stability. The material input is equipped with the far-infrared detector to prevent the entrance of inappropriate materials 9. UV Coating Machine , uv coater complete machine is collocated with a diaphragm pumps and a 40L heating fuel tank. 10. 0.5MPA air source Equipments required to configurate by customers themselves: 1. 50HZ, 380V three-phase power source.
| |
Technical Parameters | |
Model |
JXRA II-1300 |
working width |
1300mm |
feeding speed |
5~20m/min |
working thickness |
2~80mm |
convey power |
1.5kw |
rubber wheel power |
1.5kw |
steel wheel power |
0.75kw |
rubber wheel size |
Φ250*1450mm |
steel wheel size |
Φ130*1450mm |
total power |
9.4kw |
uv coating Machine size(L*W*H) |
1800*2260*1580mm |
uv coater weight |
1800kg |
about our pictures :
about us :
Shenzhen jixingyuan painting equipment Co.,Ltd is established in 2003. is engaged in the production ,sale and service of uv surface & edge coating equipments ,such as roller coaters ,Spraying equipment, UV Curing Machine, Sander Machine etc. for 10 years. So we have great creativity and vitality, the staffs are rich in ideals and skillful and our company is already has a large number of senior technician and professional technical knowledge to ensure high quality.
We have Jixingyuan Hong Kong holding group co Ltd , Shenzhen Jixingyuan Painting Equipment Co. Ltd., East China Branch (Huainan Jixingyuan Painting Equipment Co. Ltd), Fujian Branch office, Beijing branch Office and Shandong office and Hebei office , We have two factories (one is located in Shenzhen ,the other is in Huainan ),which is provided best and quickest service for our Mainland client .
Our factory produce the equipments to meet customers home and abroad, Most of our products are distributed to clients in Singapore, the Middle East India ,Southeast Asia , Dubai and other foreign countries . We provide our customers with high quality products and technical information services.
CERTIFICATION OF QUALITY :
Package
wooden standard carton is suitable for the export and long transportation,free fumigation.
Payment
We usually accept T/T, payment terms : 30% TT deposit, the balance before shipping.
Shipment
Air,sea and express transportation all are available,we have good cooperations with them ,this saves your shipping cost and guarantee your goods safe, if your own forwarder in China can help you to handle the export ,we can accept the factory price(EXW.),
We arrange the local shipment,which’s easy for you to control the transportation cost.
Warranty
- 1 years warranty for the machines.
- Any warranty shipping cost to us is responsible by buyer
FAQ
What is the curtain coating machine for wood floor ,Furniture warranty?
Warranty: Warranty is valid for 12 months in the hypothesis of machinery use for an 8-hour
working shift. Warranty does not cover parts subject to normal wear or damaged by improper
use, incident or negligence of the Buyer or by reasons external to normal use (i.e. change in the
power net, caused by thunderstorm, etc.) Transport costs and labour are excluded.
What about the UV coating machine for wood floor working size?
Usually 300mm . Also It can produce as clients requests.
What is the minimum quantity for order?
One set for order.
Do you have stock product to sell?
Maybe , It’s depend on which machine ,you like?
Do you inspect the finished products?
Yes, Each step of production products will be camed out inspection by QC department
before shipping.
How do you ship the finished products?
As the machines is too big , so usually it is shipping by Sea
What’s the Payment term?
Payment term: 30% TT deposit , the balance before shipment.
What’s the delivery time?
Within 25 days after get the payment
Why choose LINZE?
1,Professional:We are professional in woodworking machinery field for more than 10 years.
2,Excellent:Our machines get great reputation and produce nice quality product for customers all over the world.
3,Economial:We offer the good price with great quality because we do high-volume production manufacturer.
How to contact me?
More details please contact : Alice Xia
Skype ID: alicexia568
email : alice (at )
Company name : Jixingyuan Technology Joint-stock Co., Ltd.
Add.: No.18, Yongxing North Road, Luohe Economic and Technological
Development Zone , Huai Nan city, AnHui Province,China
TEL.: 0086 554 2915218 | F: 0086 554 2915218
Mobile:0086 13309641539(whatsapp and wechat are available)
