Transparent Liquid / Water Bottom UV Coating Spray Machine

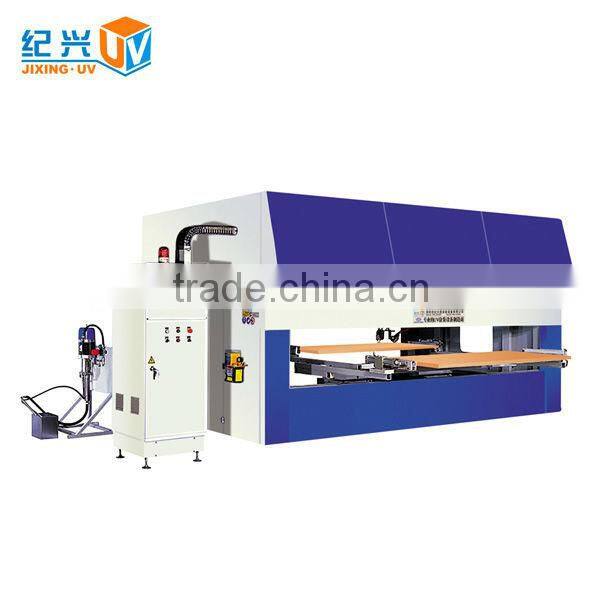

Transparent Liquid / Water Bottom UV Coating Spray Machine photo-1
US$ 6,000 - 190,000 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Place of Origin:
Guangdong, China
Brand Name:
Jixingyuan
Payment & Shipping
Payment Methods:
Port of Shipment:
Shenzhen
Delivery Detail:
Delivery time depends on order quantity.
Condition New
Place of Origin Guangdong, China
Brand Name Jixingyuan
Model Number JXFT I-1300
After-sales Service Provided Overseas service center available

Specifications

Transparent Liquid / Water Bottom UV Coating Spray Machine
1.for floor,furniture,decorating board and calcium
2.for NC,PE,PU

Transparent Liquid / Water Bottom UV Coating Spray Machine MDF UV Roller Coater MDF UV Coating Machine Board Floor Roll Coating Machine Wood Light Lacquer Putty Machine Primer fill putty machine,Grain Filling equipment (JXFT I-1300)

Description:



1. The Machine is for all kinds of products with rough surface of the board . The steel wheel can fill paint to the sunken place and replace manual filling (but only for products which have a little rough .

2. It can be widely used in flat products like floor, furniture,decorating board,calcium silicate board and so on. The filling amount of the machine can be changed by scraper and roller .

3.It is suitable for paints like NC ,PU,PE,UV, etc. And it have the device which can prevent lacquer putty out .

4. Work pieces convey by belt conveyor with automatic fixed system.

5. Changing the roller of the machine is quick.

6. The machine can control the work thickness and able to stop emergency.



Processing:

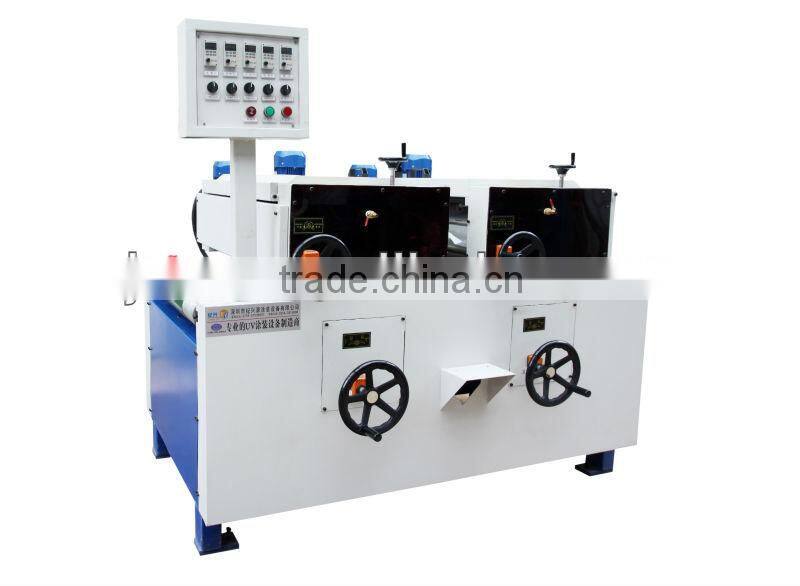

Transparent Liquid / Water Bottom UV Coating Spray Machine



Specification:

ModelJXFT I 1300
Working Width1300mm
Working thickness2~80mm
Feeding Speed5~20m/min
Shortest working length300mm
Rubber wheel sizeΦ240*1450mm
Steel wheel sizeΦ130*1450mm
Filling wheel sizeΦ240*1450mm
Convey power1.5kw
Rubber wheel power1.5kw
Steel wheel power0.75kw
Filling wheel power1.5kw
Machine size1600*2260*1580
Weight1400kg



Transparent Liquid / Water Bottom UV Coating Spray MachineTransparent Liquid / Water Bottom UV Coating Spray MachineTransparent Liquid / Water Bottom UV Coating Spray Machine

Transparent Liquid / Water Bottom UV Coating Spray Machine
