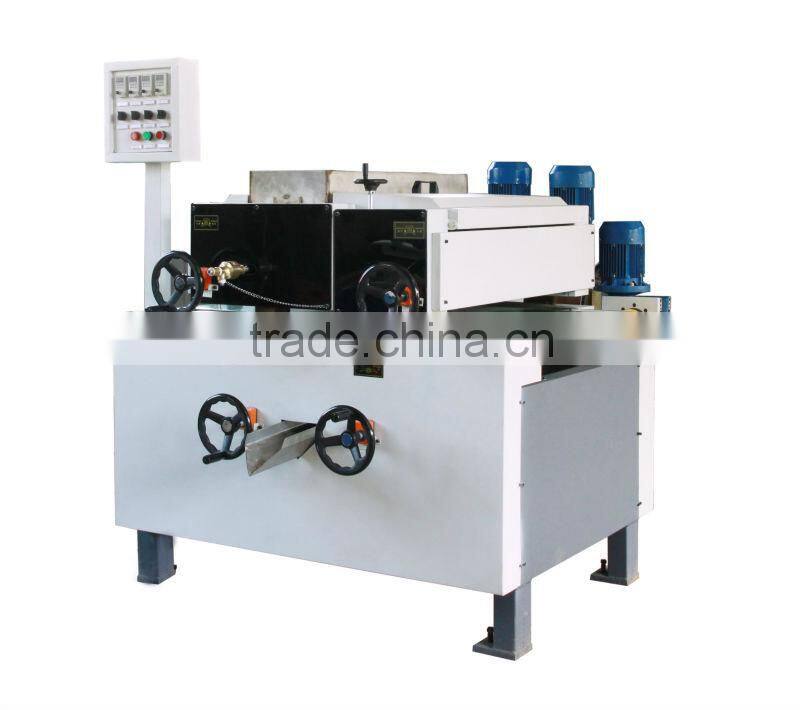

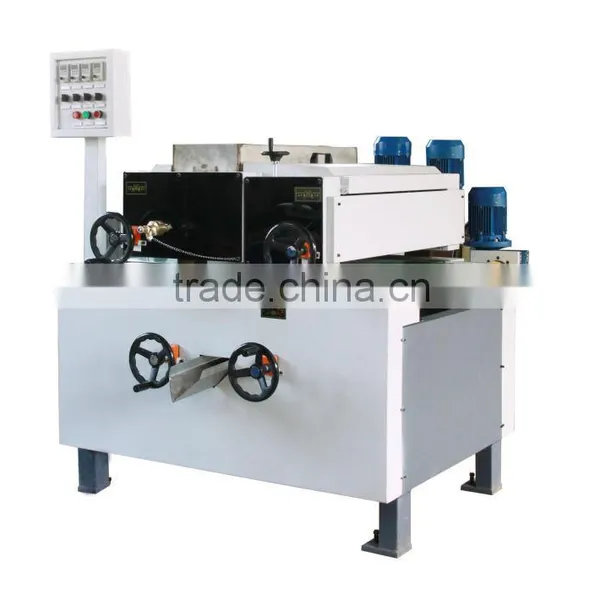

Woodworking Putty Filling Machine
Machine Specification:
- Putty Filling Machine is for all kinds of products with rough surface of the board .
- The steel wheel can fill paint to the sunken place and replace manual filling (but only for products which have a little rough .
- Putty Filling Machine can be widely used in flat products like floor, furniture,decorating board,calcium silicate board and so on.
- The filling amount of the machine can be changed by scraper and roller .
- Putty Filling Machine is suitable for paints like NC ,PU,PE,UV, etc.
- And it have the device which can prevent lacquer putty out .
- Putty Filling Machine Work pieces convey by belt conveyor with automatic fixed system.
- Changing the roller of the machine is quick.
- Putty Filling Machine can control the work thickness and able to stop emergency.
1. 50HZ, 380V three-phase power source.
2. 0.5MPA air source.
Technical Parameter:
Model | JXFT 1-600 | JXFT 1-1000 | JXFT 1-1300 |
Working Width(mm) | 600 | 1000 | 1300 |
Working Thickness(mm) | 2~80 | 2~80 | 2~80 |
FeedingSpeed (m/min) | 5~20 | 5~20 | 5~20 |
Shortest convey Length( mm) | 300 | 300 | 300 |
Rubber Wheel Size | 250×750 | 250×1150 | 250×1450 |
Steel Wheel Size | 130×750 | 130×1150 | 130×1450 |
Filled Roll Size | 250×750 | 250×1150 | 250×1450 |
Convey Power(kw) | 0.75 | 1.5 | 1.5 |
Pictures about us:
About Us
Shenzhen jixingyuan painting equipment Co.,Ltd is established in 2003. is engaged in the production ,sale and service of uv surface & edge coating equipments ,such as roller coaters ,Spraying equipment, UV Curing Machine, Sander Machine etc. for 10 years. So we have great creativity and vitality, the staffs are rich in ideals and skillful and our company is already has a large number of senior technician and professional technical knowledge to ensure high quality.
We have Jixingyuan Hong Kong holding group co Ltd , Shenzhen Jixingyuan Painting Equipment Co. Ltd., East China Branch (Huainan Jixingyuan Painting Equipment Co. Ltd), Fujian Branch office, Beijing branch Office and Shandong office and Hebei office , We have two factories (one is located in Shenzhen ,the other is in Huainan ),which is provided best and quickest service for our Mainland client .
Our factory produce the equipments to meet customers home and abroad, Most of our products are distributed to clients in Singapore, the Middle East India ,Southeast Asia , Dubai and other foreign countries . We provide our customers with high quality products and technical information services.
Customer Service
Call or email anytime if you have any question for our machines, we will send you more details and do our best to give you the valuable suggestion for the production line to save time and money.
After-sales Service
Longlife maintenance for the equipments.
