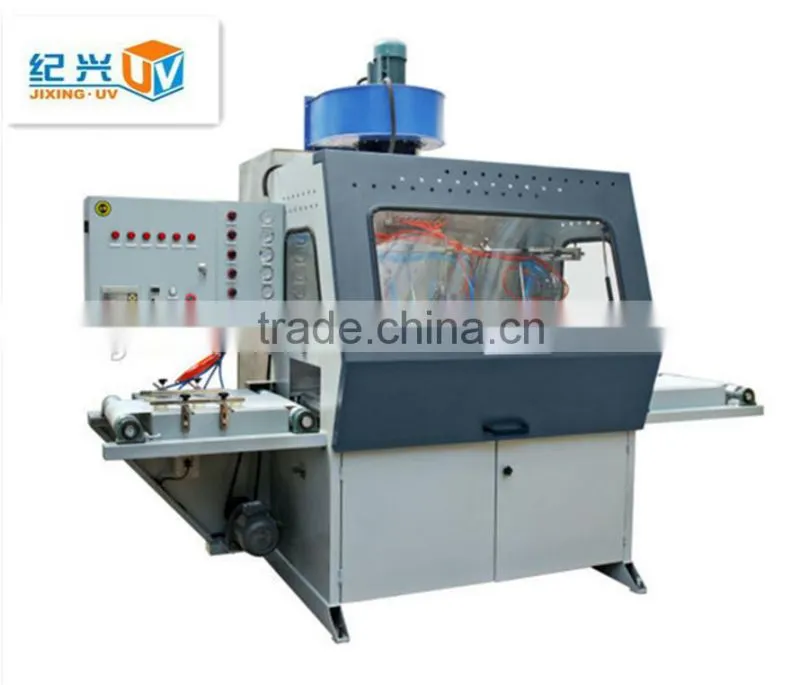

Help CenterHeavy Putty Machine
Related Products
-
Light Lacquer Putty MachineUS$ 8,000 - 11,000MOQ: 1 Set -
Heavy-style Putty Filling MachineUS$ 13,600 - 14,000MOQ: 1 Set
-
Transparent Liquid / Water Bottom UV Coating Spray MachineUS$ 6,000 - 190,000MOQ: 1 Set
-
MDF UV Roller CoaterUS$ 6,000 - 190,000MOQ: 1 Set
-
MDF UV Coating MachineUS$ 6,000 - 190,000MOQ: 1 Set
1. The rubber roller uses imported materials, PU rubber rollers. The diameter is 250mm.
2. The rear smooth roll adopts long smooth rolls with 250mm diameter. The roll surface is plated with chrome. The outer circle is precisely processed through CNC grinding machines.
3. Strong scrapers made of imported materials are adjusted by speed reduction machines with small turbines.
4. The conveying belt is the 3mm PU anti-slip belt. Therefore, it can resist all kinds of solvents and prevent chemical corrosion.
5. The smooth rolls and rubber rollers operate by the independent frequency converter and speed reduction machine.
6. The complete machine is equipped with six units of Taiwan Delta frequency converters and six units of speed reduction machine.
7. The lifting system adopts elevators with dovetail groove style. The speed reducer raises electrically and smoothly, with good stability. The material input is equipped with the far-infrared detector to prevent the entrance of inappropriate materials
8. The complete machine is collocated with a diaphragm pump, a 40L heating fuel tank and a putty funnel.
Equipments required to configurate by customers themselves:
1. 50HZ, 380V three-phase power source.
2. 0.5MPA air source.
Technical Parameter:
Model |
JXFT I1-600 |
JXFT I1-1000 |
JXFT I1-1300 |
Working Width(mm) |
600 |
1000 |
1300 |
Working Thickness(mm) |
2~80 |
2~80 |
2~80 |
FeedingSpeed (m/min) |
5~15 |
5~15 |
5~15 |
Shortest convey Length( mm) |
300 |
300 |
300 |
Rubber Wheel Size |
240×750 |
240×1150 |
240×1450 |
Steel Wheel Size |
150×750 |
150×1150 |
150×1450 |
Filled Roll Size |
240×750 |
240×1150 |
240×1450 |
Convey Power(kw) |
0.75 |
1.5 |
1.5 |
wooden standard carton is suitable for the export and long transportation
Longlife maintenance for the equipments.
Jixingyuan(HK) Industrial Group Ltd.Co. Has set up Shenzhen Jixingyuan Painting Equipment Co.,Ltd., Huainan Jixingyuan Electro Mechanical Equipment Co.,Ltd., Shenzhen Sunshine Plate Industrial Co.,Ltd., Jixingyuan Beijing Branch etc..Our company is well-known and to win a high honors in the filed of painting for the panels,and won the top-ten most influential brands of Chinese Painting Machinery in 2007 year.We obtained the ISO9001 quality management system certification in 2009 year.
Shenzhen Jixingyuan Painting Equipment Co.,Ltd. is specialized in surface coating equipment, roller coating, curtain coating, spray coating production lines of the modern enterprise.It is concerned with production ,marketing and professional services,into the filed of coating equipment manufacturing enterprises for nearly 10 years,with a quality experience.
