105 Degree Thermoplastic Halogen Free Low Smoke Flame Retardant Polyolefin Sheath Compound
halogen free cable compound LSZH insulation material
Reasons you can choose us:
No.1: We have good quality products.
No.2: Advanced production line.
No.3: Advanced text equipment.
No.4: Qualified manufacturer.
No.5: Special package for different products.
Product Description:

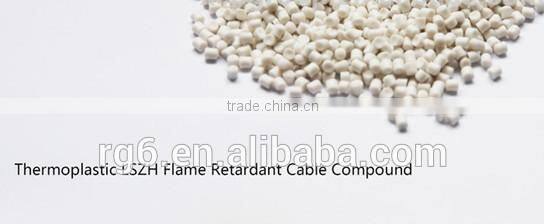

Thermoplastic LSZH flame retardant cable Compound,based on polymers with no halogen, is produced by mixing, plasticizing, granulation with adding halogen-free flame retardants, antioxidants, lubricants, modifiers and etc. The product has halogen-free, low smoke volume, low corrosion, and low toxicity characteristic; also has excellent physical and mechanical properties, flame resistance and extrusion processability. The product is suitable for manufacturing the various cables located in the places which have highly flame retardant requirements.
Type And Application:
Type | Application |
WDZ-J | Insulating Compound for 0.6/1kv and below Wire and Cable(highly flame retardant requirements; the conductor maximum operating temperature is 70 ℃ |
WDZ-H | Jacket Compound for communication cable, control cable, signal cable and power cable(highly flame retardant requirements; the conductor maximum operating temperature is 90 ℃ |
The Typical Value:
| Unit | Typical Value | ||
WDZ-H | WDZ-J | |||
Original Tensile Strength | MPa | 11.5 | 12.5 | |
Original Elongation at Break | % | 250 | 220 | |
Variation on Tensile Strength after Aging | % | +5 | +5 | |
Variation on Elongation at Break after Aging | % | -5 | -5 | |
Thermal Deformation | % | 30 | 28 | |
Impact Brittleness Temperature | ℃ | -27 | -27 | |
Volume Resistivity | Ω.m | 5.0×1011 | 2.0×1012 | |
Dielectric Strength | MV/m | 24 | 24 | |
Smoke Density | Flameless | - | 240 | 240 |
Flame | - | 10 | 10 | |
Oxygen Index | % | 34 | 32 | |
Halogen Acid Gas Content | Mg/g | 3 | 3 | |
PH Value | - | 6.0 | 6.0 | |
Conductivity | us/mm | 5 | 5 | |
Toxicity Index | - | 4 | 4 | |
Our Advantage
All the cables are for export, so we familiar with the foreign customer's request of quantity, there is no customer's complaint during 11 years!
Our factory is small but good, compared with large companies have better price advantage and more flexible payment terms!
We value every customer, pay attention to every order, better service to customers is our goal!
