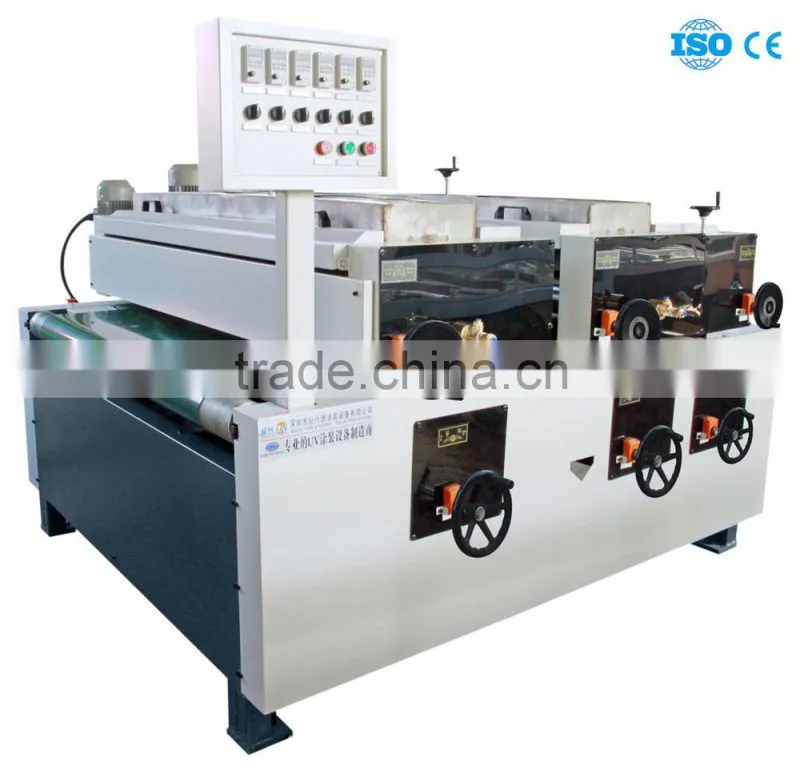

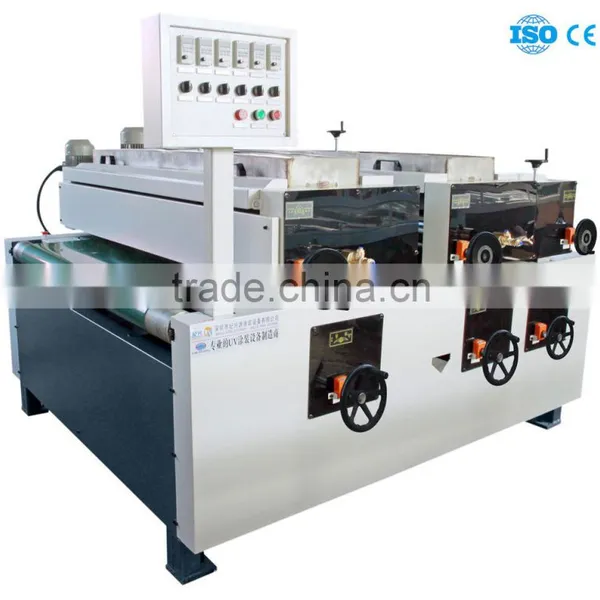

Help Center1000mm Heavy Putty Machine
Related Products
1000mm Heavy Putty machine configuration& parameter
Machine Configuration
1, using imported materials rubber roller rubber roller diameter of 240mm, the roll surface by CNC precision machining.
2, Putty roll with a diameter of 150mm light big roll, chrome roll surface, cylindrical grinder by CNC precision machining.
3, equipped with imported materials scraper strong toughness, by the reducer adjustment, high accuracy.
4, the conveyor belt is imported materials 3mm, solvent, from the floor to prevent the phenomenon, plus anti-deviation device.
5, running light roller and rubber roller by an independent drive and control gear, wherein the spacing between the adjustment screw through a worm machine, driven dovetail mechanism to complete.
6, the bearing sealing structure to prevent the penetration of paint
7, by two rubber rollers and a putty roll composition greatly increases the amount of padding.
8, the entire machine configuration Taiwan Delta converter and three-phase asynchronous motor worm gear.
9, the whole package, a diaphragm pump, a heating oil tank 20L, a putty funnel.
Customers need to take care of themselves with others:
1,50Hz, 380V three-phase power supply.
Machine Parameter
model |
JXFT I-1000 |
model |
JXFT I-1000 |
Effective processing width (mm) |
1000 |
Effective processing speed(mm) |
2~80 |
Minimum processing length (mm) |
300 |
Transmission speed(m/min) |
5~15 |
Coating roll size (mm) |
1150×φ 240 |
Quantitative roller size(mm) |
1150×φ 150 |
Putty roll size(mm) |
1150×φ 240 |
machine size(mm) |
2100×1960×1580 |
Putty roller power(kw) |
1.5 |
Pearl NMRV075-80 series |
Delta converter VFD007M43B |
Transmission power(kw) |
1.5 |
Pearl NMRV075-30 series |
Delta converter VFD015M43B |
Coating roll power(kw) |
1.5 |
Pearl NMRV075-60 series |
Delta converter VFD015M43B |
Quantitative roller power(kw) |
0.75 |
Pearl NMRV050-40 series |
Delta converter VFD007M43B |
Total power(kw) |
13.5 |
|
|
Lift the feed through the worm double dovetail slot synchronization adjustment | |||
Infeed end equipped with infrared sensor (optional) to prevent accidental injury or hand too thick plate | |||
High-strength tool steel blade, with a separate NMRW030-50 series reducer, to ensure the accuracy of the blade angle adjustment | |||
