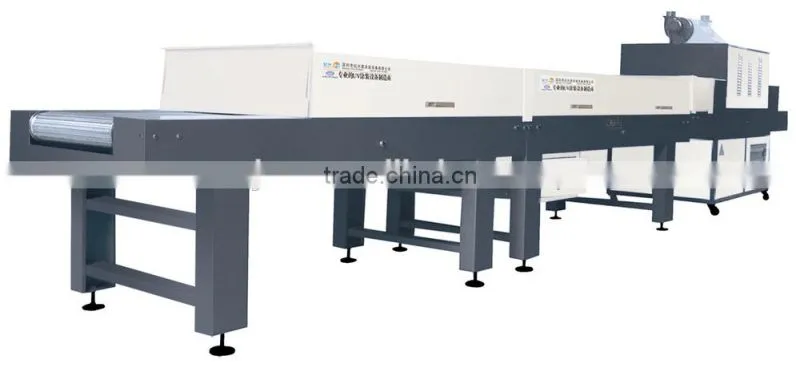

High Quality Infrared Heating Leveling Machine (JXTZ-V-1000)
Description:
1.The machine is widely used for many size of products .
2.Immediately dry , reduce time of waiting , curtail paint line . Finish drying five sides for one time .Height and angle of the light in both side can be adjusted.
3.The whole equipment adopt static painting ,which is beautiful , anti-corrosion and east to clean.
4.The control area use products of Snader from French and Omrong from Japan. Which is sensitive and having a long life.
5.Motor adopt products from Taiwan. The quality is stable.
6.Convey belt is imported.
7.Light source is from UV lamp.
8.Taiwan styled power can save more energy and get a higher working efficiency .
9.The design of non-dust filtrate wind cycle cooling system is more useful for lowering the temperature for UV area . And reduce dust at the same time.
10.Equipped with Heat flowing machine . Much more ensure the lacquer drying effect . Flatter the coating surface and smooth it then improve the efficiency.
Infrared Heating Leveling Machine (JXTZ-V-1000) Specification:
1.The effective painting width is 1000mm, working thickness is 2-80mm, Shortest painting length is 300mm.
2.Convey speed is 5-20m/min, convey power is 0.75kw, fan power is 0.75kw*2, lamp power is 7.2kw*3, side lamp power is 3kw*2. Total power is 30.2kw.
3.The machine's size is 2500*1560*1980(mm).
4.The machine's weight is 1400kg.
