Specifications
Detector with about 10 years long life span can work in all weather and is easy to maintain and low operation consuming
The ROSIM wireless vehicle detection system contains wireless vehicle detectors and wireless access point. This setup is sometimes complemented by a repeater, or several.
Firstly,the wireless vehicle detectors detect vehicles exsitence/driving direction/speed and so on. And then send all the data information wirelessly to wireless access point. Lastly, wireless access point aggregates these data and report key traffic parameters such as presence ,lane occupancy, queue length and so on.
Product Description
Major advantages:
a) Install fast. It is only almost 6 minutes that is needed to install one wireless vehicle detector in the road, after installation, the traffic control could be released immediately;
b) Work all-weather. Bad weather for example heavy fog, snow and rain makes no difference;
c) No damage to the road. There’s no need to cut slots on the road surface and place cables or wires as the installation of loops, but only a tiny hole with the size Φ 120/H 100 mm, which makes WVDs become the most suitable vehicle detecting solution on the city high-way and bridges;
d) About 10 years long life span. With high standard water proof and anti-press characteristics, WVD wireless vehicle detector can even be used in the damaged or distorted roads where loops cannot be installed.
e) Cost saving. You just can use the cement which is about $2 for 3-4 sensors.
f) Easy to maintain. Unlike the loops that are easily to be damaged but difficultly to be repaired, WVD wireless vehicle detector supports firmware updating over the air. No need to re-cut the slots, no more materials needed, and all of what you need is to take almost 10 minutes for the devices wireless updating;
g) Low operation consuming. Due to the ultra-low power design and battery supply solution, WVD wireless vehicle detector’s consumed power is very lower than any other detectors like loops, video, micro-wave etc. in the market. This appears more and more significantly to our environments;
h) Replace loops seamlessly. The same installation position and compatible output signals makes it easily and simply to replace loops in your system directly.
The common type series of WVD sensor are as follows:
Series |
Model |
Presentation |
Application |
F-series |
WVD-13xF |
Flow |
Traffic flow/Guidance |
E-series |
WVD-13xE |
Existence |
Signal light control |
S-series |
WVD-13xS |
Speed |
Speed enforcement/Guidance/Flow |
D-series |
WVD-13xD |
Direction |
Retrograde capture |
Applications:

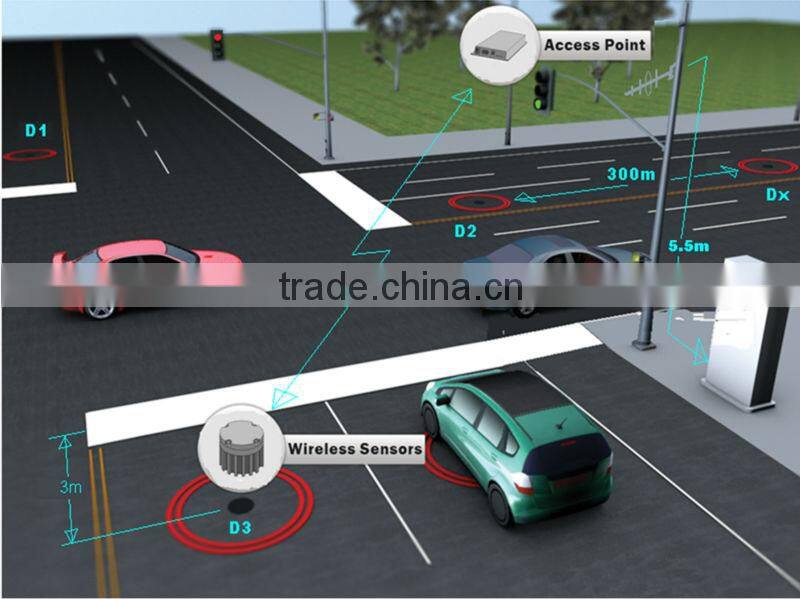

How does it work?
By capture the tiny change of magnetism caused by the passing vehicle, WVDs (Wireless Vehicle Detector) calculate the vehicle velocity, length, type and occupy rate rapidly, and then send these information to the WAPs (Wireless Access Points), which will receive all the on line WVDs’ information and transmit these data to the user systems through RS-232/485, Internet, GPRS, etc..

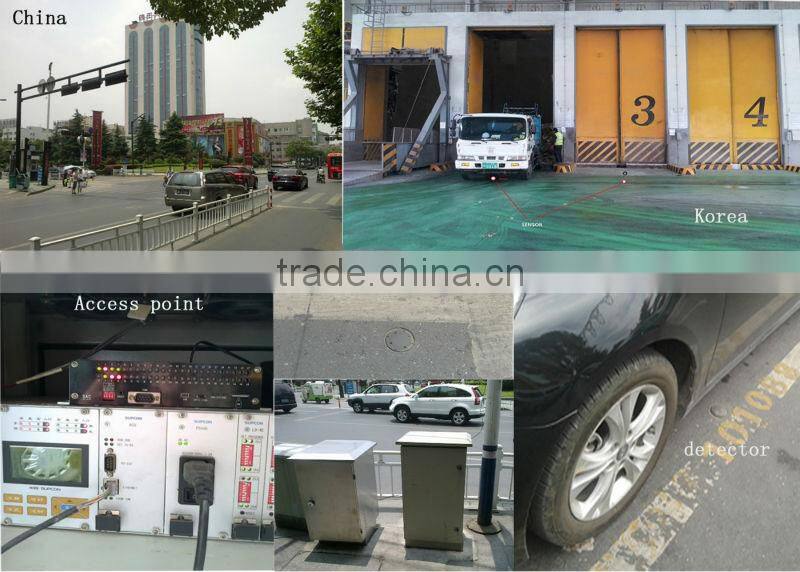

Some projects at home and abroad
Maintenance and Support :
Rosim ITS provides our customers high quality wireless vehicle detecting products and solutions, all the products support wireless updating, which makes it easily
maintained. Also, Rosim ITS provides 24 hours on-line supports .
