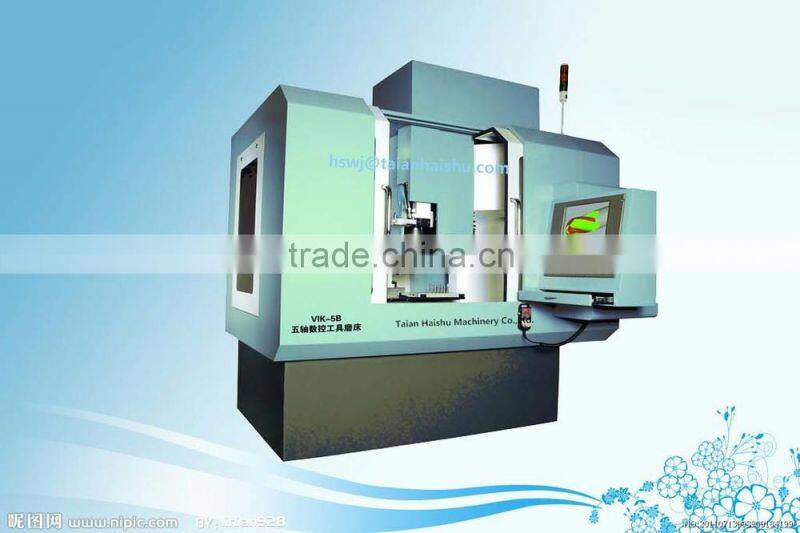

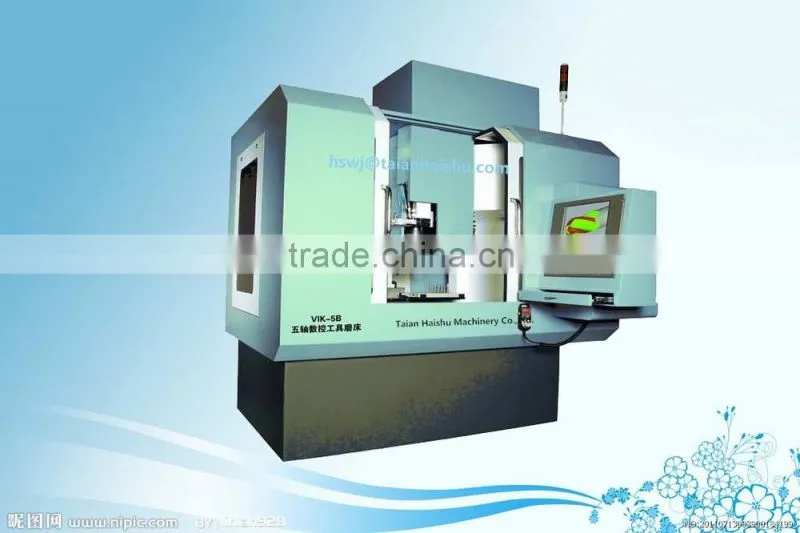

High quality VIK-5B Five-axis CNC tool grinder for reinforcement from haishu software with 2D and 3D presentation capabilities, you can display the complete machining tool shape, avoid arguments
Setting error of the workpiece and machine damage, avoid interfering machine collisions.
The tool can store hundreds of parameters of the model, the production of many types of user-friendly, no need to adjust the machine settings, only
You need to call the appropriate tool for the production model, and convenient.
The machine is simple to set up, without excessive demands on the operator, you can only control the tool parameter input

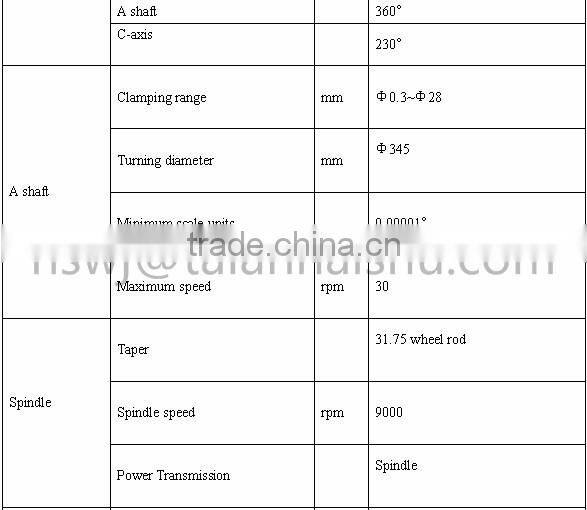

IK-5B technical parameters
|
item |
unite |
values |
|
Itinerary
|
X-axis (left and right
|
mm |
340 |
|
Y-axis (front to back)
|
mm |
290 |
|
|
Z-axis (up and down)
|
mm |
220 |
Mobile |
Three-axis rapid traverse
|
m/min |
15/15/15 |
|
Minimum input unit
|
mm |
0.001 |
|
Motor
|
Spindle power (30 min / continuous)
|
KW |
20~12.5 |
|
Spindle drive system
|
|
Frequency Spindle
|
|
X / Y / Z / A / C-axis power
|
KW |
0.85/0.85/1.3/0.85/1.3 |
|
Feed system drive system
|
|
AC servo
|
|
(JIS) Accuracy
|
Positioning accuracy
|
mm |
0.006 |
|
Repeat accuracy
|
mm |
0.004 |
|
Color
|
Body color
|
|
VIK standard color
|
rail |
Form
|
|
Linear Slides
|
|
Ball
|
XYZ axis diameter
|
mm |
32/32/32 |
|
Fuel tank capacity
|
Cutting fluid box
|
L |
300 |
|
Lubrication system
|
L |
2 |
|
oOther other Qíta
Other
|
Pressure Demand
|
MPA |
0.6 |
|
Power capacity
|
KVA |
30 |
|
Weight
|
Kg |
5000 |
|
Area
|
mm |
2.3X1.65X2.4M |
|
Total weight
|
Kg |
5500 |

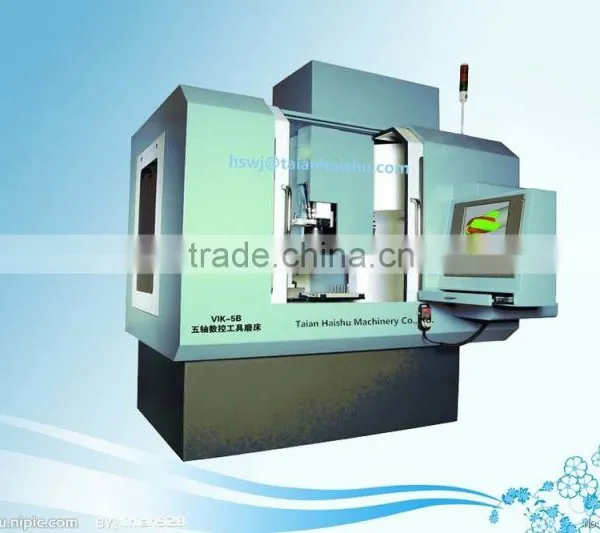

More pictures

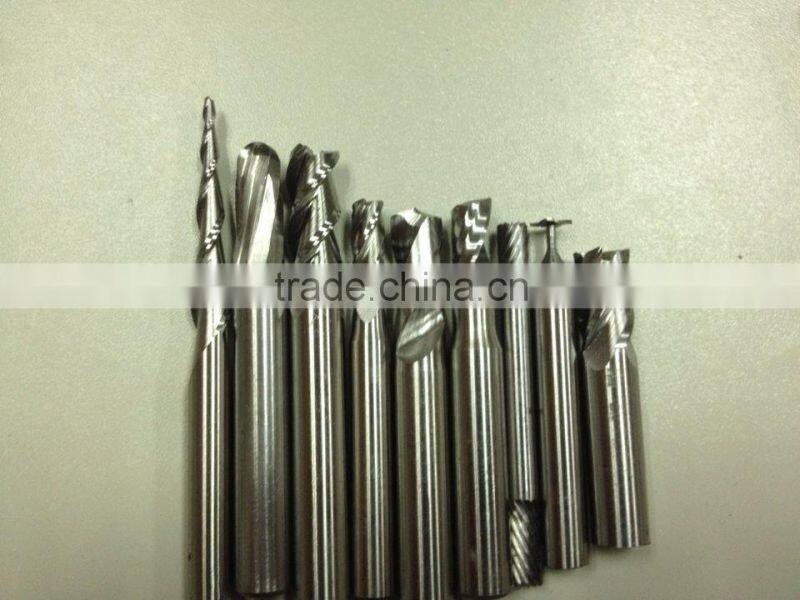

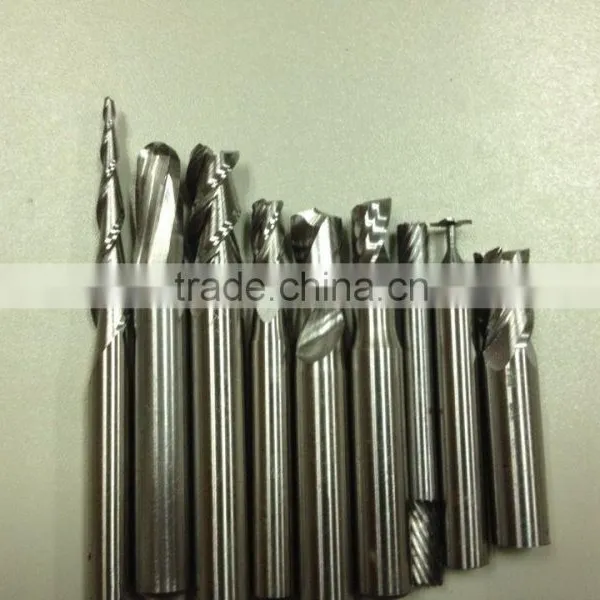

Finished profduct
