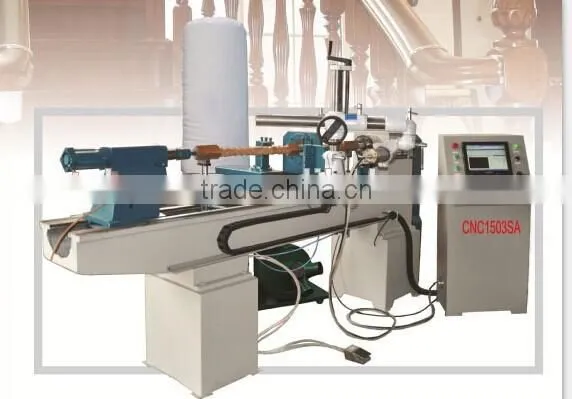

Easy operation and low price CNC1503SA baseball bat cnc wood turning lathe with CE certification
Technical Parameters
Brand name |
Unit |
Technical data |
CNC1503SA | ||
Max processing size |
mm |
Φ300×1500 |
Z-axis maximu moving distance |
mm |
1520 |
|
X-axis maximum one-way moving distance
|
mm |
200 |
|
Main drive form
|
|
Independent spindles, frequency stepless
|
|
Spindle speed range
|
r/min |
0-3500 |
Feeding speed |
mm/min |
3000 |
Chuck diameter |
mm |
Φ160 |
Main motor power |
kw |
4.0 |
Power supply |
|
380V/50HZ |
Dimensions (L * W *H) |
mm |
2700*800*1200 |
Net weight(Kg) |
kg |
1300 |
CNC1503SA wood cnc lathe characteristics
A horizontal flat bed structure;
2, the spindle frequency stepless speed regulation;
3, X / Z-axis stepper drives;
4, bed rail for high-precision gauge;
5, precision ball screws, automatic forced lubrication;
6, duplex turret, roughing, finishing once completed;;
10. The control system uses sophisticated CNC controller, 12-inch color screen, the international standard G-code CNC language, supports a variety of software, support for technology extensions.
11, CNC1503SA wood making lathe five-axis multifunction complete turning, milling, engraving, pull slots and other functions.
Using

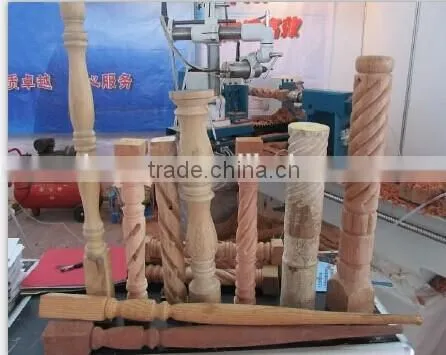

Processing: staircase column, bending round, vases, tables, chairs legs, European furniture Roman, wooden hangers, washbasin and so on; cylindrical, conical, curved, spherical and other complex shapes rotator semi-finished wood products or wood .
The configuration
CNC1503SA CNC wood lathe Standard configuration:
1,12 inch color screen, built-in CNC computer;
2, imported linear guide, precision ball screws;
3, engraving spindle and pull trough multifunction control section;
4, universal swivel joints;
5, the rotation center with the knife (5CM ~ 6CM wooden);
6, pneumatic feeding, automatic centering;
7, pneumatic material thimble;
8, V-type front steel tools;
9, with controls easy to use software, the basic pattern software;
10 randomly accompanied.
Select Configure
1, φ160 four jaw chuck linkage;
2, woodworking special vacuum cleaner;
3,220V constant power frequency spindle control;
Note: Customer-owned gas source, other configurations can be selected according to customer requirements.
