cnc wood machine wood turning machine CNC1503SA wood cnc machine price good
1.Technical Parameters
Brand name |
Unit |
Technical data |
||
CNC1503SA |
CNC1504S |
|||
Max processing size |
mm |
F300 *1500 |
F400*1500 |
|
|
Z-axis maximum moving distance
|
mm |
1520 1500 |
||
|
X-axis maximum one-way moving distance
|
mm |
200 |
250 |
|
|
Main drive form
|
|
Independent spindles, frequency stepless
|
||
|
Spindle speed range
|
r/min |
0-3500 |
||
Feeding speed |
mm/min |
3000 |
||
Chuck diameter |
mm |
Φ160 |
||
Main motor power |
kw |
5.0 4.0 |
||
Power supply |
|
380V/50HZ |
||
Dimensions (L * W *H) |
mm |
2700×800×1200 2700×700×1300 |
||
Net weight(Kg) |
kg |
1300 1200 |
||
2.. the characteristics
1. horizontal flat bed structure;
2, the spindle frequency stepless speed regulation;
3, X / Z-axis stepper drives;
4, bed rail for high-precision gauge;
5, precision ball screws, automatic forced lubrication;
6, duplex turret, roughing, finishing once completed;;
7.The control system uses sophisticated CNC controller, 12-inch color screen, the international standard G-code CNC language, supports a variety of software, support for technology extensions.
3. use

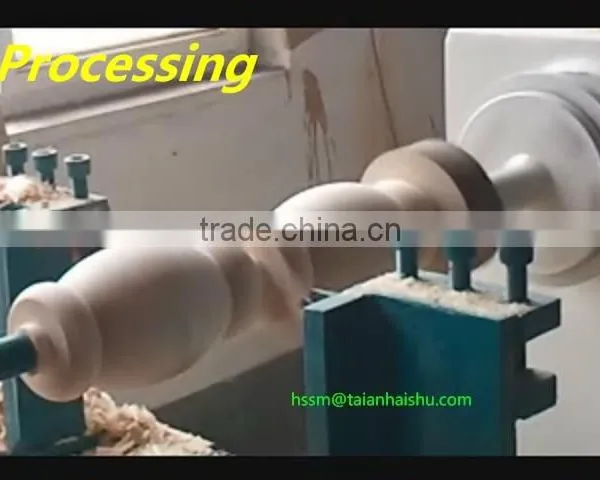

Processing: staircase column, bending round, vases, tables, chairs legs, European furniture Roman, wooden hangers, washbasin and so on; cylindrical, conical, curved, spherical and other complex shapes rotator semi-finished wood products or wood .
4 the configuration
Standard configuration:
1,12 inch color screen, built-in CNC computer;
2, imported linear guide, precision ball screws;
3, the rotation center with the knife (5CM wooden, 6CM wooden);
4, pneumatic feeding, automatic centering;
5, pneumatic material thimble;
6, V-type front steel tools;
7, Pneumatic pressing thimble
8. V type high speed steel tool
5.Select Configure
1, φ160 four jaw chuck linkage;
2, woodworking special vacuum cleaner;
3,220V constant power frequency spindle control;
Note: Customer-owned gas source, other configurations can be selected according to customer requirements.
GUARANTEE AND AFTER-SALE SERVICES:
1.one year guarantee for whole machine except of CNC system, which guarantee is three years
2.24-hours technical support by E-mail or telephone
3.User-friendly English software or Russian or Spanish, Users manuals and Detailed Videos/CD
4.Provide extra accessories for the machine
5.Also provide service of make program according to your drawings
6.Customized or special design is OK.
If you are interested in our products, welcome to leave a message or send the inquiry to understand the details of machine.
