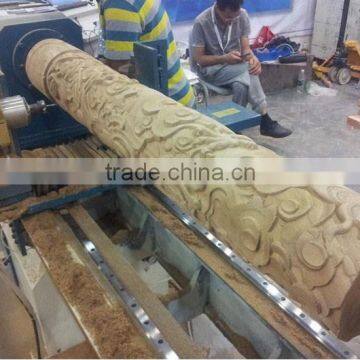

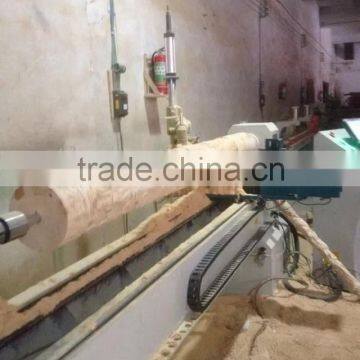

CNC2504SA CNC Woodworking Lathe Machine With Double Turning Tools and Multi-function

Specifications

380V, 220V CNC2504SA CNC woodworking Lathe processing:: staircase column, bending round, vases, tables, chairs legs, and so

Technical Parameters

The characteristics

1.horizontal flat bed structure;

2, the spindle frequency stepless speed regulation;

3, X / Z-axis stepper drives;

4, bed rail for high-precision gauge;

5, precision ball screws, automatic forced lubrication;

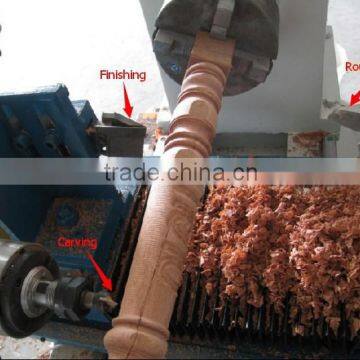

6, duplex turret, roughing, finishing once completed;;

7. The control system uses sophisticated CNC controller, 12-inch color screen, the international standard G-code CNC language, supports a variety of software, support for technology extensions.

8, five-axis multifunction complete turning, milling, engraving, pull slots and other functions.

CNC2504SA   woodworking Lathe  machine   Use

Processing: staircase column, bending round, vases, tables, chairs legs, European furniture Roman, wooden hangers, washbasin and so on; cylindrical, conical, curved, spherical and other complex shapes rotator semi-finished wood products or wood .

The configuration

Standard configuration:

1,12 inch color screen, built-in CNC computer;

2, imported linear guide, precision ball screws;

3, engraving spindle and pull trough multifunction control section;

4, universal swivel joints;

5, the rotation center with the knife (5CM ~ 6CM wooden);

6, pneumatic feeding, automatic centering;

7, pneumatic material thimble;

8, V-type front steel tools;

9, with controls easy to use software, the basic pattern software;

10 randomly accompanied.

 Select Configure

1, φ160 four jaw chuck linkage;

2, woodworking special vacuum cleaner;

3,220V constant power frequency spindle control;

Note: Customer-owned gas source, other configurations can be selected according to customer requirements.

Taian Haishu Company,We can supply the top quality products at the most favouriable price.

Looking forward to your specific inquiries.
