Technical Parameters
Brand name | Unit | Technical data |
CNC2504SA | ||
Max processing size | mm | T400*2500 |
Z-axis maximu moving distance | mm | 2550 |
X-axis maximum one-way moving distance
| mm | 250 |
Main drive form
|
| Independent spindles, frequency stepless
|
Spindle speed range
| r/min | 0-3500 |
Feeding speed | mm/min | 3000 |
Chuck diameter | mm | Φ160 |
Main motor power | kw | 5.5 |
Power supply |
| 380V/50HZ |
Dimensions (L * W *H) | mm | 3750×1400×1700 |
Net weight(Kg) | kg | 1800 |
The characteristics
A horizontal flat bed structure;
2, the spindle frequency stepless speed regulation;
3, X / Z-axis stepper drives;
4, bed rail for high-precision gauge;
5, precision ball screws, automatic forced lubrication;

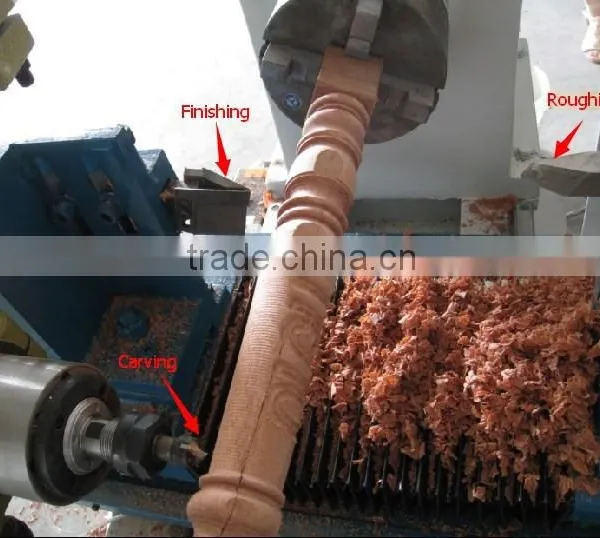

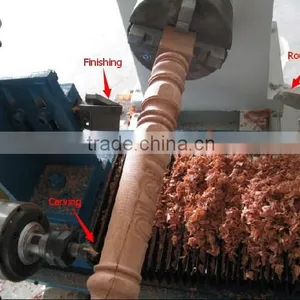

6, duplex turret, roughing, finishing once completed;;
10. The control system uses sophisticated CNC controller, 12-inch color screen, the international standard G-code CNC language, supports a variety of software, support for technology extensions.
11, five-axis multifunction complete turning, milling, engraving, pull slots and other functions.
Use

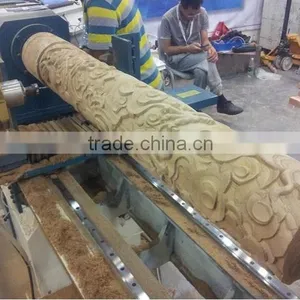

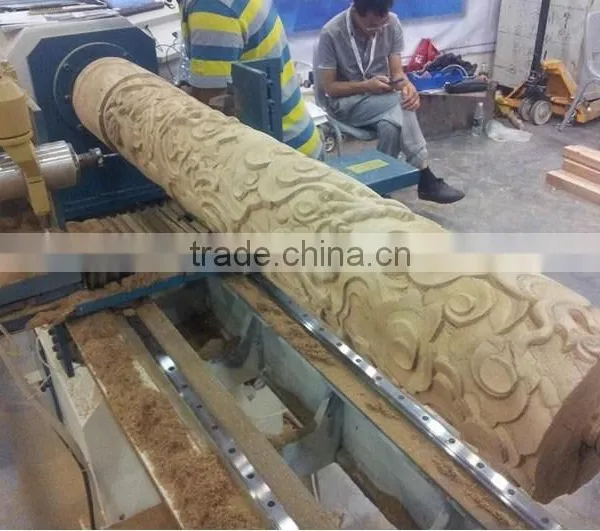

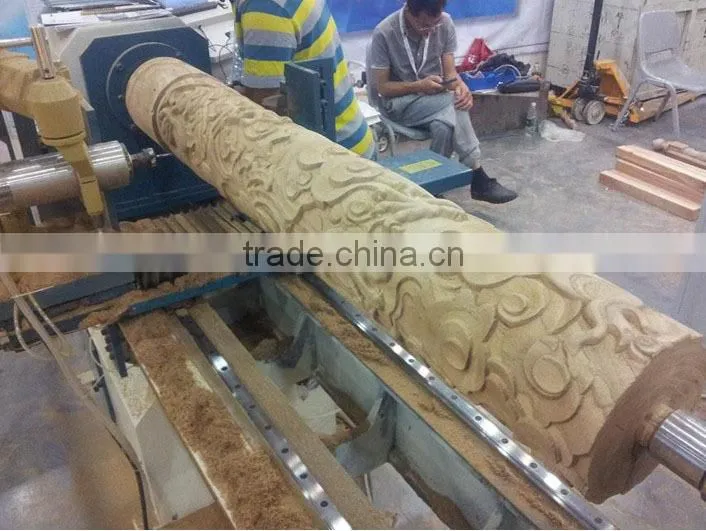

Processing: staircase column, bending round, vases, tables, chairs legs, European furniture Roman, wooden hangers, washbasin and so on; cylindrical, conical, curved, spherical and other complex shapes rotator semi-finished wood products or wood .
The configuration
Standard configuration:
1,12 inch color screen, built-in CNC computer;
2, imported linear guide, precision ball screws;
3, engraving spindle and pull trough multifunction control section;
4, universal swivel joints;
5, the rotation center with the knife (5CM ~ 6CM wooden);
6, pneumatic feeding, automatic centering;
7, pneumatic material thimble;
8, V-type front steel tools;
9, with controls easy to use software, the basic pattern software;
10 randomly accompanied.
Select Configure
1, φ160 four jaw chuck linkage;
2, woodworking special vacuum cleaner;
3,220V constant power frequency spindle control;
Note: Customer-owned gas source, other configurations can be selected according to customer requirements.
Taian Haishu Company,We can supply the top quality products at the most favouriable price.
Looking forward to your specific inquiries.
Taian Haishu Machinery Co.,Ltd.
Add: Shankou Industeial Park,Shandong,China
Tel:0086-538-8606989
Fax:0086-538-8606949
Mobile phone:0086-13562857553
Skype:smsm741230
