Technologically Advanced CNC Lathe Aluminum Wheel Surface Repair CK6187W

Technologically Advanced CNC Lathe Aluminum Wheel Surface Repair CK6187W thumbnail-1
Technologically Advanced CNC Lathe Aluminum Wheel Surface Repair CK6187W thumbnail-2
Technologically Advanced CNC Lathe Aluminum Wheel Surface Repair CK6187W thumbnail-3
Technologically Advanced CNC Lathe Aluminum Wheel Surface Repair CK6187W thumbnail-4
Technologically Advanced CNC Lathe Aluminum Wheel Surface Repair CK6187W thumbnail-5
Technologically Advanced CNC Lathe Aluminum Wheel Surface Repair CK6187W thumbnail-6
Technologically Advanced CNC Lathe Aluminum Wheel Surface Repair CK6187W photo-1
Technologically Advanced CNC Lathe Aluminum Wheel Surface Repair CK6187W photo-2
Technologically Advanced CNC Lathe Aluminum Wheel Surface Repair CK6187W photo-3
Technologically Advanced CNC Lathe Aluminum Wheel Surface Repair CK6187W photo-4
Technologically Advanced CNC Lathe Aluminum Wheel Surface Repair CK6187W photo-5
Technologically Advanced CNC Lathe Aluminum Wheel Surface Repair CK6187W photo-6
US$ 10,000 - 25,000 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Type:
Horizontal
CNC or Not:
CNC
Contact Supplier Request Quote Chat Now
Taian Haishu Machinery Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Qing Dao
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Condition New
Type Horizontal
CNC or Not CNC
Automatic Grade Automatic
Max. Swing Diameter 870mm
Place of Origin Shandong, China
Brand Name HaiShu
Model Number CK6187W
Voltage 220V/380V
Power(W) 7.5kw
Dimension(L*W*H) 2650*1750*2050mm
Weight 3500kg
Certification CE ISO
After-sales Service Provided Engineers available to service machinery overseas

Technologically advanced CNC lathe aluminum wheel surface repair CK6187W



CK6187W Wheel CNC lathe

1.Technical parameters

Project name

Unit

Technical paramaters

Max. turning diameter over the bed

Inch

34”(φ870mm)

Machining diameter of the wheel

Inch

Manual chuck

5"~24"

16"~28”(Optional)

Automatic chuck(Optional)

16"~26"

Max. machining length of the workpiece



mm

750

Max. measured depth of the probe

mm

50

Max. machining depth of the tool

mm

50

Machning accuracy



IT6-IT7

Surface roughness

um

Ra0.8~0.1

Main transmission form



Independent spindle;

frequency conversion stepless

Range of spindle speed

rpm

150~2000

Main motor power

kw

7.5

Fast-moving feed

mm/min

X - axis:5000   Z - axis:8000

Repeat positioning accuracy

mm

X - axis:0.01    Z - axis:0.015

Standard accessories



4 station electric tool

Repeat positioning accuracy(mm)

mm

0.008

Section of turning tool(mm)

mm

25×25

The size of the machine

(L×W×H)

mm



2650*1750*2050mm

Net weight of the machine(kg)

3500
  1. Main features

1.Achieve the wheel surface profile measurement and data collection and Program Optimization,

2.Automatic precision repair and machining in accordance with the curve of the wheel surface

3.Spindle frequency stepless speed;

4.X / Z axis servo drive;

5.Manual jaw self-centering chuck;

6.Machine guard full protection;

7.Automatic oil lubrication.

  1. Uses

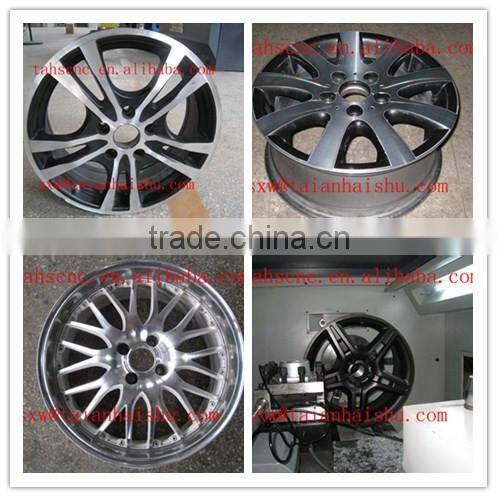

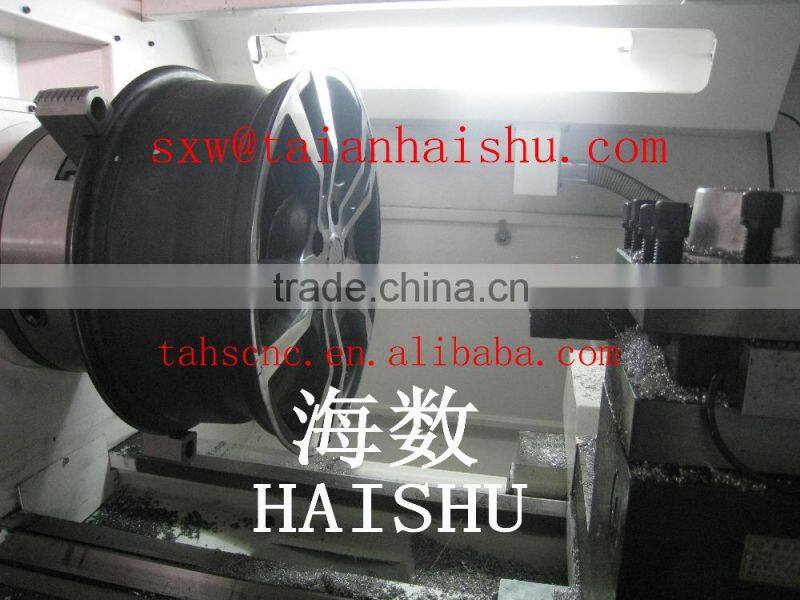

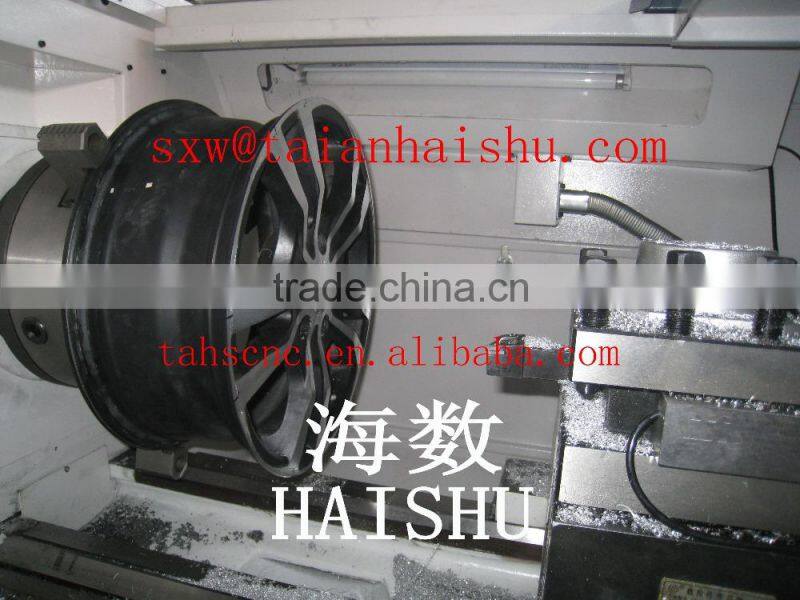

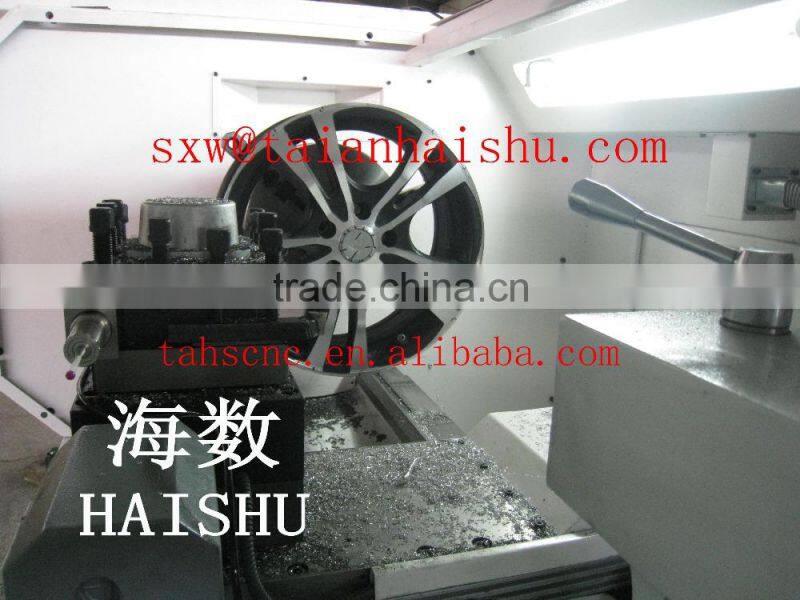

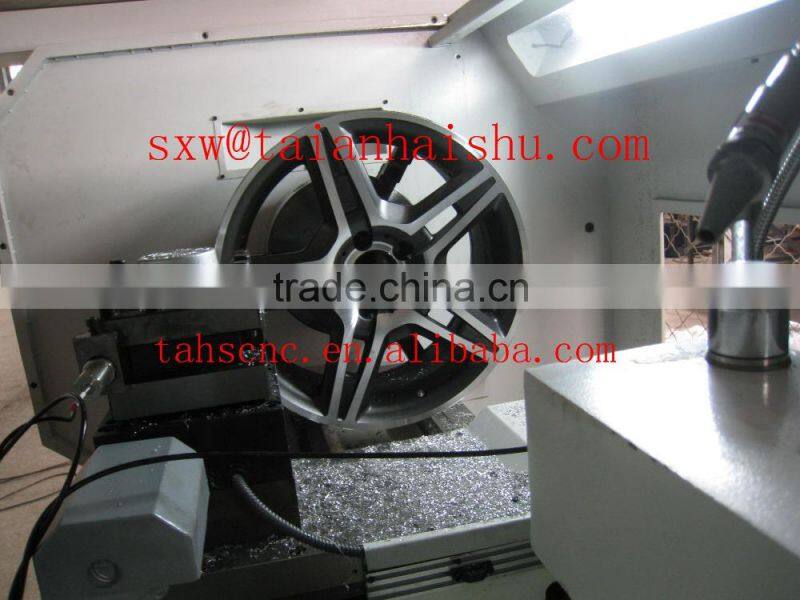

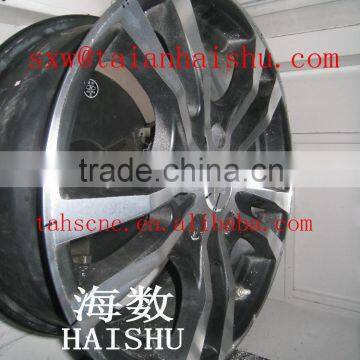

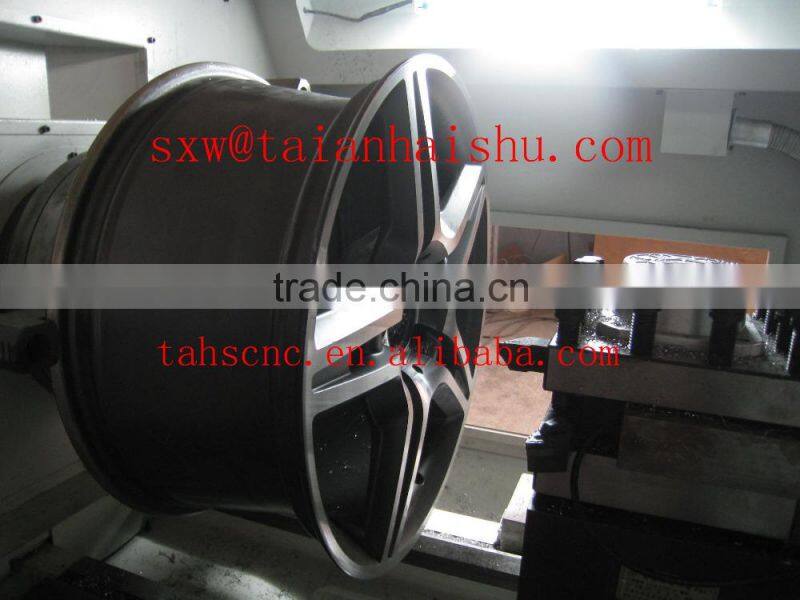

1.The machine tool suitable for High-precision turning and repair processing for surface of car wheel.

2.The machine tool has also the function of the general CNC lathes .
