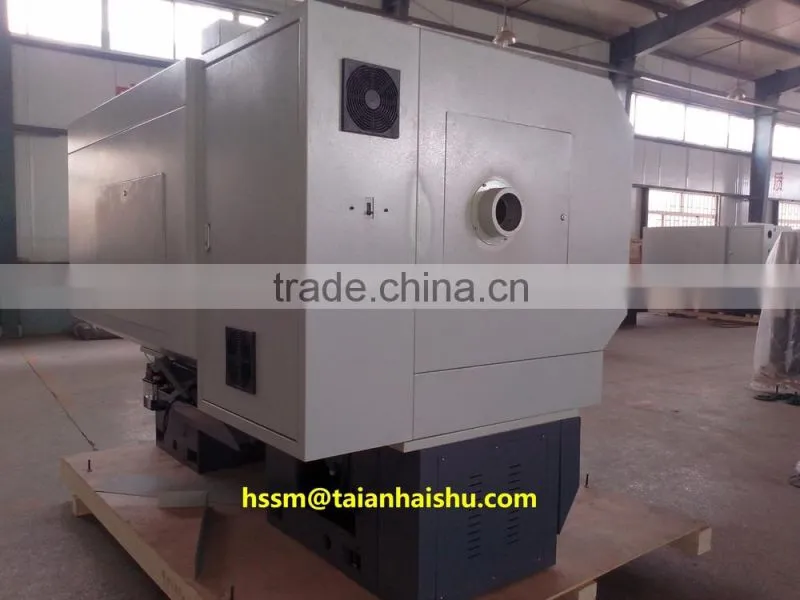

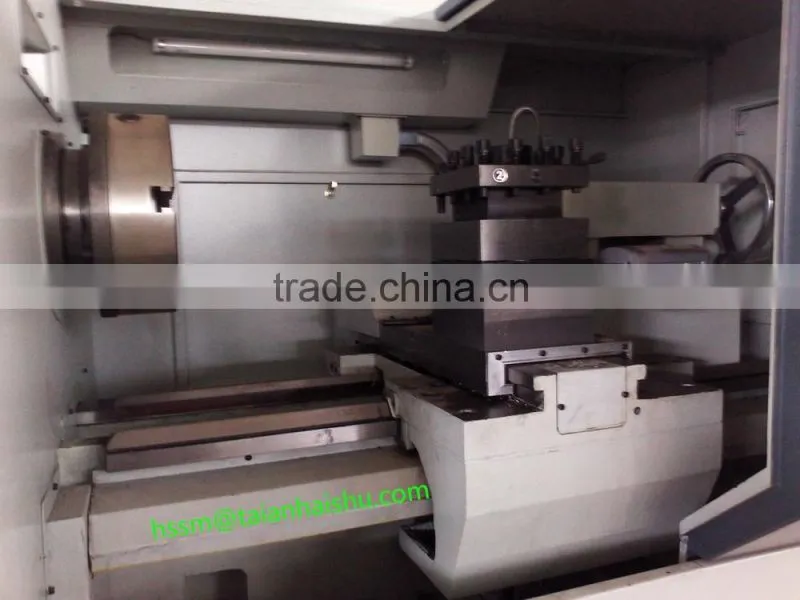

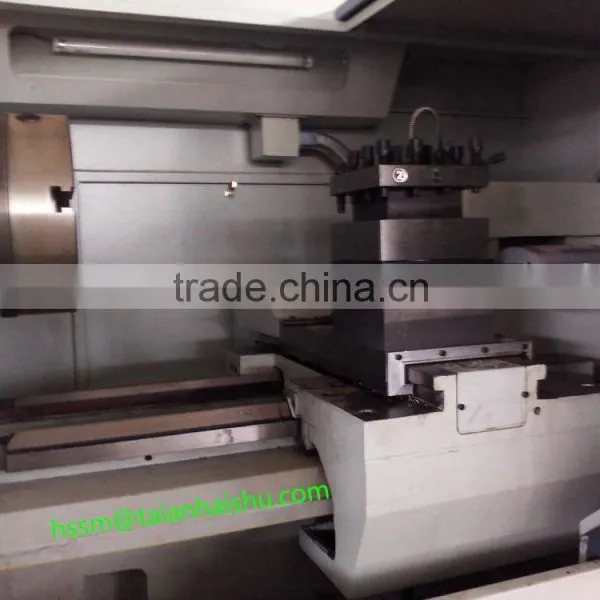

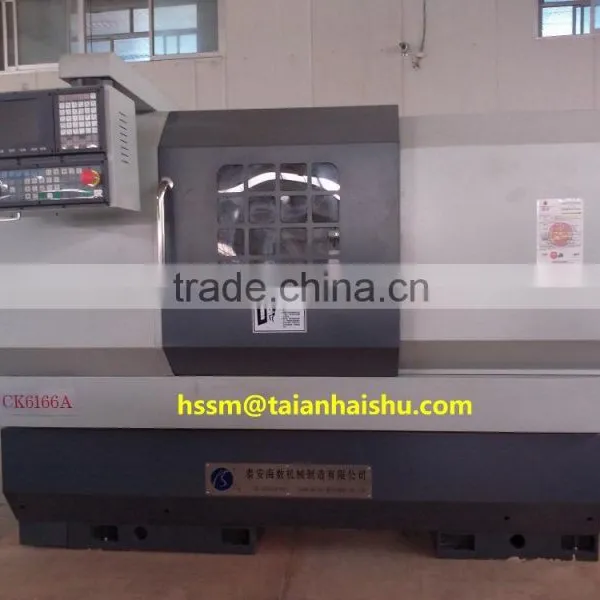

cnc machine for alloy wheels CK6166A car wheel repair lathe
- 50 Set / Sets per Month
- QINGDAO
- T/T Credit Card
- CK210B Small CNC Lathe, Siemens CNC, training cnc, cnc trainer, school cnc, training cnc
- CK210B Small CNC Lathe, servo motor, training cnc, cnc trainer, school cnc, training cnc
- CK210B Small CNC Lathe, servo motor, training cnc, cnc trainer, school cnc, training cnc
- TP 35/45 Series Parallel Double Spindle Turning Center
- WF-450QTN Line Rail Inclined Bed Turret Lathe
- Prototype CNC Lathe ,CNC Turning Lathe Machines,mini lathe,CNC lathe,rolling cnc milling,hobby cnc lathe,DIY CNC lathe
Product Details
Condition: | New | Type: | Horizontal | CNC or Not: | CNC |
Automatic Grade: | Automatic | Max. Swing Diameter: | 660mm | Place of Origin: | Shandong, China |
Brand Name: | HAISHU | Model Number: | CK6166A | Voltage: | 380v |
Power(W): | 7.5KW | Dimension(L*W*H): | 2300x1750x1780(mm) | Weight: | 3000KG |
Certification: | ISO9001:2008,CE | After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description

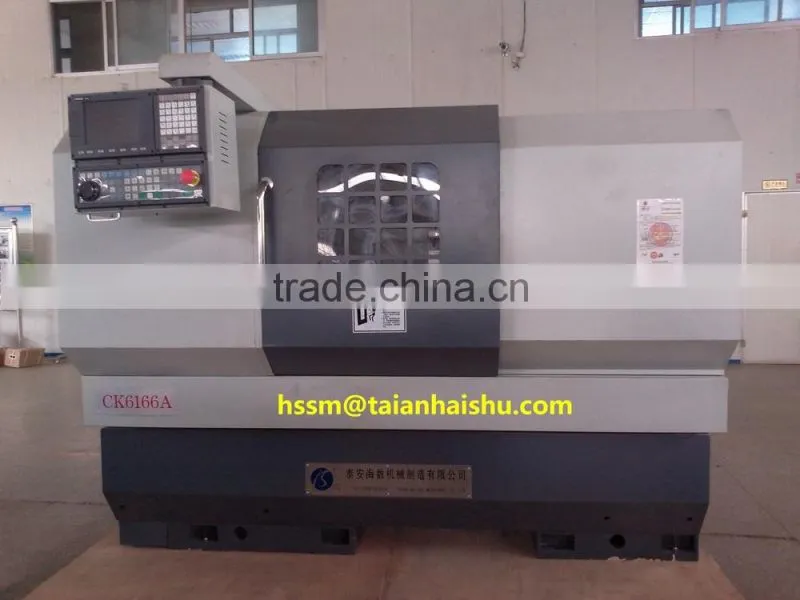

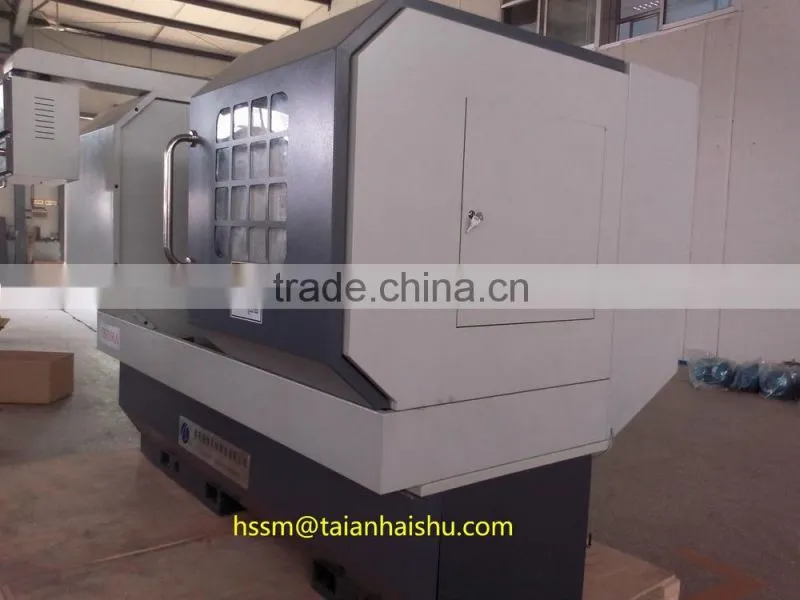

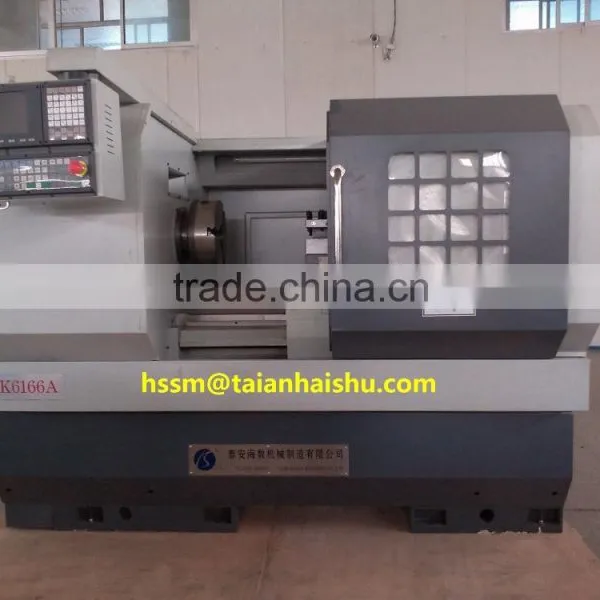

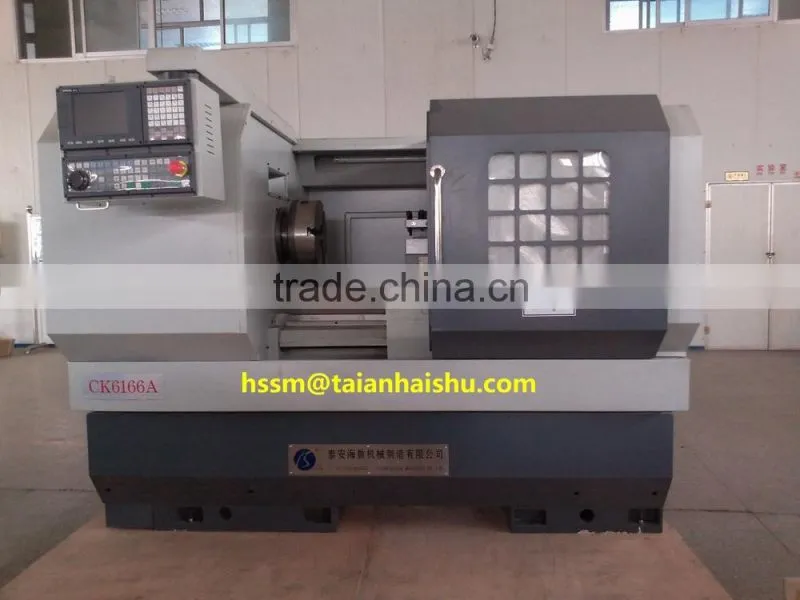

cnc machine for alloy wheels CK6166A car wheel repair lathe
1.Technical parameters
Project name | Unit | Technical paramaters |
Max. turning diameter over the bed
| Inch | 26”(φ660mm) |
Machining diameter of the wheel | Inch | Manual chuck 5"~20" 12"~22”(Optional) Automatic chuck(Optional) 12"~18" |
Max. machining length of the workpiece | mm | 750 |
Max. measured depth of the probe | mm | 100 |
Max. machining depth of the tool | mm | 100 |
Machning accuracy |
| IT6-IT7 |
Surface roughness | um | Ra0.8~0.1 |
Main transmission form |
| Independent spindle; frequency conversion stepless |
Range of spindle speed | rpm | 150~2000 |
Main motor power | kw | 7.5 |
Fast-moving feed | mm/min | X - axis:5000 Z - axis:8000 |
Repeat positioning accuracy | mm | X - axis:0.01 Z - axis:0.015 |
Standard accessories |

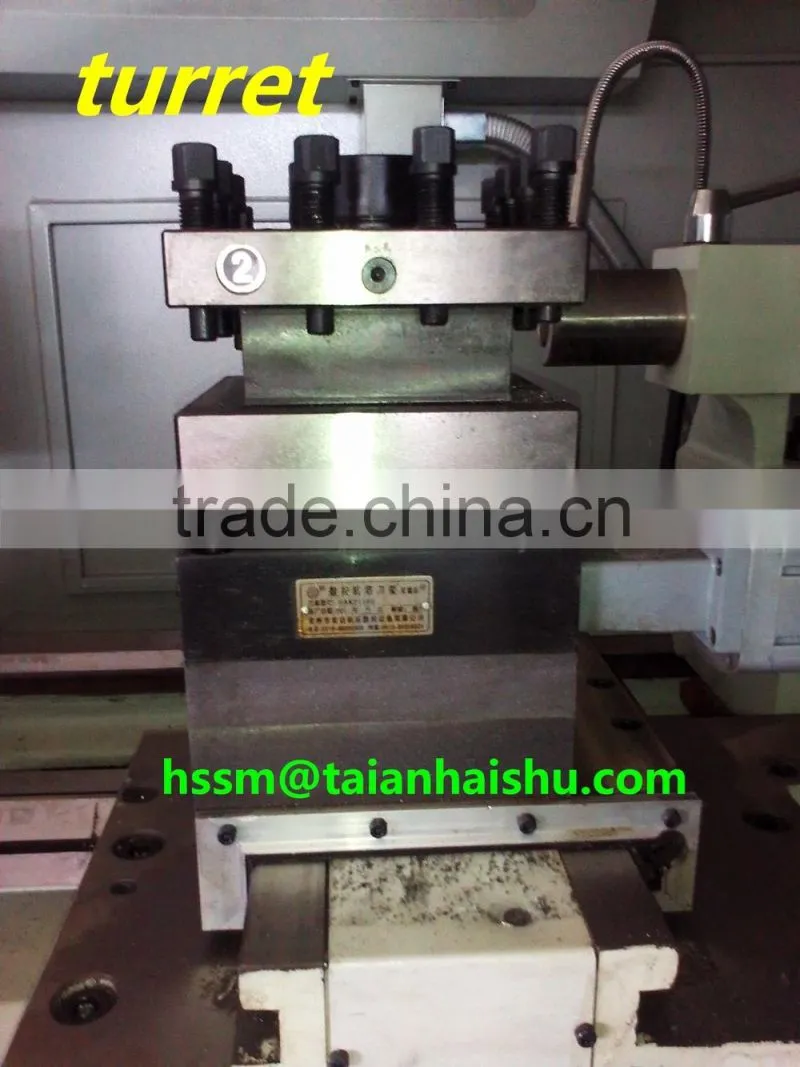

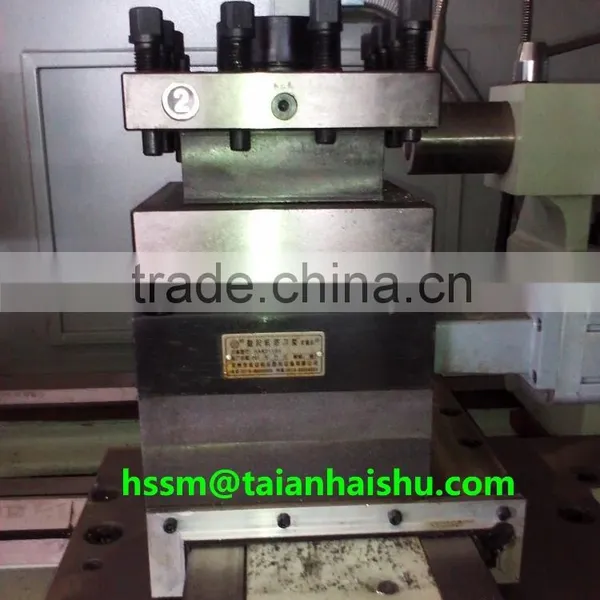

| 4 station electric tool |
Repeat positioning accuracy(mm) | mm | 0.008 |
Section of turning tool(mm) | mm | 25×25 |
The size of the machine (L×W×H) | mm
| 2300×1750×1780 |
Net weight of the machine(kg) | 3000 |
2. Main features
1.Achieve the wheel surface profile measurement and data collection and Program Optimization,
2.Automatic precision repair and machining in accordance with the curve of the wheel surface
3.Spindle frequency stepless speed;
4.X / Z axis servo drive;
5.Manual jaw self-centering chuck;
6.Machine guard full protection;
7.Automatic oil lubrication.
3. Uses
1.The machine tool suitable for High-precision turning and repair processing for surface of car wheel.
2.The machine tool has also the function of the general CNC lathes .

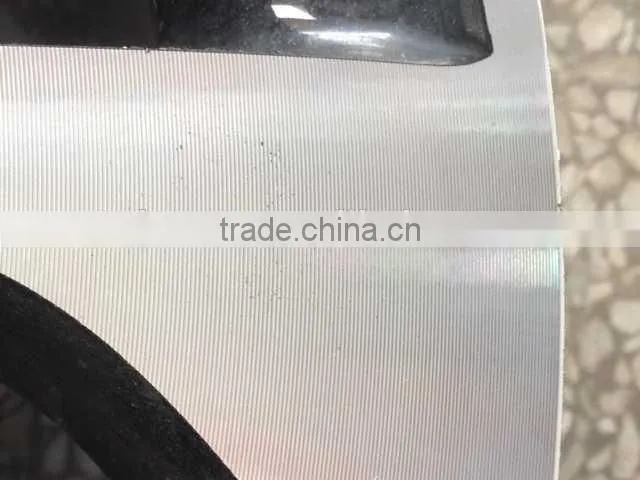

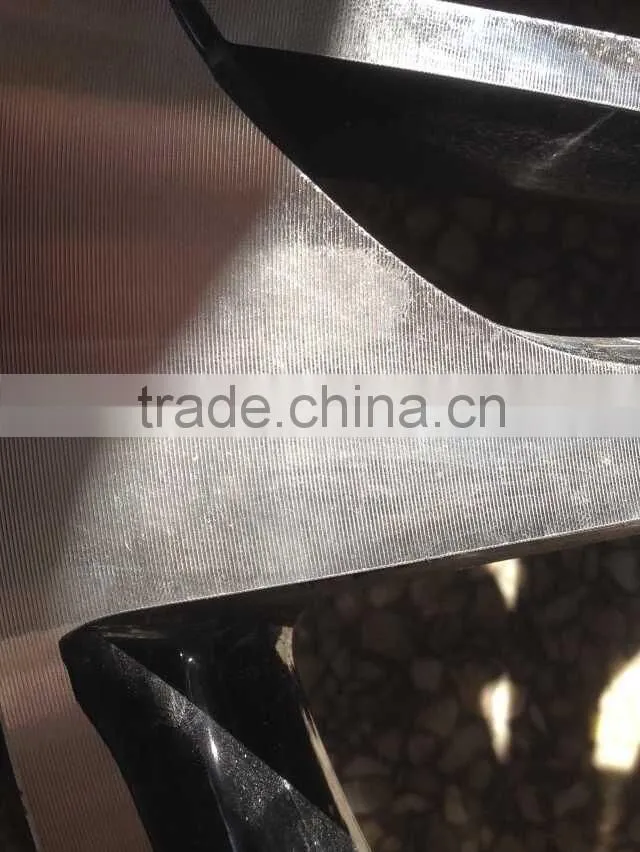

Wheel wire drawing effect
our wheel repair lathe is very mature product, and a series of products, including CK6166A, CK6180A, CK6180W, CK6187W, CK6190W, to meet the different requirements of different customers, If you are interested in cnc machine for alloy wheels CK6166A car wheel repair lathe, welcome to leave a message or send the inquiry to understand the details of machine.
GUARANTEE AND AFTER-SALE SERVICES:
1.one year guarantee for whole machine .
2.24-hours technical support by E-mail or telephone
3.User-friendly English software or Russian or Spanish, Users manuals and Detailed Videos/CD
4.Provide extra accessories for the machine
5.Also provide service of make program according to your drawings
6.Customized or special design is welcome.
