Home > Metallurgy, Mineral & Energy > Steel & Products > Steel Pipe & Tube > ERW HFW HFI Welded Steel Pipe According With ASTM A53 Gr.D

ERW HFW HFI Welded Steel Pipe According With ASTM A53 Gr.D

US$ 400 - 800 MOQ: 2 Tons

Key Specifications

Get Latest Price

Standard:

Thickness:

0.3, 22

Section Shape:

Round

Contact Supplier Request Quote Chat Now

Hunan Fushun Metal Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

SHANGHAI

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Thickness 0.3, 22

Section Shape Round

Outer Diameter 6 - 660 mm

Place of Origin Hubei, China

Secondary Or Not Non-secondary

Application Other, Liquid and Gas pipe

Technique ERW

Certification Other

Surface Treatment Galvanized

Alloy Or Not Non-alloy

Product Description

Application:

ASTM A53 Gr.D ERW/HFW/HFI Welded Steel Pipe Used for construction of long distance pipelines for combustible liquids and gases, nuclear station pipelines, heating system pipelines, general-purpose pipelines, vessels manufacturing, mechanical engineering and instrumental engineering.

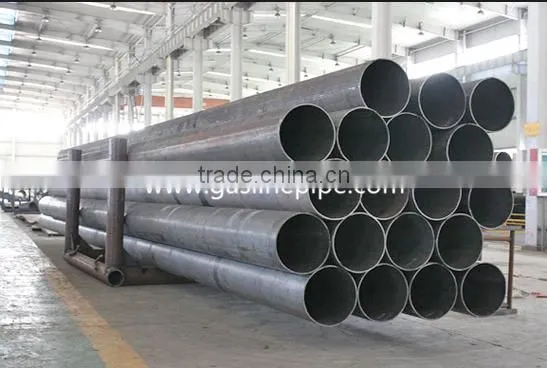

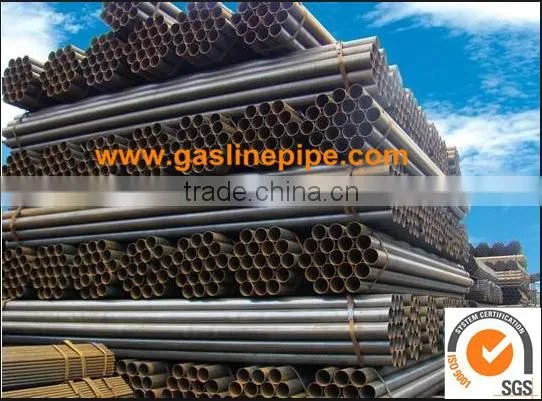

Detailed Image

Specifications

Good quality low price Alloy Steel Pipes for Refinery Service

1. good quality

2. best and competitive price

3. professional services

Standard	ASTM A53
Grade	Gr. D
O.D.	6mm-660mm
W.T.	0.3mm-22mm
Length	6mtr-20mtr
Coating Standard	ANSI/AWWA C104/A21.4 American National Standard for Cement-Mortar Lining for Ductile-Iron Pipe and Fittings for Water
	ISO 21809 Petroleum and natural gas industries — External coatings for buried or submerged pipelines used in pipeline transportation systems
	DIN 30670 Polyethylen coatings of steel pipes and fittings
End	square ends (straight cut, saw cut, and torch cut);
End	beveled for welding (All line piping is square cut to the tolerance specified and bevelled to ANSI B16.25. An angle of 30º (-0º, +5º) and a landing of 1,6 mm, ±0,8 mm is applied. Schedule 160 material is supplied without bevelling.)
Surface	Lightly oiled, Hot dip galvanized, Electro galvanized, Black, Bare, Varnish coating/Anti rust oil, Protective Coatings (Coal Tar Epoxy, Fusion Bond Epoxy, 3-layers PE)
Packing	Plastic plugs in both ends, Hexagonal bundles of max. 2,000kg with several steel strips, Two tags on each bundle, Wrapped in waterproof paper, PVC sleeve, and sackcloth with several steel strips, Plastic caps.
Test	Chemical Component Analysis, Mechanical Properties (Ultimate tensile strength, Yield strength, Elongation), Technical Properties (Flattening Test, Bending Test, Hardness Test, Blow Test, Impact Test, etc.), Exterior Size Inspection, Hydrostatic Test(The standard pressure is limited to 20,7 MPa (3000 psi)), X-ray Test.
Mill Test Certificate	EN 10204/3.1B
Third party inspection	SGS, BV, Lloyds etc.
