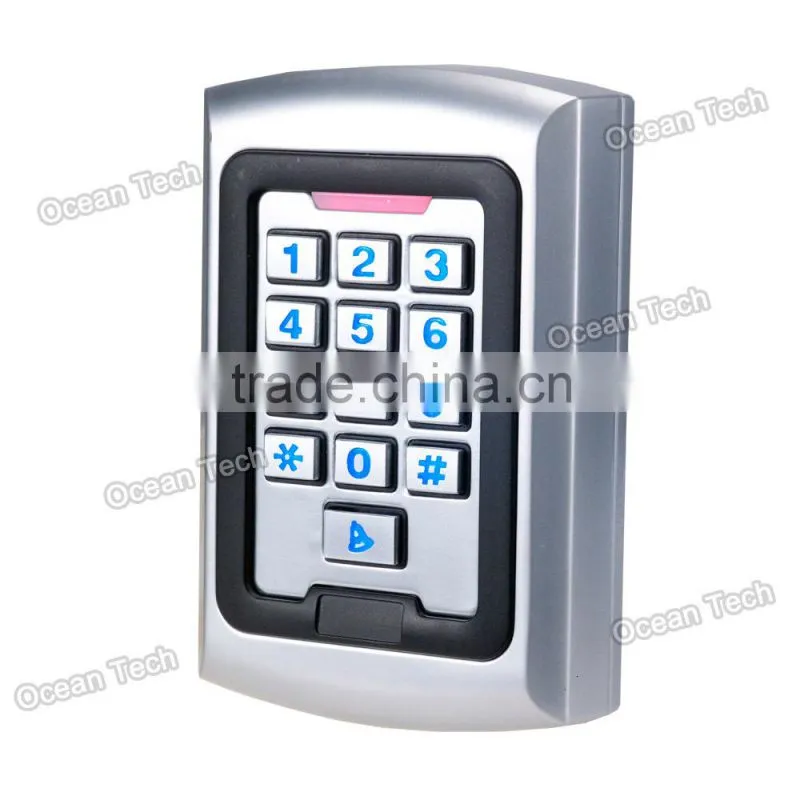

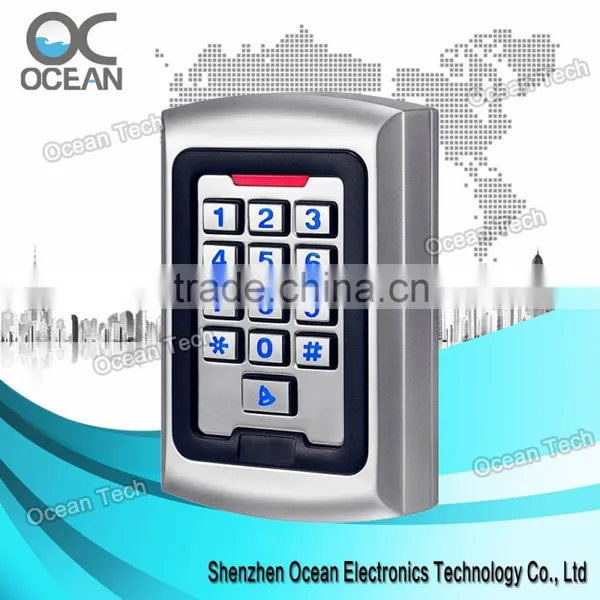

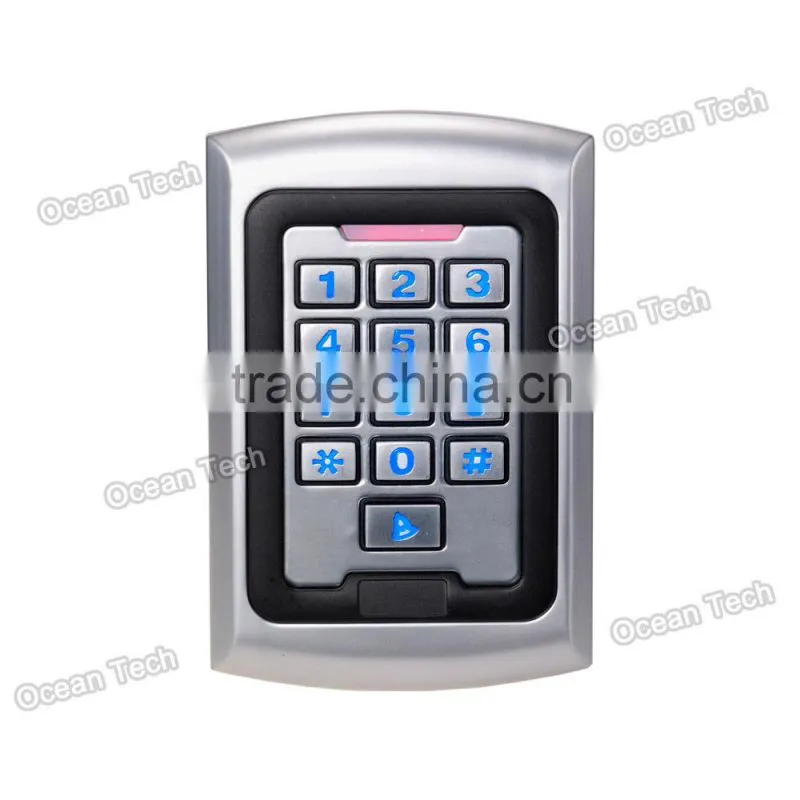

Help CenterSingle Door Mini Access Control System Metal Access Control Keypad
Related Products
-
Waterproof Metal Proximity 13.56Mhz Ic MF Card Access Control ReaderNegotiableMOQ: 1 Piece -
Fingerprint Reader for Government /biometric Scanner OC057-2-10 for Bank ,government,school,hospitalNegotiableMOQ: 1 Set
-
OEM Biometric Attendance Finger PrintNegotiableMOQ: 1 Set
-
Time Attendance Finger Print Reader Attendance Machine OC057-2-7NegotiableMOQ: 1 Set
-
Best Price and Good Service Finger Print ReaderNegotiableMOQ: 1 Set
Specifications
1.Metal Shell,Zinc Alloy2.Backlight Keypad
3.CE&FCC
4.Wiegand26bit input and output
5.IP68 Waterproof
1. Features
· Strong Zinc Alloy Electroplated anti-vandal case
· Waterproof IP68
· 2000 uses, supports Card, PIN, Card + PIN
· Can be used as a standalone keypads, Backlight keys
· WG26 output for connecting to a controller, input for connecting with a reader
· Adjustable Door Output time, Alarm time, Door Open time
· Very low power consumption (30mA)
· Fast operating speed, <20ms with 2000 users
· Lock output current short circuit protection
· Built in light dependent resistor (LDR) for anti tamper,Built in buzzer
· Red, Yellow and Green LEDS display the working status
2. Specifications
Operating Voltage DC 12V±10%
User Capacity:2000
Card Type:EM, MF
Card Reading Distance:3-6 cm
Active Current:<60mA
Idle Current:25±5mA
Lock Output Load:Max3A
Alarm Output Load:Max20A
Operating Temperature:-45~60℃
Operating Humidity:10%- 90% RH
Environment:Conforms to IP68
Adjustable Door Relay time:0 -99 seconds
Adjustable Alarm Time:0- 3 minutes
WiegandInterface:Wiegand 26 bits
Wiring Connections:Electric Lock, Exit Button,External Alarm & Reader
Dimensions:L120 x W80x H25 mm
