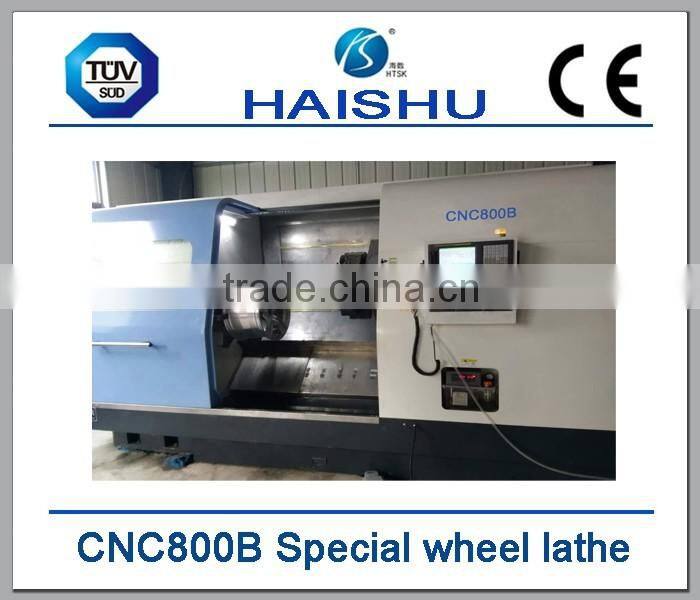

CNC800B Cnc Machine for Making Wheels

FOB Price

US$ 60,000 - 100,000 / Set

1 Set(Min. Order)

Port qingdao port
Payment TermsT/T Money Gram Credit Card

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Condition	New	Type	Horizontal
CNC or Not	CNC	Automatic Grade	Automatic
Max. Swing Diameter	800mm	Place of Origin	Shandong, China
Brand Name	HaiShu	Model Number	CNC800B
Voltage	380v 50hz	Power(W)	18.5KW
Dimension(LWH)	257016201940mm	Weight	6500KG
Certification	TUV CE	After-sales Service Provided	Engineers available to service machinery overseas

Product Description

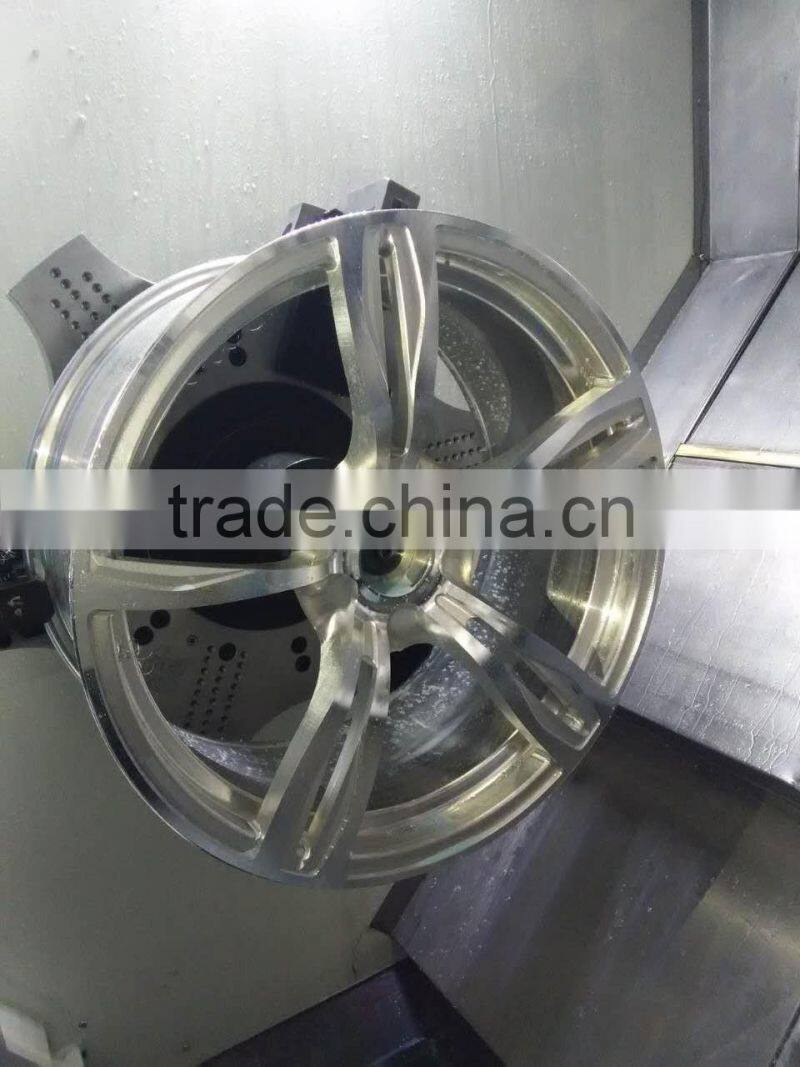

CNC800B cnc machine for making wheels

CNC800D Main technical parameters:

Max.rotation diameter on lathe’ body	mm	800
piece length	mm	700
Max. turning diameter	mm	650
Spindle nose type and code		A11
Front spindle bore taper		1:20
Spindle bore	mm	70
Spindle speed		Servo stepless
Spindle speed range - servo	r/min	20-3000
Main motor power	Kw	18.5
The center of high - from the bed	mm	500
The center of high - from the ground.	mm	1100
Fast moving X/Z	mm/min	25000
Turret transfer time (one station)	s	0.3(Horizontal 12)
Turret transfer repeat positioning accuracy	mm	0.008
X-axis travel	mm	400
Z-axis travel	mm	1100
X/Z ball screw		THK
Workpiece accuracy		IT5-IT6
Workpiece surface roughness	μm	aluminum Ra0.2
Turret form		Hydraulic horizontal 12 station
Knife handle size	mm	32*32
Max capacity	Kg	350
Machine weight	Kg	6500

Standard configuration:

1.Fanuc Oi-TD control system

2 wheel hydraulic chuck (Taiwan)

3 horizontal 12 station hydraulic turret (Taiwan)

4 automatic lubrication system (Taiwan Huayang)

5 cutting cooling system (SGGK)

6 fully enclosed protection system (SGGK)

7 AC servo spindle unit (SGGK)

8 hydraulic power station (Taiwan)

9 main motor (Fanuc)

10.X, Z drive motor (Fanuc)

GUARANTEE AND AFTER-SALE SERVICES:

1.one year guarantee for whole machine except of CNC system, which guarantee is three years

2.24-hours technical support by E-mail or telephone

3.User-friendly English software or Russian or Spanish, Users manuals and Detailed Videos/CD

4.Provide extra accessories for the machine

5.Also provide service of make program according to your drawings

6.Customized or special design is OK.

If you are interested in CNC800B cnc machine for making wheels , welcome to leave a message or send the inquiry to understand the details of machine.
