Help CenterZSound 3 in 6 Out DSP Digital Processor
Related Products
-
Dx224 2 Input 4 Output Speaker Digital ProcessorUS$ 1 - 1,000MOQ: 1 Piece -
Professional Digital Audio ProcessorUS$ 1 - 5,000MOQ: 1 Set
-
Pro Stage Audio Sound ProcessorUS$ 1 - 5,000MOQ: 1 Set
-
Pro Audio Electronics Sound Speaker Processor ProductsUS$ 1 - 5,000MOQ: 1 Set
-
DX336 3INT/6OUT DSP Speaker Management ProcessorUS$ 1 - 5,000MOQ: 1 Set
Specifications
1.3 in 6 out DSP processor2.Hight quality processor
3.10 years experence research and development
4.CE,RoHS certificate
ZSound 3 in 6 out DSP digital processor
1.3 input 6 output digital processor
2.powerful computation model audio processor
3.various optional setting DSP
Proaudio, Loudspeaker, speaker, line array speaker, PA speaker, outdoor speaker, subwoofer, small speaker, active speaker, self-power speaker, powered speaker, amplifier, professional amplfier, Disco speaker, chuch speaker, switching power amplifier, transformer amplifier, mainly designed for live performance, stadium, outdoor use, fixed installation.

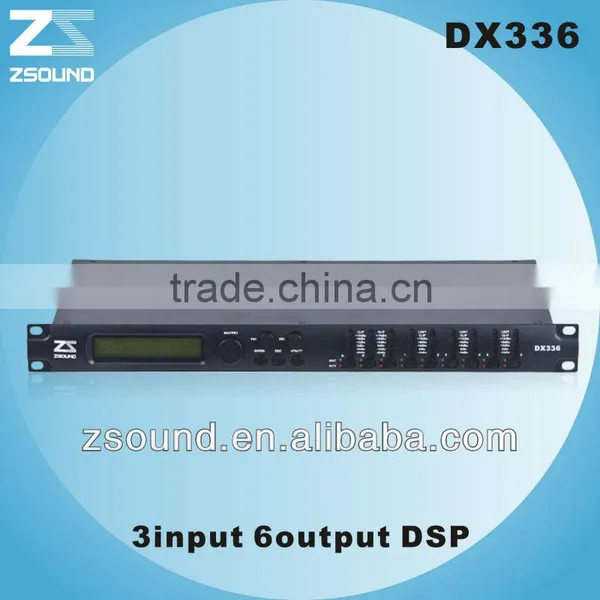

ZSOUND Pro audio DX336 3 input 6 output speaker digital processor
.
| Input/output | |
| Input impedance | >10KΩ |
| Output impedance | 50Ω |
| Max.SPL | +20dBu |
| Analog Audio | |
| Frequency response | +/-0.5dB (20Hz to 20kHz) |
| SNR | 110dB typical (unweighted) |
| CMRR | >40dB (20Hz to 10KHz) |
| Crosstalk | <-100dB |
| Distortion | 0.001% (1KHZ@0dBu) |
| Analog Audio | |
| DSP | 32 bits(Extendable FPU to 40 bits) |
| Sampling rate | 96KHz |
| ADC/DC | 24bits high-resolution chip |
| Transmission | 2ms |
| General Specification | |
| Power | 90-265VAC(50/60Hz) |
| Dimension | 19"*1.75"*9"(483*44*229mm) |
| Weight | 101bs/4.6kg |
| Adjustable Parameters | |
| Master gain | -12 to 12dB, 0.1dB stepping |
| Channel gain | -12 to 0dB, 0.1dB stepping |
| Delay | parameter |
| EQ types | Oaraneter,HP,LP,shelv, Fullpass. Bamd pass, trapper |
| EQ gain | -15 to +15dB 0.5DdB steping |
| EQ bandwidth | 0.009 to 4.8 octaves (Q=0.3 to 20) |
| Rms Limiter | |
| Threshold value | -10 to 20dBu |
| Compression ratio | 1:1 to 32:1 |
| Starting time | 5 to 200ms |
| Release time | 0.1s to 3s |
| Peak Limiter | |
| Threshold value | -10 to 20dBu |
| Starting time | 5 to 200ms |
| Release time | 0.1s to 3s |
| MOQ: | 1PCS |
| Sample led time | 3 days |
| Mass order | 1-2 weeks |
| Packting detail | Carton : 500*60*245 mm |
| 1 Piece in a carton | |
| N.W. : 4.6KG ; G.W.6.0KG | |
| Delivery Clause | EXW Factory, FOB Guangzhou |
| Terms of payment | T/T;L/C;Westerm Union; Cash |
Factory Photo
1>>.Zsound Pro audio Technology co., Ltd. is a company specializes in research, development , production and trade of Zsound pro audio.
2>>.Pro audio system is not only a simple combination of speaker, amplifier and processor, the rational system design, installation, debugging and acoustical features are also the key to replay the ture sound.
System Debug Trainning Photo
Exhibition Photo
Zsound take part in the trading show around the world
Project photo
1) Global leading professional Manufacturer of professional speaker and amplifier.
2) Product quality: Superior speaker and amplifier, top technology and quality.
3) Certificate: CE,RoHS,GS,SGS,ISO9001
4) Monthly Production Capacity: 2000pcs
5) Fast delivery: Get your order when you need it.
6) 4000 square meters workshop, with about 200 workers and 20 professional engineers
7) Convenient Transportation: 1 hour to Baiyun Airport
8) 24 hours on line service.
