Pro Stage Audio Sound Processor

Specifications

1.3 in 6 out digital signal processor
2.Hight quality processor
3.10 years experence research and development
4.CE,RoHS



ZSOUND Pro stage audio sound processor







Input/output
Input impedance	>10KΩ
Output impedance	50Ω
Max.SPL	+20dBu
Analog Audio
Frequency response	+/-0.5dB (20Hz to 20kHz)
SNR	110dB typical (unweighted)
CMRR	>40dB (20Hz to 10KHz)
Crosstalk	<-100dB
Distortion	0.001% (1KHZ@0dBu)
Analog Audio
DSP	32 bits(Extendable FPU to 40 bits)
Sampling rate	96KHz
ADC/DC	24bits high-resolution chip
Transmission	2ms
General Specification
Power	90-265VAC(50/60Hz)
Dimension	19"*1.75"*9"(483*44*229mm)
Weight	101bs/4.6kg
Adjustable Parameters
Master gain	-12 to 12dB, 0.1dB stepping
Channel gain	-12 to 0dB, 0.1dB stepping
Delay	parameter
EQ types	Oaraneter,HP,LP,shelv, Fullpass. Bamd pass, trapper
EQ gain	-15 to +15dB 0.5DdB steping
EQ bandwidth	0.009 to 4.8 octaves (Q=0.3 to 20)
Rms Limiter
Threshold value	-10 to 20dBu
Compression ratio	1:1 to 32:1
Starting time	5 to 200ms
Release time	0.1s to 3s
Peak Limiter
Threshold value	-10 to 20dBu
Starting time	5 to 200ms
Release time	0.1s to 3s











MOQ:	1PCS
Sample led time	3 days
Mass order	1-2 weeks
Packting detail	Carton : 500*60*245 mm
	1 Piece in a carton
	N.W. : 4.6KG ; G.W.6.0KG
Delivery Clause	EXW Factory, FOB Guangzhou
Terms of payment	T/T;L/C;Westerm Union; Cash

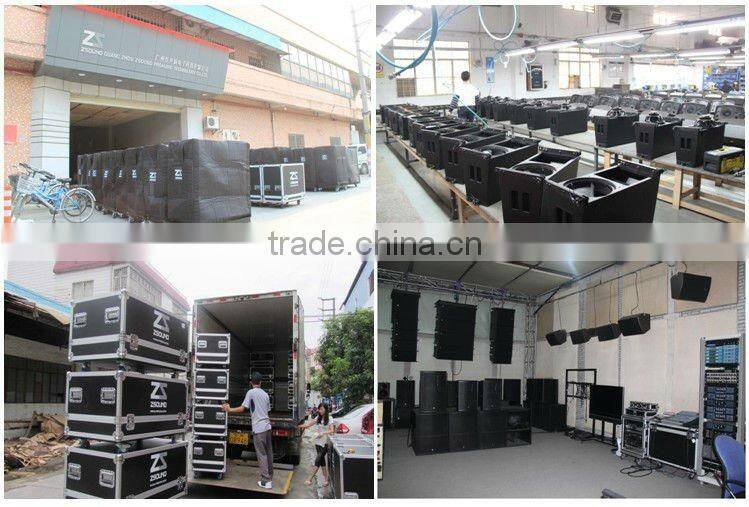

Factory Photo



1>>.Zsound Pro audio Technology co., Ltd. is a company specializes in research, development , production and trade of Zsound pro audio.

2>>.Pro audio system is not only a simple combination of speaker, amplifier and processor, the rational system design, installation, debugging and acoustical features are also the key to replay the ture sound.







System Debug Trainning Photo

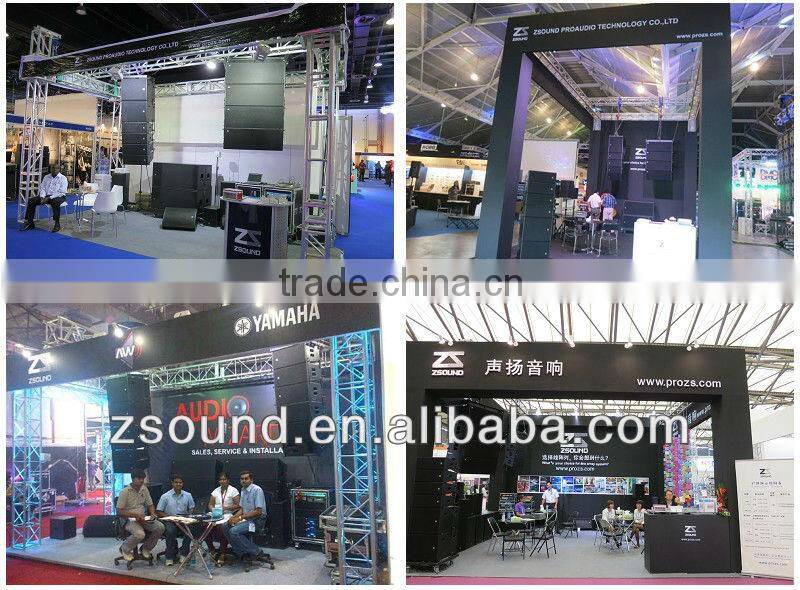

Exhibition Photo



Zsound take part in the trading show around the world

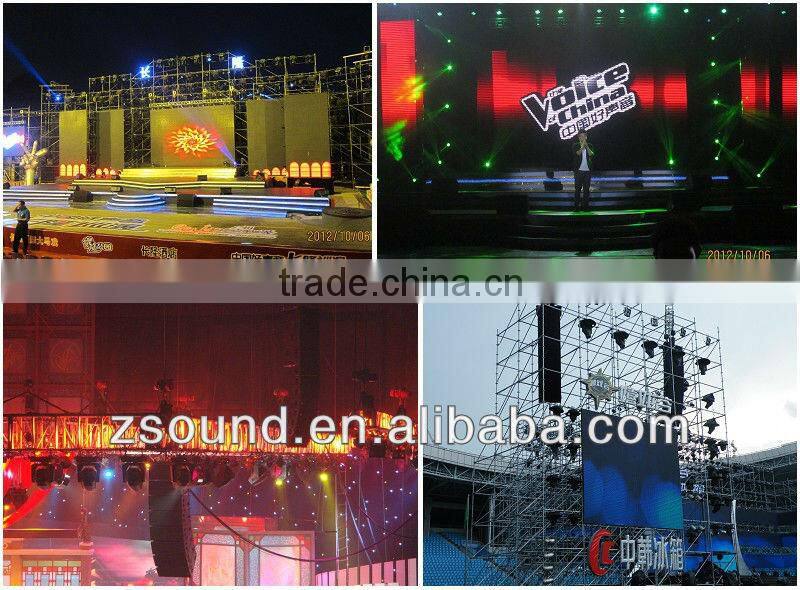

Project photo







1) Global leading professional Manufacturer of professional speaker and amplifier.
2) Product quality: Superior speaker and amplifier, top technology and quality.

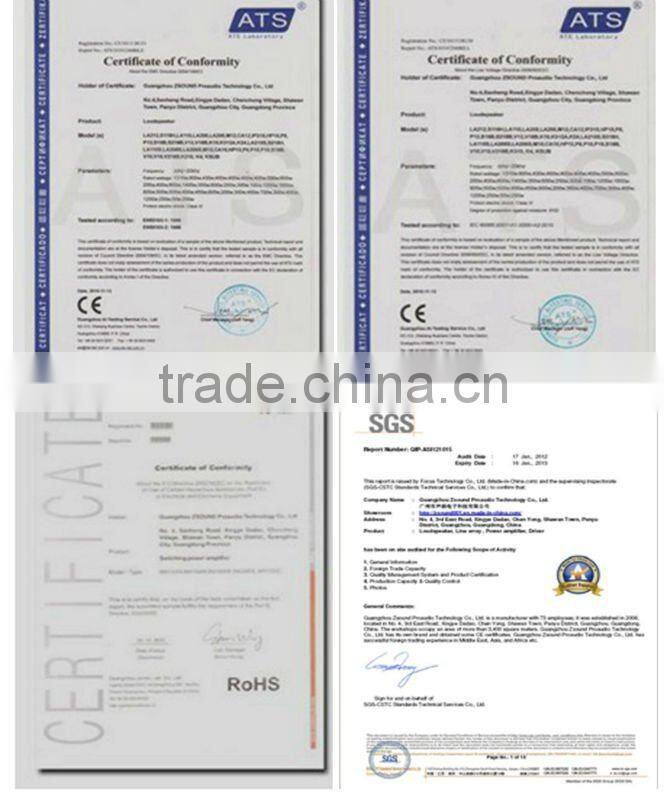

3) Certificate: CE,RoHS,GS,SGS,ISO9001
4) Monthly Production Capacity: 2000pcs
5) Fast delivery: Get your order when you need it.
6) 4000 square meters workshop, with about 200 workers and 20 professional engineers
7) Convenient Transportation: 1 hour to Baiyun Airport
8) 24 hours on line service.
