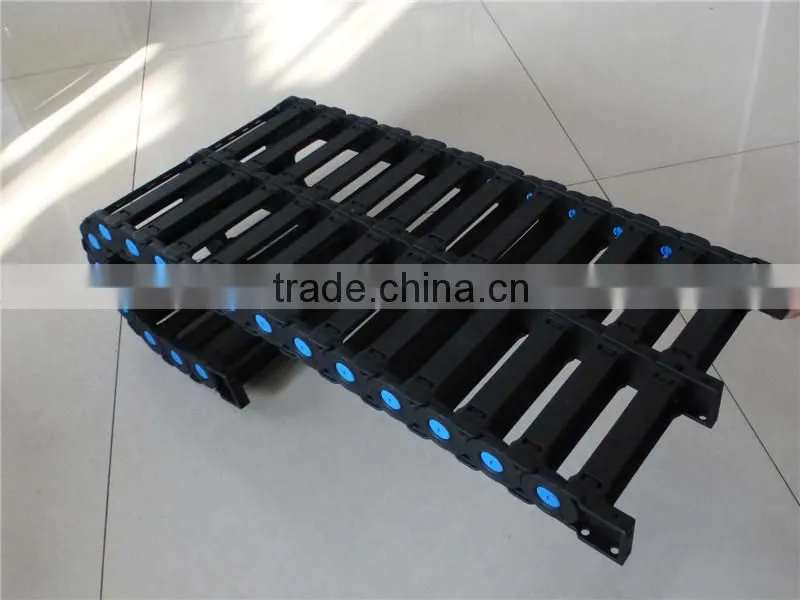

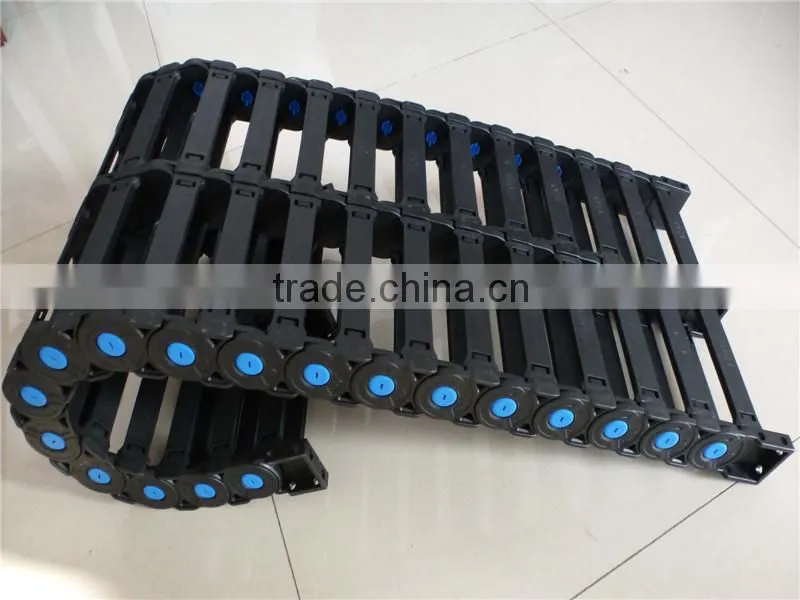

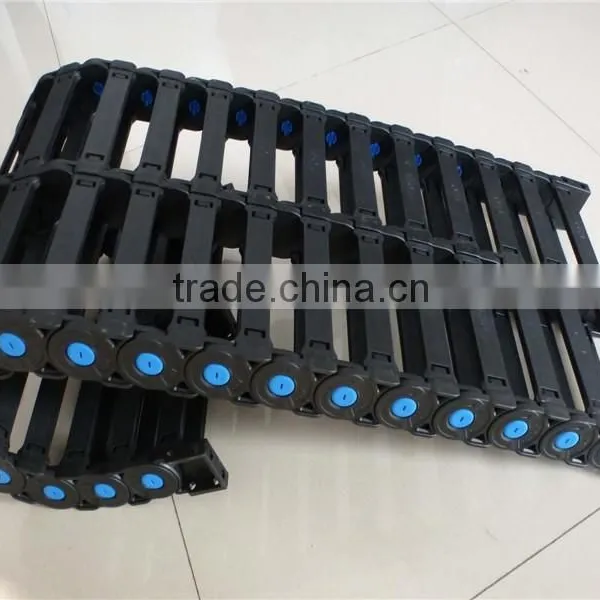

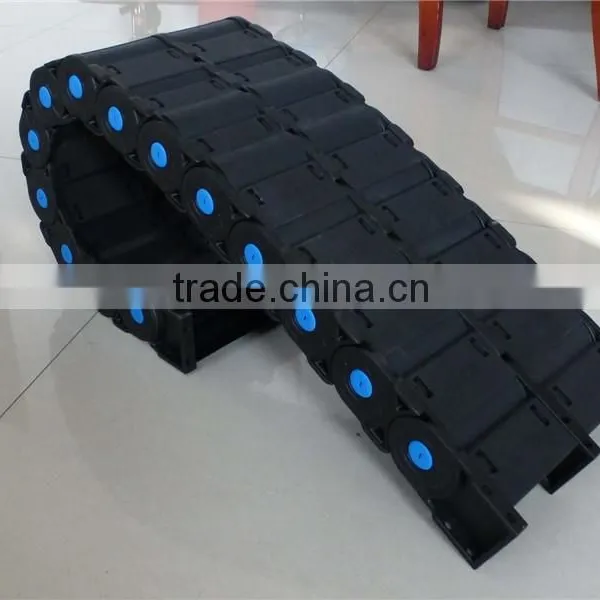

RUIAO TLX series plastic chain cover
some model specification can be offered, according to your requirement ,some datas can be different
TYPE |
Inside Diameter H*W(mm) |
Outside Diameter H*W(mm) |
Bending Radius (mm) |
Pitch (mm) |
TLX35K.75 |
35*76 |
58*111 |
75/100/125/150/ 175/200/250/300 |
71 |
TLX35.100 |
35*101 |
58*136 |
71 |
|
TLX35K.150 |
35*151 |
58*186 |
71 |
|
TLX35K.200 |
35*201 |
58*236 |
71 |
|
TLX35K.250 |
35*251 |
58*286 |
71 |
|
TLX35K.300 |
35*301 |
58*336 |
71 |
|
TLX35K.350 |
35*351 |
58*386 |
71 |
|
TLX35K.400 |
35*401 |
58*436 |
71 |
|
TLX45K.75 |
45*76 |
68*113 |
100/125/150/175/ 200/225/250/300 |
81 |
TLX45K.100 |
45*101 |
68*138 |
81 |
|
TLX45K.150 |
45*151 |
68*188 |
81 |
|
TLX45K.200 |
45*201 |
68*238 |
81 |
|
TLX45K.250 |
45*251 |
68*288 |
81 |
|
TLX45K.300 |
45*301 |
68*338 |
81 |
|
TLX45K.350 |
45*351 |
68*388 |
81 |
|
TLX45K.400 |
45*401 |
68*438 |
81 |
|

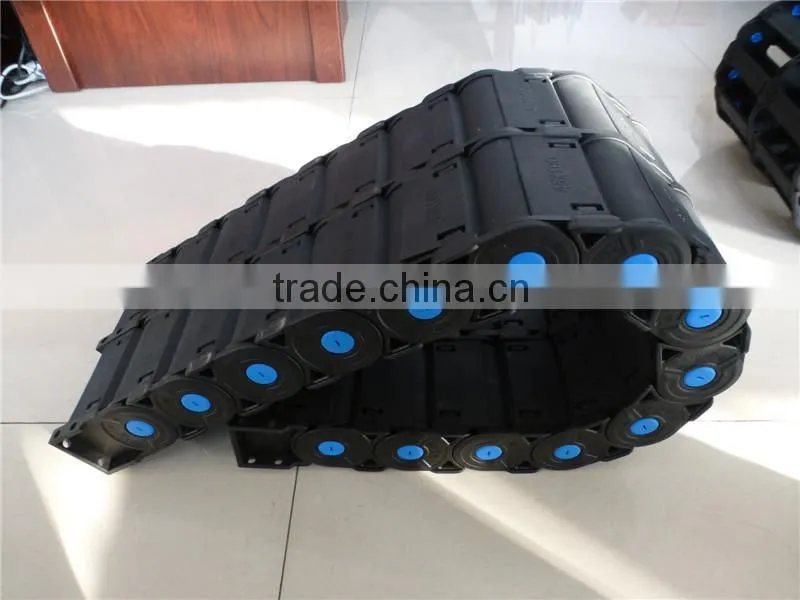

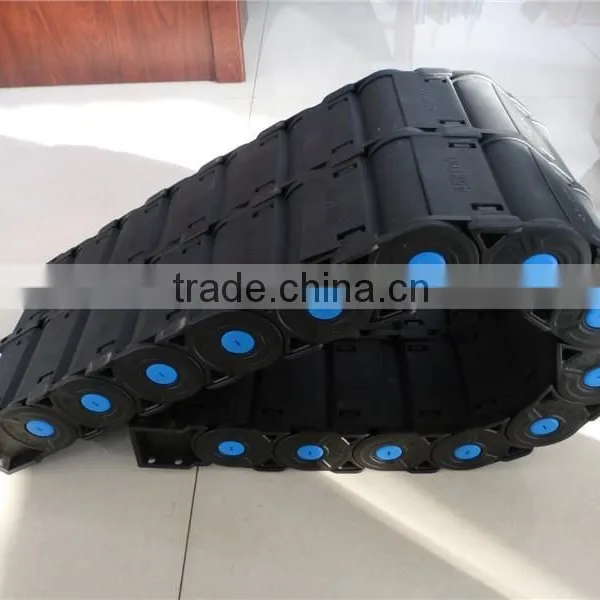

Both bridge type and enclosed type are avaiable here | ||||
Principle for selecting drag chains
inner height :take the most thick piece of the internally installed cable ,oil pipe,gas pipe or water pipe as the reference height plus 10%of the space height at least as the inner height HI.if overlapping ,take the overlapped height as the actual height .
inner width :take the sum of the outside diameter of the thicker cables ,oil pipe,gas pipe or water pipe as the reference of the inner width and leave at least 10% of the space as a margin
radius of a bend :take the biggest radius of a bend of a cable ,oil pipe,gas pipe or water pipe as a reference value and leave 10%of the space as a margin
receive the test .RUIAO is powerful enough

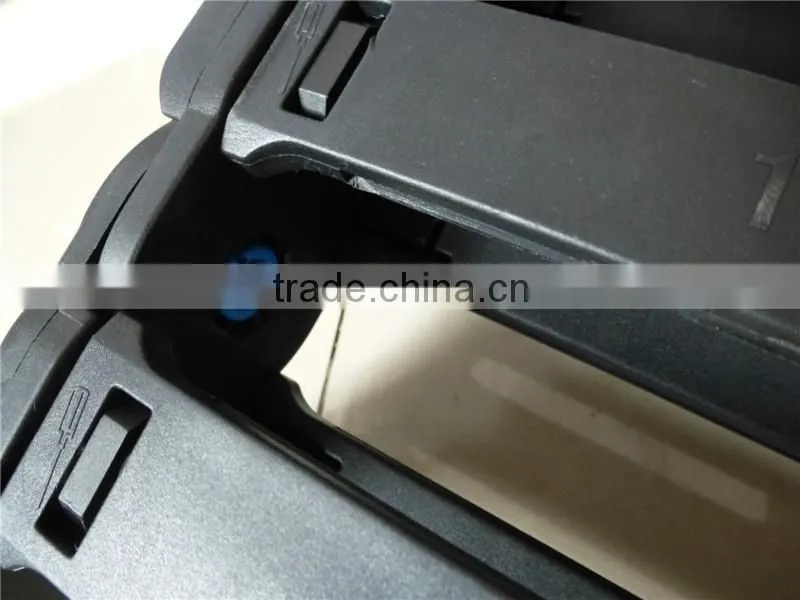

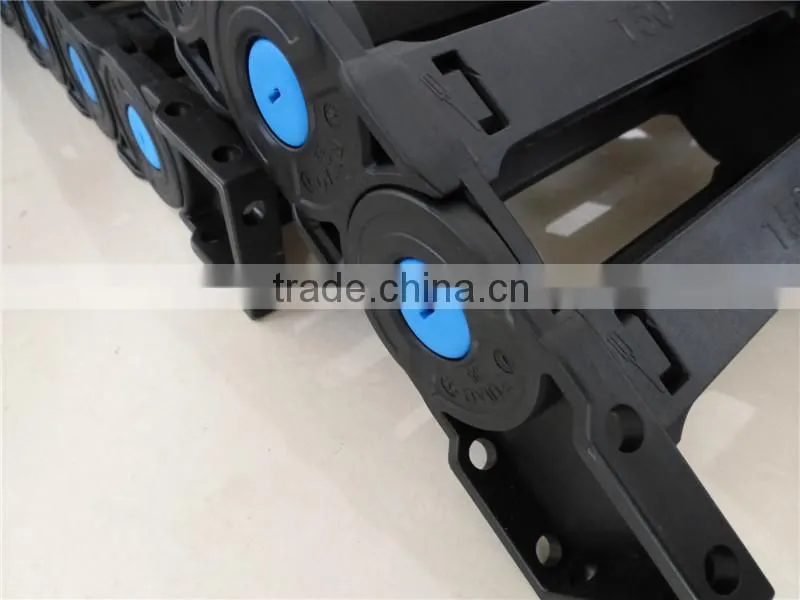

you can ask for any detail pictures about our products,these are some normal ones.

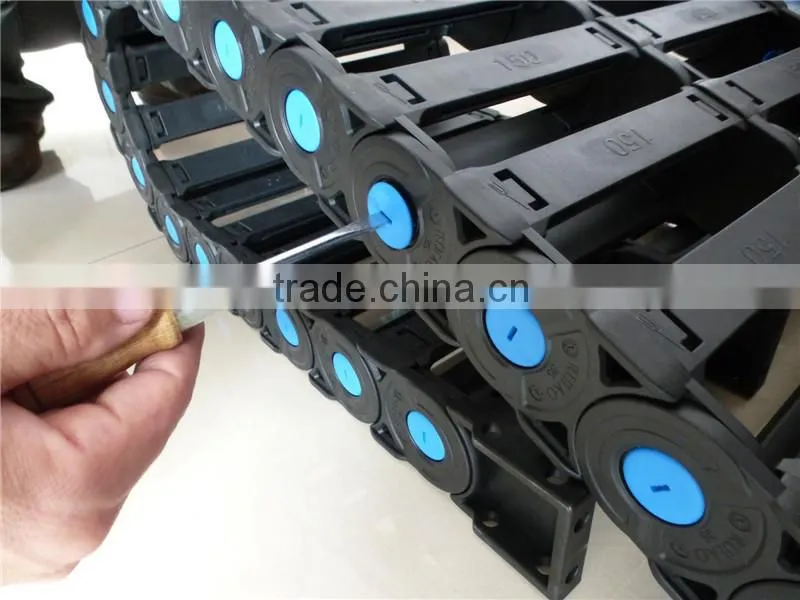

any accessory should be carefully checked before assemble,any finished products should be perfect before packed
your wise choice of RUIAO,more than200 kinds of types can be offered,thank you for choosing,here,you can get any machine tools within 24hours,just believe me~
Ensure your goods will be transport safety!

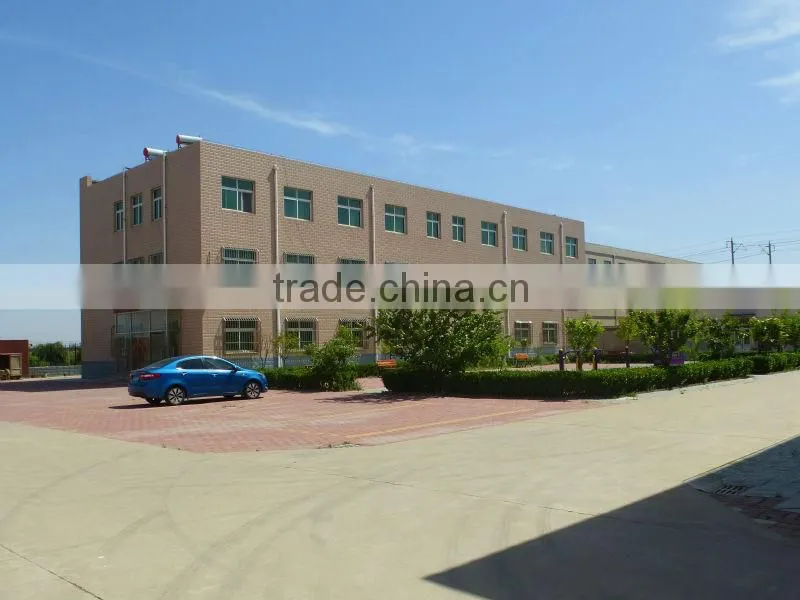

The comfortable plants ,we will be right here waiting for you~~~
FAQ
Q: how to choose a suitable size ?
A: the detail catalog can show out the whole sizes which can be offered at once.
Q:can you suggest me a suitable type?
A: certainly, all the ESQ are professional ones in machine tools, once you provide some key words, the most suitable size can be choosen to meet your need.
Q:what about the delivery time?
A: to be a big manufacture, the stock is really large, once your choice is about the model products, the time will be with three days, while, considering the customized ones, a week is the up line.
Q:what your worktime?
A: all the time, any request should be replied within 24hours.
Q:what’s your main market?
A: Europe and America, well, any countries can be our good buyer
Q:do you have any angency outside CHINA?
A:all the RUIAO products sell out from the factory, so the price will be similar to every buyer.
Q: what is your publicity campaigns?
A: by attending international exhibition
