RUIAO CE approved TEZ65*175 cnc cable carrier of China supplier
located at this booming industial estate,we have the advantage to massive manufacture ,welcome to visit our plant, RUIAO is just here waiting for you~
some model specification can be offered, according to your requirement ,some datas can be different
INSIDE HEIGHT*WIDTH=65*175mm
OUTSIDE HEIGHT*WIDTH=95*222mm
BENDING RADIUS=150/200/250//300/350/400/500mm
ANY LENGTH IS AVAILABLE
| TYPE | H*W(I) | H*W(O) | R | P | Non-support L | TYPE |
| TEZ65*100D | 65*100 | 95*147 |
150 200 250 350 400 500
|
96 | 8 | Bridge/enclosed |
| TEZ65*125D | 65*125 | 95*172 | 8 | |||
| TEZ65*150D | 65*150 | 95*197 | 10 | |||
| TEZ65*175D | 65*175 | 95*222 | 10 | |||
| TEZ65*200D | 65*200 | 95*247 | 12 | |||
| TEZ65*250D | 65*250 | 95*297 | 15 |
Principle for selecting cnc cable carrier
- 1. inner height :take the most thick piece of the internally installed cable ,oil pipe,gas pipe or water pipe as the reference height plus 10%of the space height at least as the inner height HI.if overlapping ,take the overlapped height as the actual height .
- 2. inner width :take the sum of the outside diameter of the thicker cables ,oil pipe,gas pipe or water pipe as the reference of the inner width and leave at least 10% of the space as a margin
- 3. radius of a bend :take the biggest radius of a bend of a cable ,oil pipe,gas pipe or water pipe as a reference value and leave 10%of the space as a margin
Instruction principles for internally laid cable ,oil pipe ,water pipe or gas pipe
- 1. 15%of the space should be reserved as a margin so that the internally laid cables and oil pipes can move freely and there will not be any stress on the drag chains in the direction of radius .
- 2. for those cables that are quite different in diameter ,they should be laid separately and the weight should be balanced evenly .they can also be separated from each other by using spacers if necessary
- 3. when operating in high speed or high frequency ,the horizontally laid cables should be in a parted way and should not be overlapped ,if too many cables ,gas pipes and oil pipes laid together ,it is recommended that spacers be used
Installation for cnc cable carrier
- 1. Put a screw driver vertically into the opening hole at both ends of the cover and then open the cover .put the drag chain for cables and oil pipes according to the instructions provided .put the cover back .note that the fixed end and the moving end of a cable should be fixed by using a tension device.
- 2. when used in a long sliding service ,it is recommended to use a guiding grove,please ask our technical personnel about the usage of the guiding grove.
Basic parameters of cnc cable carrier
- 1. Material:reinforced nylon. It can stand with high pressure and has good tensile strength,toughness and elasticity,wearing and falmable resistance
- 2. Resistances:It is oil and salt resistant.
- 3. operating speed and acceleration :Max.operating speed is 5m/sec.and max.acceeleration is 5m/sec.(specfic speed and acceleration depends on specific situation).
- 4. Service life: Under normal conditions,5million reciprocating motions can be reached (which is also related to the operating conditions.)
you can ask for any detail pictures about our products,these are some normal ones.

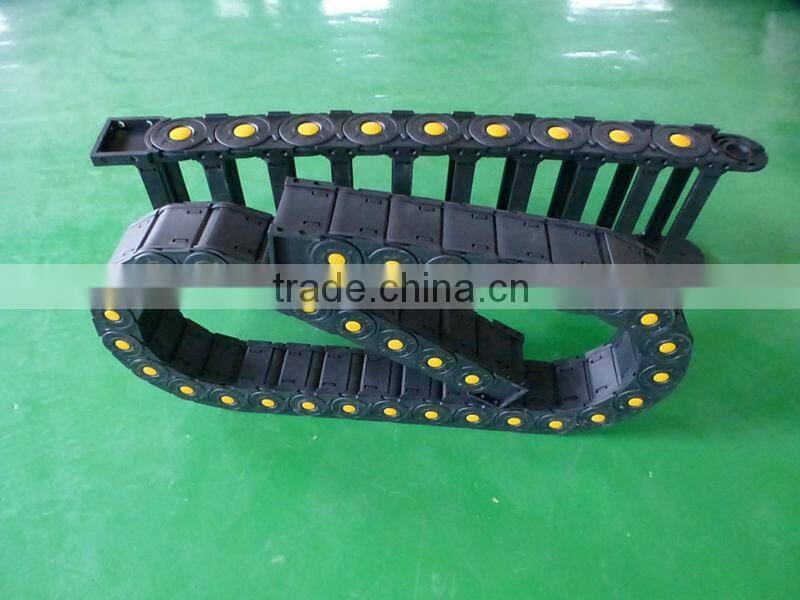

cnc cable chain/ cable carrier/ cable track/ drag chain

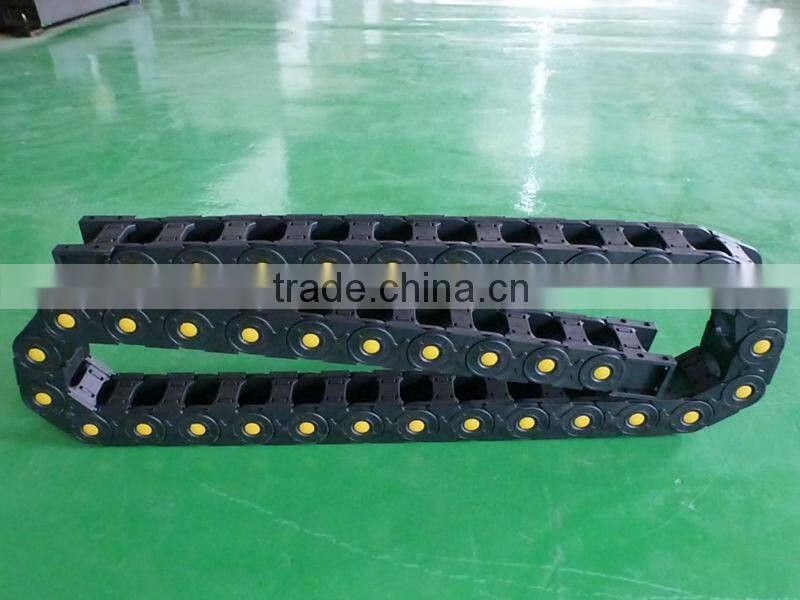

cnc cable chain/ cable carrier/ cable track/ drag chain

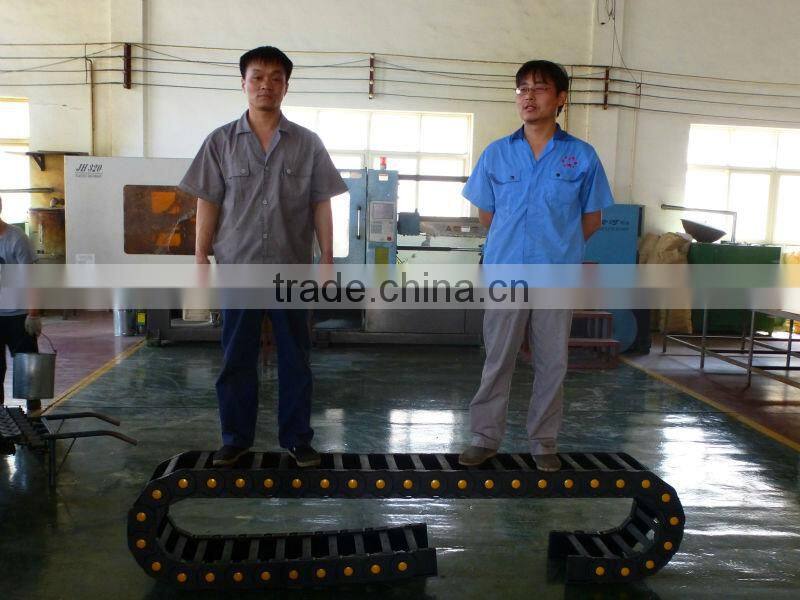

receive the test .RUIAO is powerful enough
your wise choice of RUIAO,more than200 kinds of types can be offered,thank you for choosing,here,you can get any machine tools within 24hours,just believe me~
HEBEI RUIAO MACHINE TOOL ACCESSORIES PRODUCING CO,.LTD
Zhifangtou Industrial Park,Cangzhou City,Hebei Province, China
Tel:+86-3174958927
Fax:+86-3174958913
Skype: pear.ruiao
QQ:1826839662
Website :
To be a good supplier,noting is problem to us~
1. Whether raw materials is guaranteed?
reply: we have stable supplier for our raw materials about decades, performance test reports can be provided if necessary
2. How to determine the model ?
reply: we have professional and technical personnels to help you match the optimal strategy .
3. What is the life of the product?
reply: with the high-performance raw materials and high-end processing machinery,we ensure the lifetime will be more than three years in the normal use.
4.how about the salesman service ?
reply: we have the Service Department,Manager zhao will be ready for you in 24h everyday,QQ:740760058 T:+8613703170992
5. Are you the real manufacturer ?
reply: our plant is located in Zhifangtou Industrial Estate, here is the gathering place for processing enterprises,welcome to HEBEI RUIAO!
