Hebei Ruiao New Type Plastic TEZ56 Bridge Type Cnc Machine Tool Accessory Cable Protector

US$ 0.1 - 100 MOQ: 1 Meter

Key Specifications

Material:

nylon p66

Brand:

RUIAO

Model:

TEZ 56*100

Hebei Ruiao Machine Tool Accessories Producing Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Xingang China

Delivery Detail:

Delivery time depends on order quantity.

Material nylon p66

Brand RUIAO

Model TEZ 56*100

hebei ruiao new type plastic TEZ56 bridge type cnc machine tool accessory cable protector

Product Description

some model specification can be offered, according to your requirement ,some datas can be different

Principle for selecting drag chain guide

inner height :take the most thick piece of the internally installed cable ,oil pipe,gas pipe or water pipe as the reference height plus 10%of the space height at least as the inner height HI.if overlapping ,take the overlapped height as the actual height .
inner width :take the sum of the outside diameter of the thicker cables ,oil pipe,gas pipe or water pipe as the reference of the inner width and leave at least 10% of the space as a margin
radius of a bend :take the biggest radius of a bend of a cable ,oil pipe,gas pipe or water pipe as a reference value and leave 10%of the space as a margin

Characteristics and Applications of drag chain guide

The product can be used for such locations where repciprocating motions are required so that internally installed cables,oil pipes,gas tubes and water tubes can be draged and protected.
Each joint of the chain can be opened up so as to facilitate repairs and maintenance. It gives low noises and is of antiwearing while running. It can also be operated under high speed.

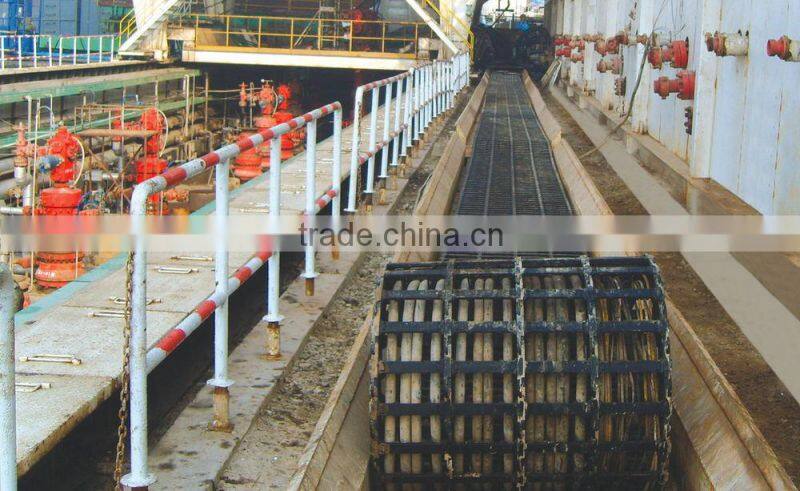

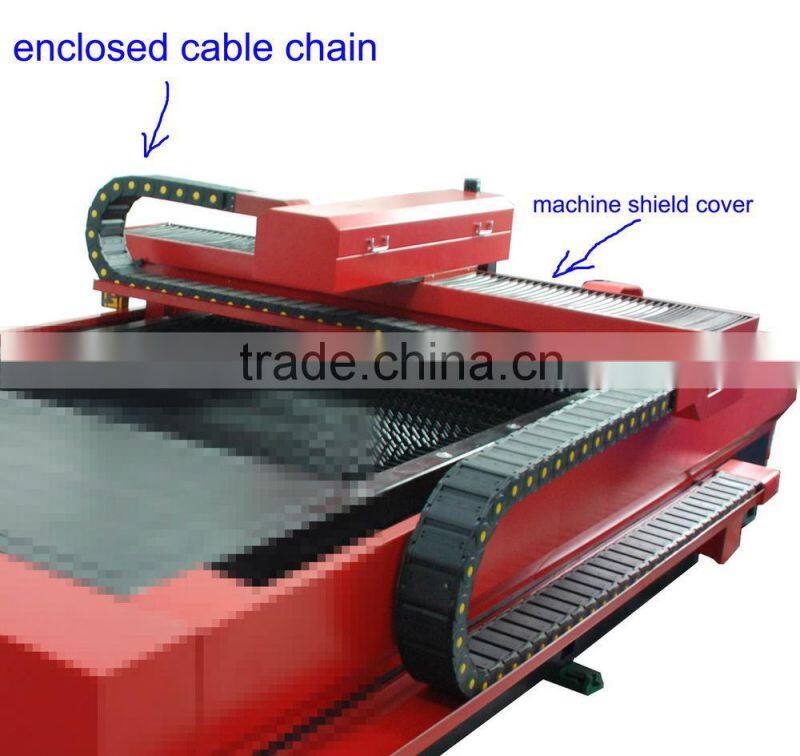

The drag chains have already extensively used in digital-controlled machine tools,electronic equipement,machinery for stone industry,machinery for glass industry,machinery for doors and windows,moulding injectors,manipulators,lifting and transport equipment and automatic warehouses,etc.

Basic parameters of drag chain guide

Material:reinforced nylon. It can stand with high pressure and has good tensile strength,toughness and elasticity,wearing and falmable resistance
Resistances:It is oil and salt resistant.
operating speed and acceleration :Max.operating speed is 5m/sec.and max.acceeleration is 5m/sec.(specfic speed and acceleration depends on specific situation).
Service life: Under normal conditions,5million reciprocating motions can be reached (which is also related to the operating conditions.)

Type	Inside diameter	Outside diameter	Bending radius	Pitch	Non support length	Type
TEZ56*100D	56*100	83*139	150 200 250 300 350 400 500	91	8	bridge type /totally enclosed
TEZ56*125D	56*125	83*164			8
TEZ56*150D	56*150	83*189			10
TEZ56*175D	56*175	83*214			10
TEZ56*200D	56*200	83*239			12
TEZ56*250D	56*250	83*289			15
