Product Details
Material: | pa66,reinforced nylon pp66 | Brand: | RUIAO | Model: | TEZ56*300 |
Product Description

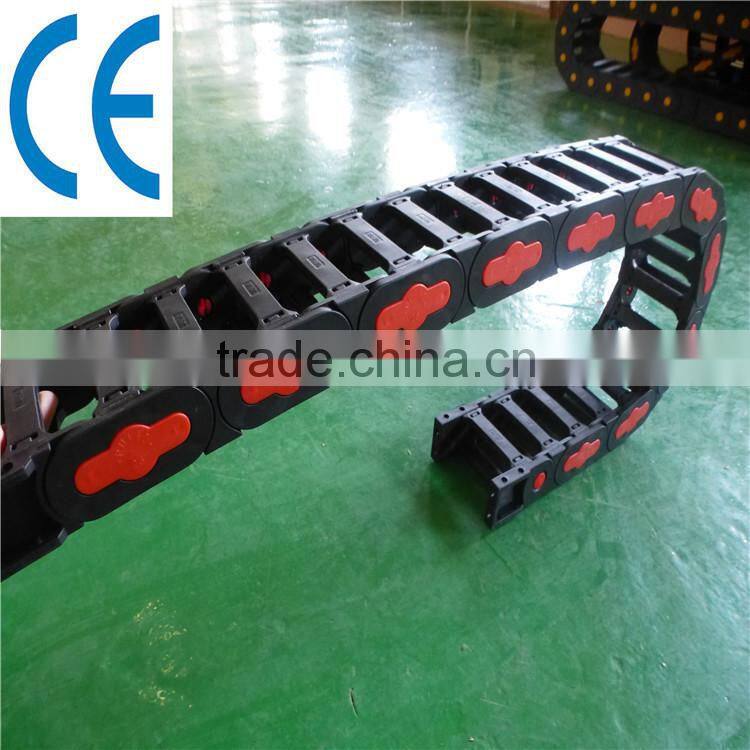

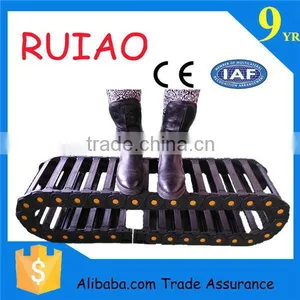

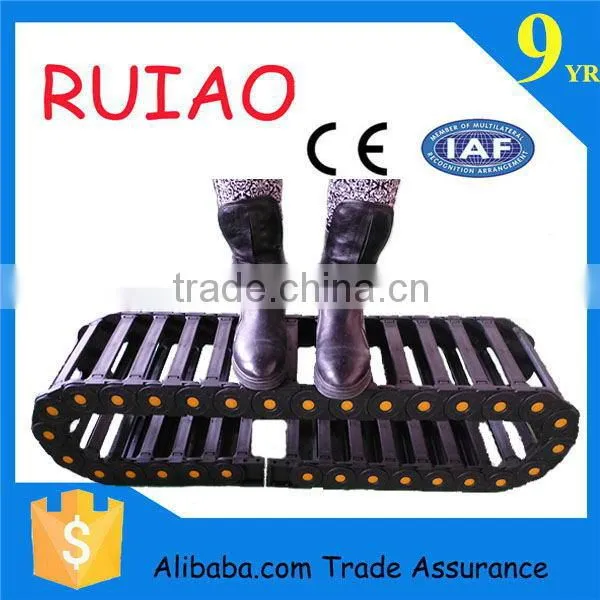

high speed cnc cable chain flexible plastic cable carrier energy chain made in china bridge type cable wire tracks
some model specification can be offered, according to your requirement ,some datas can be different
Principle for selecting cable carrier
- inner height :take the most thick piece of the internally installed cable ,oil pipe,gas pipe or water pipe as the reference height plus 10%of the space height at least as the inner height HI.if overlapping ,take the overlapped height as the actual height .
- inner width :take the sum of the outside diameter of the thicker cables ,oil pipe,gas pipe or water pipe as the reference of the inner width and leave at least 10% of the space as a margin
- radius of a bend :take the biggest radius of a bend of a cable ,oil pipe,gas pipe or water pipe as a reference value and leave 10%of the space as a margin
Characteristics and Applications of cable carrier
- The product can be used for such locations where repciprocating motions are required so that internally installed cables,oil pipes,gas tubes and water tubes can be draged and protected.
- Each joint of the chain can be opened up so as to facilitate repairs and maintenance. It gives low noises and is of antiwearing while running. It can also be operated under high speed.
- The drag chains have already extensively used in digital-controlled machine tools,electronic equipement,machinery for stone industry,machinery for glass industry,machinery for doors and windows,moulding injectors,manipulators,lifting and transport equipment and automatic warehouses,etc.
Basic parameters of cable carrier
- Material:reinforced nylon. It can stand with high pressure and has good tensile strength,toughness and elasticity,wearing and falmable resistance
- Resistances:It is oil and salt resistant.
- operating speed and acceleration :Max.operating speed is 5m/sec.and max.acceeleration is 5m/sec.(specfic speed and acceleration depends on specific situation).
- Service life: Under normal conditions,5million reciprocating motions can be reached (which is also related to the operating conditions.)
One hot sale type with main sizes for reference , other types can be requested for detail !
Type | Inside Diameter (height×length) (mm) | Outside Diameter (height×length) (mm) | Bending radius (mm) | Pitch (mm) | Non-support length(m) |
TEZ25.25K2 | 25×25 | 40.6×45 | 55.75.100. 125.150 | 44 | 5 |
TEZ25.38K2 | 25×38 | 40.6×58 | 6 | ||
TEZ25.50K2 | 25×50 | 40.6×70 | 6 | ||
TEZ25.57K2 | 25×57 | 40.6×77 | 6 | ||
TEZ25.75K2 | 25×75 | 40.6×95 | 6 | ||
TEZ25.103K2 | 25×103 | 40.6×123 | 7 | ||
TEZ25.125K2 | 25×125 | 40.6×145 | 7 | ||
TEZ25.150K2 | 25×150 | 40.6×170 | 8 | ||
TEZ35.50D | 35×50 | 58×77 | 75.100. 125.150.200.250 | 66 | 8 |
TEZ35.60D | 35×60 | 58×87 | 8 | ||
TEZ35.75D | 35×75 | 58×102 | 8 | ||
TEZ35.100D | 35×100 | 58×127 | 10 | ||
TEZ35.125D | 35×125 | 58×152 | 10 | ||
TEZ35.150D | 35×150 | 58×177 | 12 | ||
TEZ35.175D | 35×175 | 58×202 | 12 | ||
TEZ35.200D | 35×200 | 58×227 | 15 | ||
TEZ45.50D | 45×50 | 68×79 | 75.100. 125.150.200.250 | 66 | 8 |
TEZ45.75D | 45×75 | 68×104 | 8 | ||
TEZ45.100D | 45×100 | 68×129 | 10 | ||
TEZ45.125D | 45×125 | 68×154 | 10 | ||
TEZ45.150D | 45×150 | 68×179 | 12 | ||
TEZ45.175D | 45×175 | 68×204 | 12 | ||
TEZ45.200D | 45×200 | 68×229 | 15 | ||
TEZ56.100F | 56×100 | 83×161... | 150.200.250.300.350.400.500 | 91 | 15 |
TEZ56.125F | 56×125 | 83×186... | 20 | ||
TEZ56.150F | 56×150 | 83×211... | 25 | ||
TEZ56.175F | 56×175 | 83×236... | 30 | ||
TEZ56.200F | 56×200 | 83×261... | 30 | ||
TEZ56.250F | 56×250 | 83×311... | 30 | ||
TEZ56.300F | 56×300 | 83×361... | 30 | ||
TEZ65.100D | 65×100 | 95×147 | 150.200.250.300.350.400.500 | 96 | 8 |
TEZ65.125D | 65×125 | 95×172 | 8 | ||
TEZ65.150D | 65×150 | 95×197 | 10 | ||
TEZ65.175D | 65×175 | 95×222 | 10 | ||
TEZ65.200D | 65×200 | 95×247 | 12 | ||
TEZ65.250D | 65×250 | 95×297 | 15 | ||
TEZ80.100D | 80×100 | 111×151 | 200.250.300.350.400.500 | 110 | 13 |
TEZ80.125D | 80×125 | 111×176 | 13 | ||
TEZ80.150D | 80×150 | 111×201 | 15 | ||
TEZ80.175D | 80×175 | 111×226 | 15 | ||
TEZ80.200D | 80×200 | 111×251 | 17 | ||
TEZ80.250D | 80×250 | 111×301 | 20 | ||
TEZ80.300D | 80×300 | 111×351 | 20 |

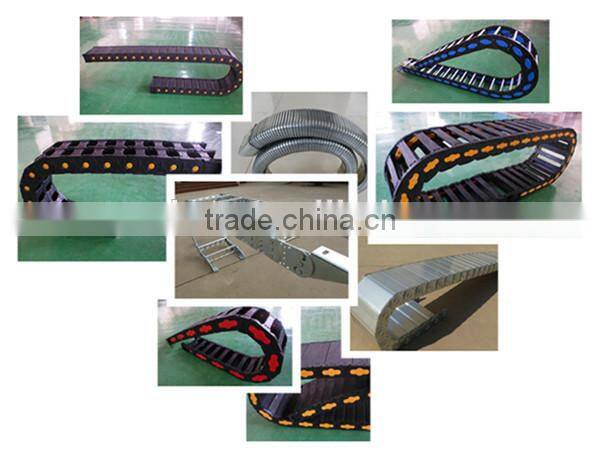

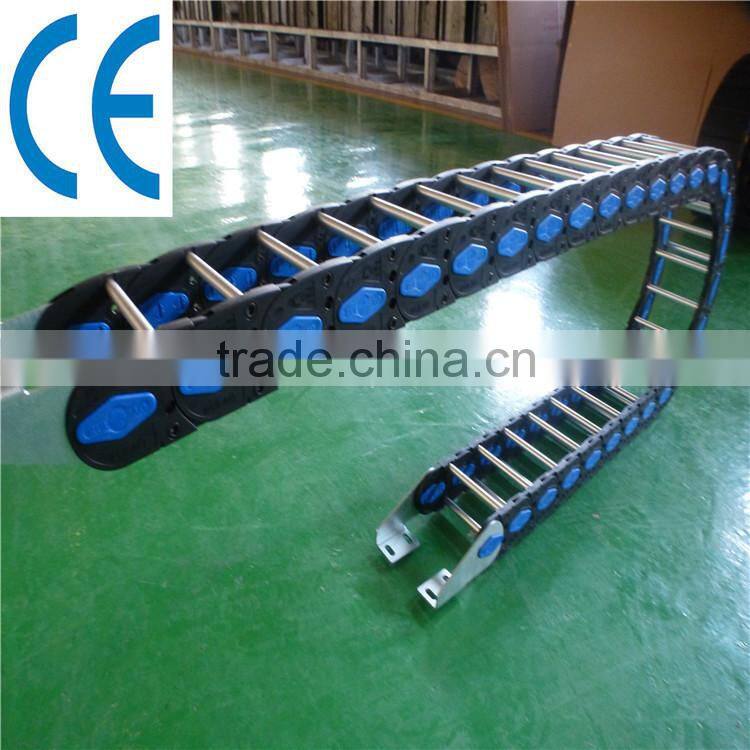

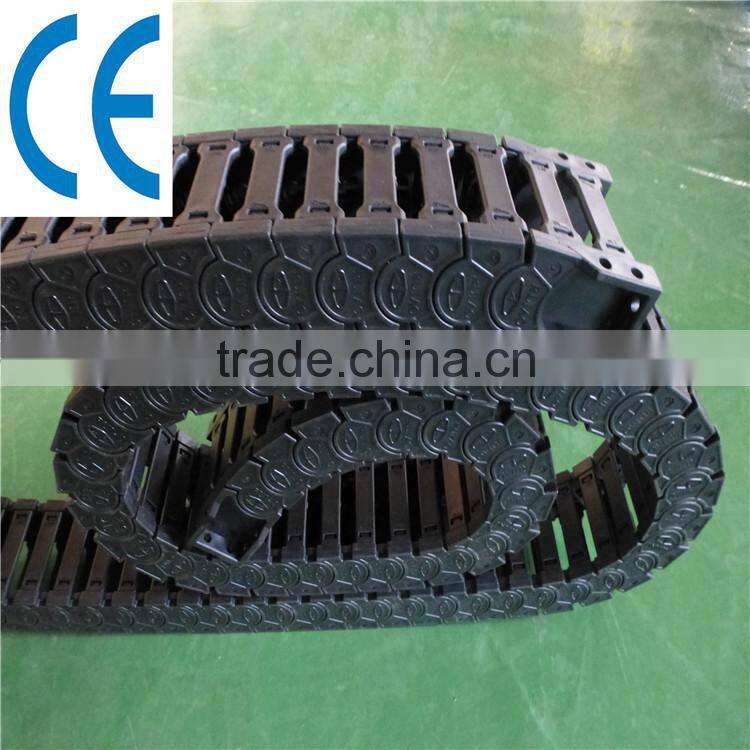

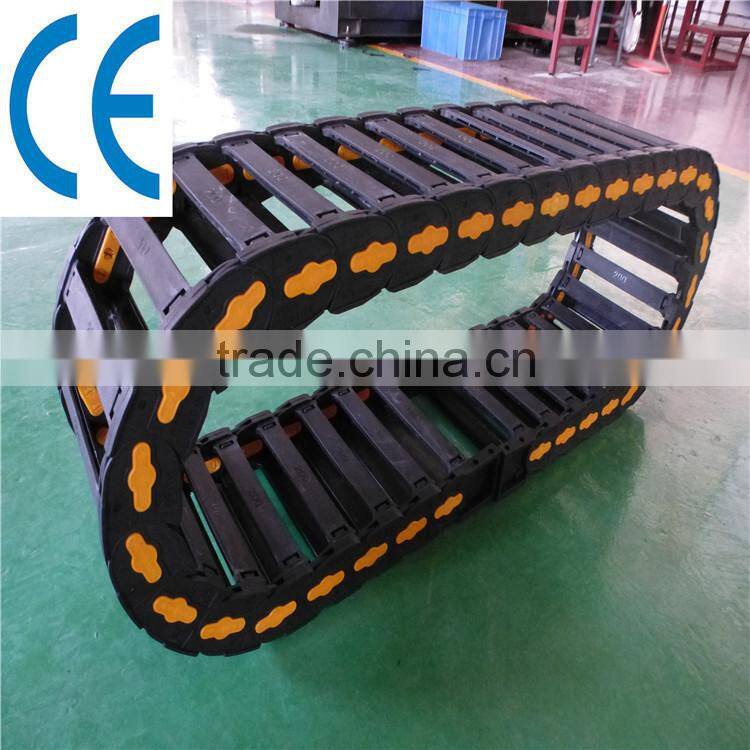

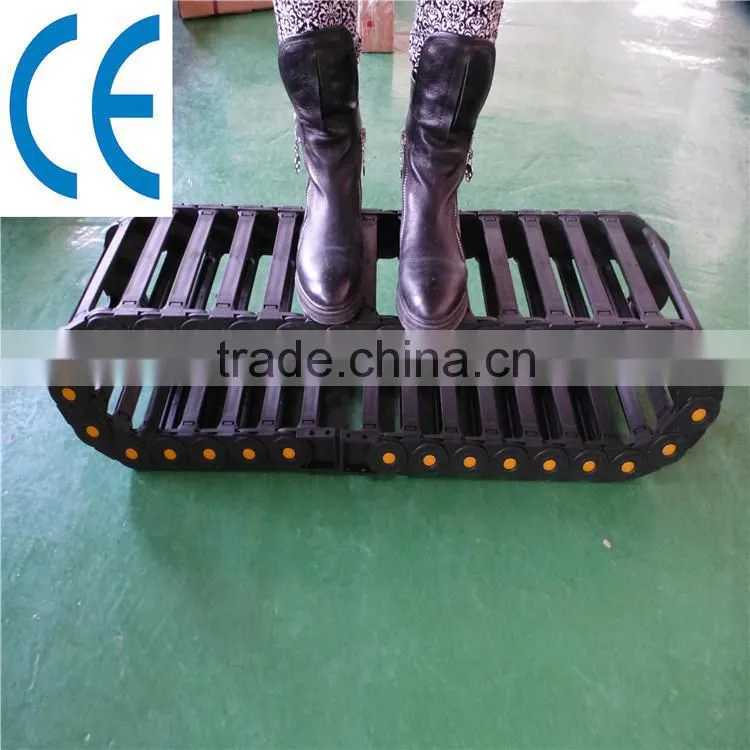

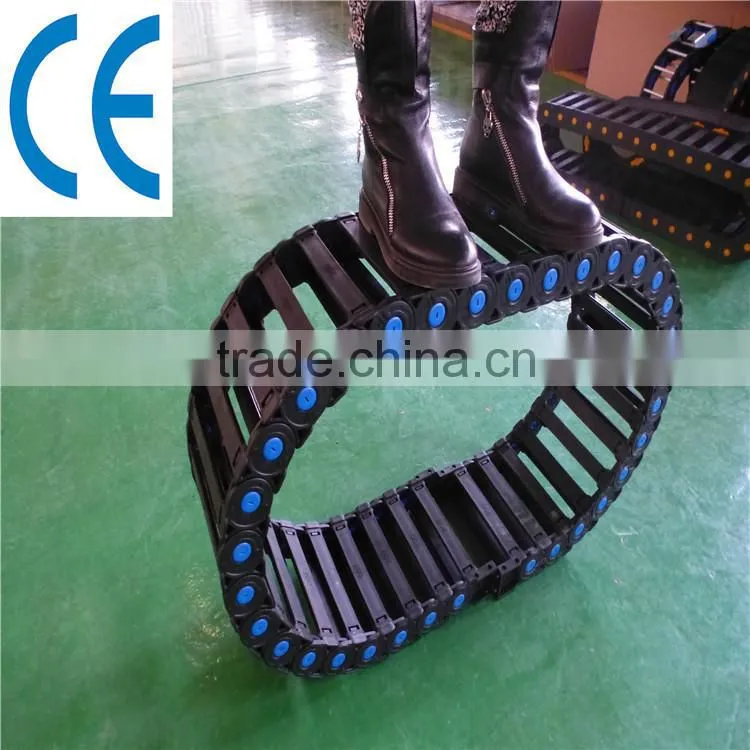

you can ask for any detail pictures about our products,these are some normal ones
We have a large inventory, the production of 1,000 meters, to ensure timely delivery, waiting for your test ~

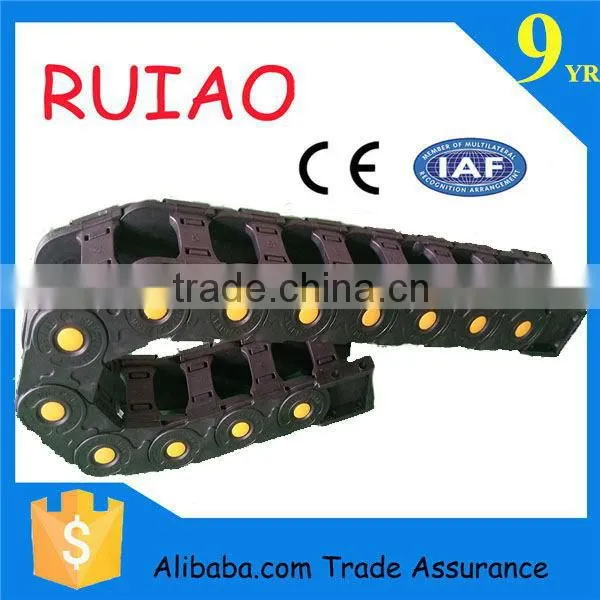

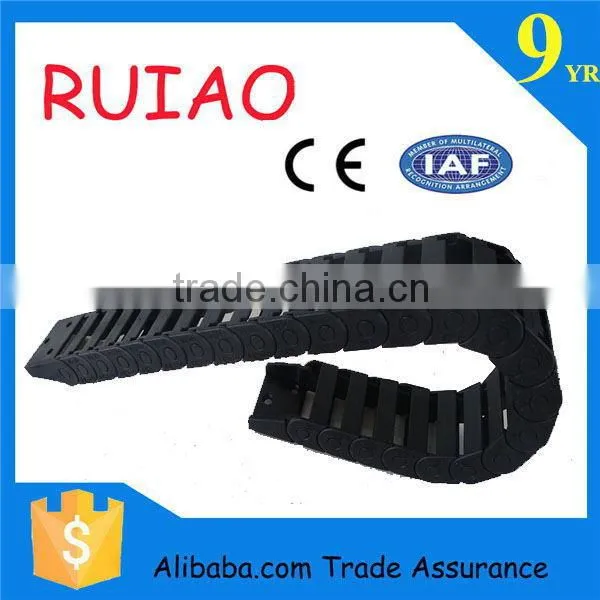

RUIAO cable carrier
your wise choice of RUIAO,more than200 kinds of types can be offered,thank you for choosing,here,you can get any machine tools within 24hours,just believe me~

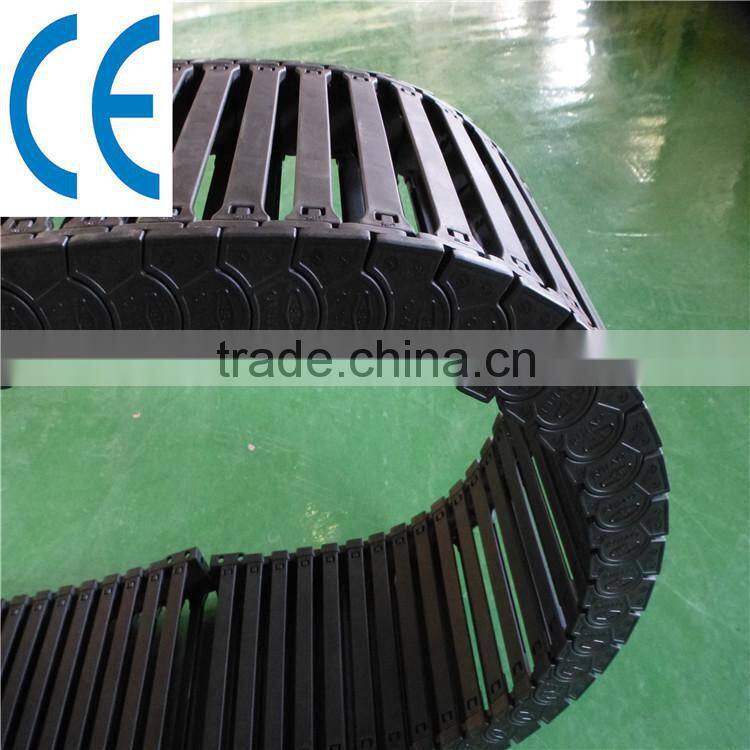

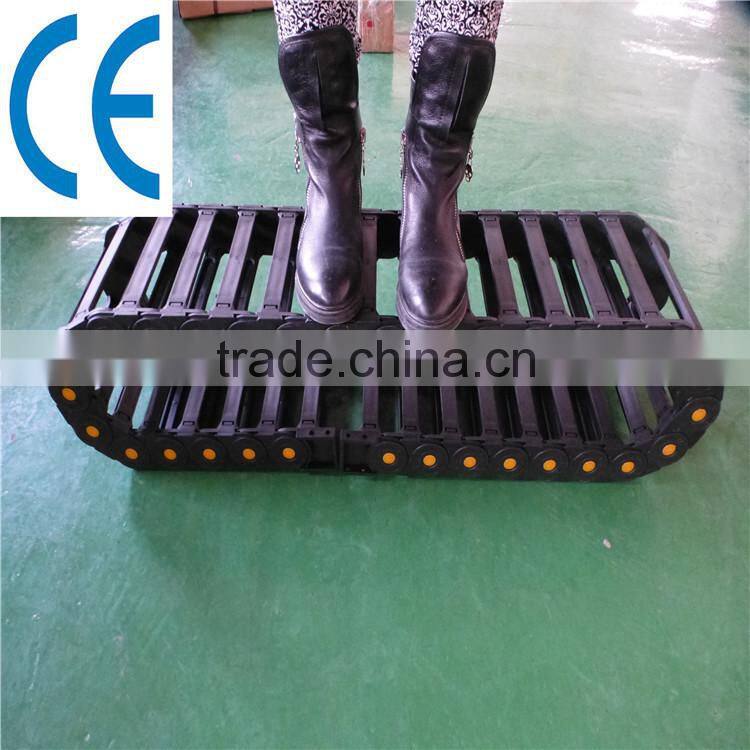

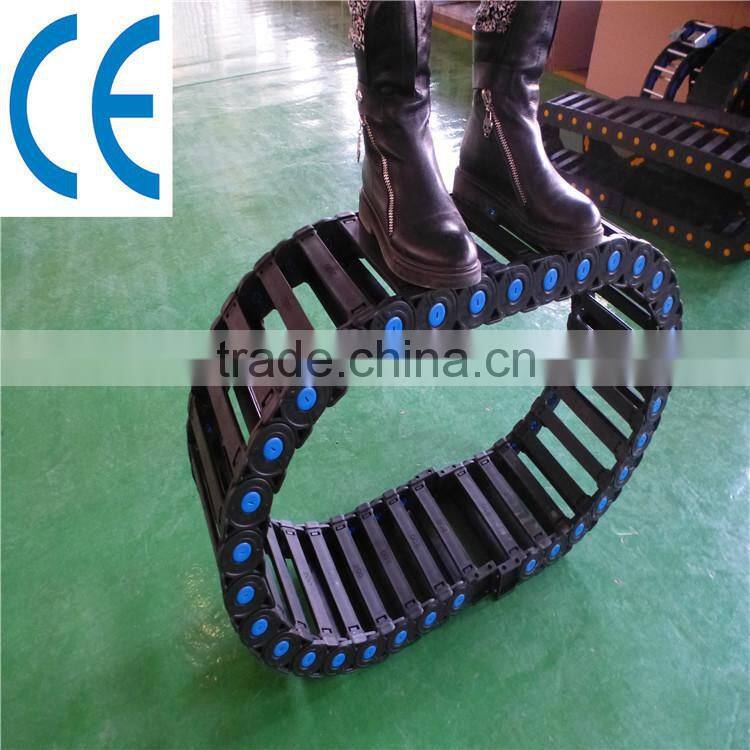

welcome here------anti noise type , silent type supplied by Ruiao
Careful packaging, ensure that the roller chains arrive immediately to your hands~~

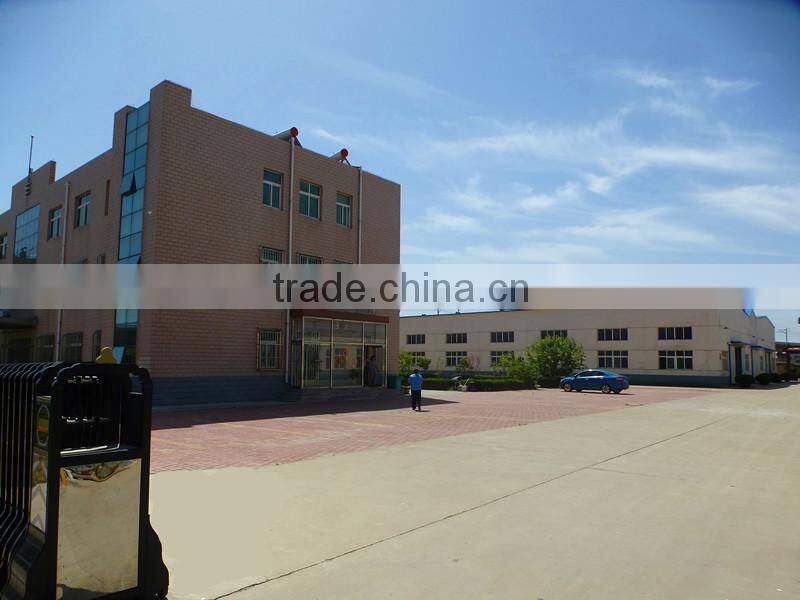

located at this booming industrial estate,we have the advantage to massive manufacture ,welcome to visit our plant, RUIAO is just here waiting for you~
dear , if you are interested in our products , pls feel free to contact me by inquiry . here i will reply you within one hour as soon as getting your inquiry information .
