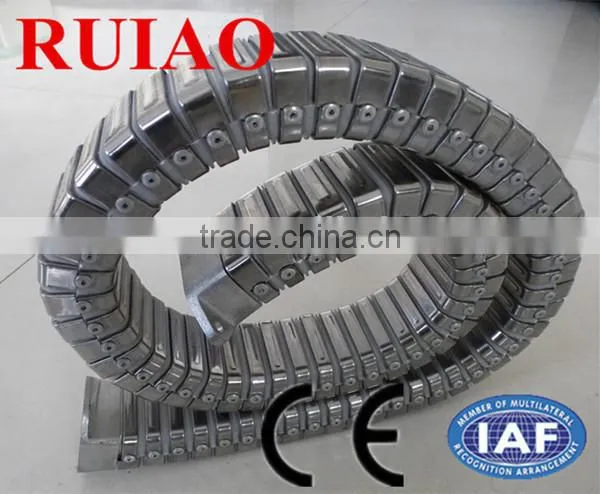

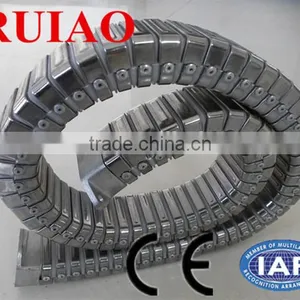

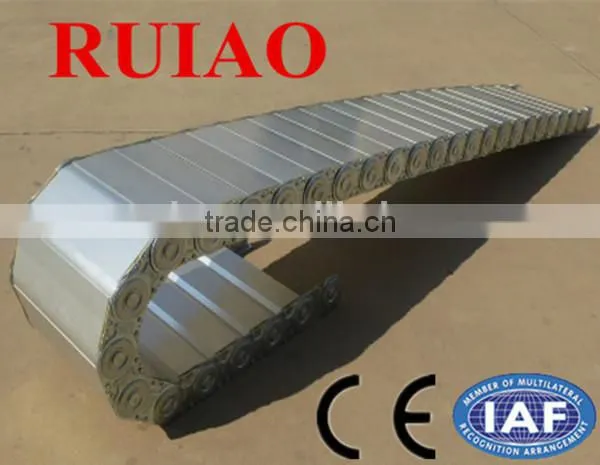

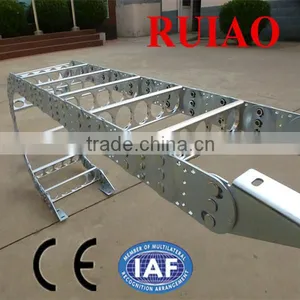

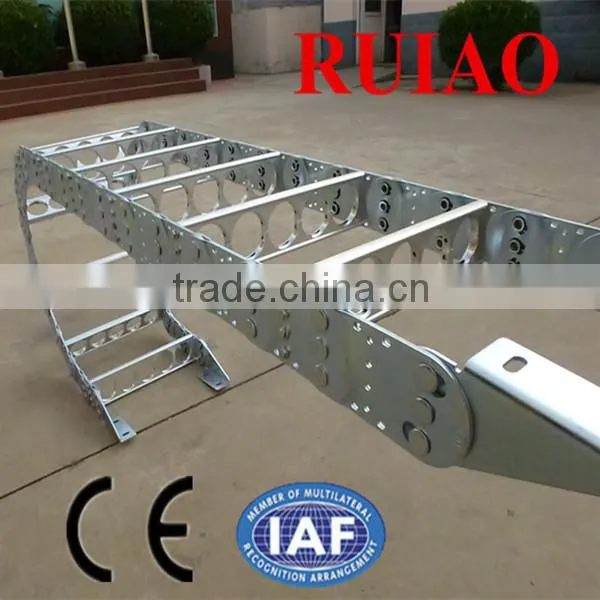

China Factory Hebei Ruiao High Quality Quickly Moving tl Steel Cable Drag Chain

US$ 0.15 - 161.29 MOQ: 1 Meter

Key Specifications

Material:

aluminium alloy

Brand:

RUIAO

Model:

TL95-II

Hebei Ruiao Machine Tool Accessories Producing Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Xingang China

Delivery Detail:

Delivery time depends on order quantity.

Material aluminium alloy

Brand RUIAO

Model TL95-II

china factory hebei ruiao high quality quickly moving tl steel cable drag chain

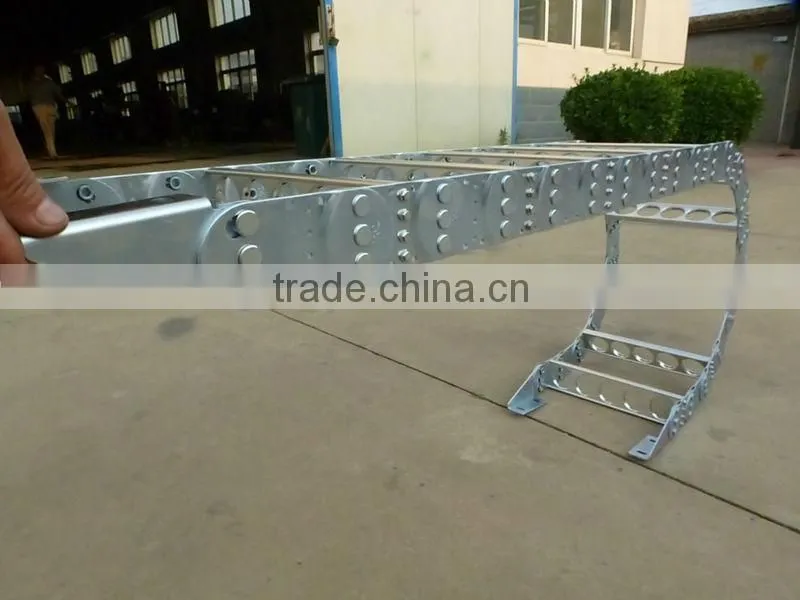

Product Description

some model specification can be offered, according to your requirement ,some datas can be different

Principle for selecting cable drag chains made of cable drag chain

The hole diameter of theinner cavity of supporting board D1=d+0.1d(take round number) ,where d=outside diameter of cables , wires , liquid/gas hoses
The hight of the supporting board and the model number TLXX of drag chains depends on the max.hole diameter of the inner cavity of the supporting
The bend radius depends on the functions of the drag chains
When there is a large load from larger calibre or cables on the drag chains, high strength model I supporting board(integral)should be used
When the size of the connectors are greater than that of the hole diameter of the inner cavity of supporting board of frequent assembly or dismantal operation are required , type III supporting board(frame type) can be used
The width of supporting board B1 can be decided according to the quantity of the cables install so that the width of the drag chain B can be arrived
When limited by locations or environment and if bracing board with steel straps are needed ,please contact our company for solutions

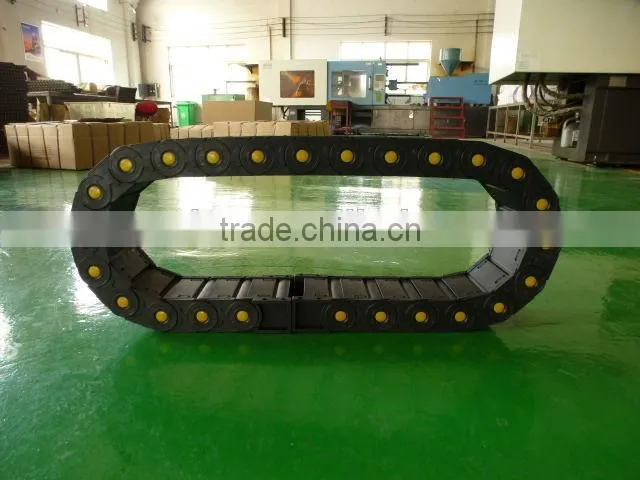

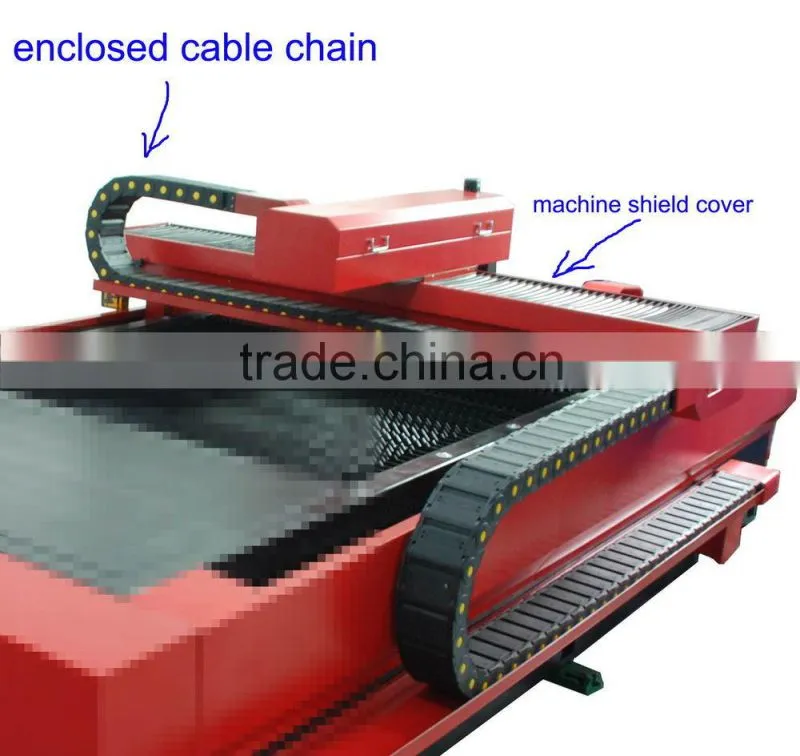

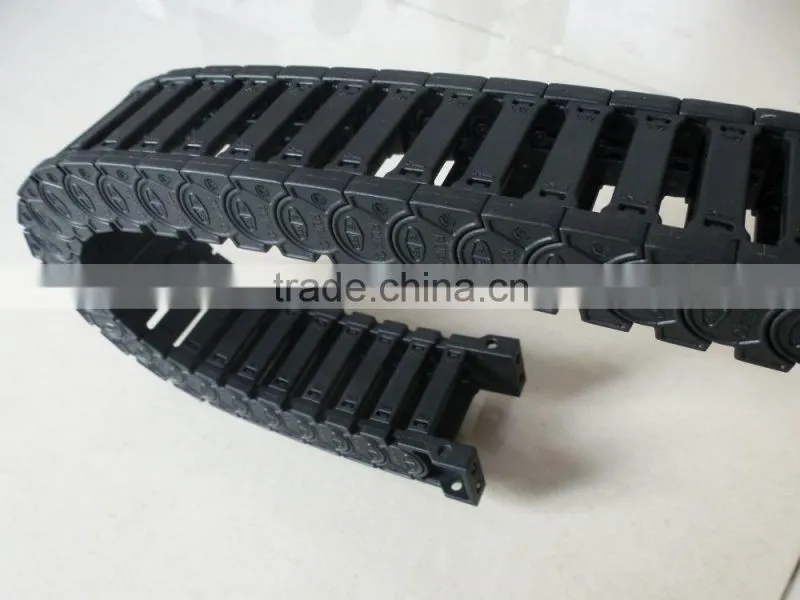

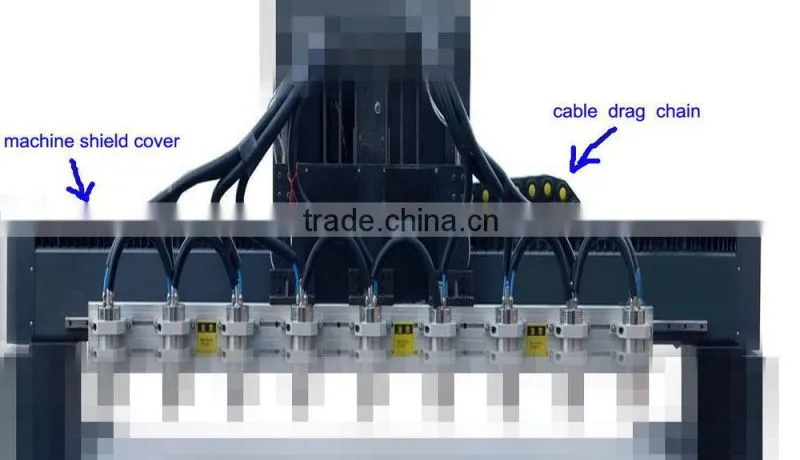

Characteristics and Applications of cable drag chains made of cable drag chain

The steel cable carrier can adapt to max.moving speed of 40m/min
When at the max moving speed , the sound pressure of noises shal not be greater than 68 db
The service life of the drag chain shall not be less than 1 million times(reciprocating)

type	TL30	TL45	TL65	TL80	TL95	TL115	TL125	TL155	TL180	TL225	TL250
pitch	30	45	65	80	95	115	125	155	180	225	250
bending radius	40	50,75, 90,114,145	75,90, 115,125, 145,185	100,115, 125,145, 185,200, 250,300	115,145, 200,250,300	145,200, 225,250, 300,350	200,250, 300,350, 470,500, 575,700, 750	200,250, 300,350, 450,500, 600	250,300, 350,450, 490,600, 650	400,450, 600,750, 800,850, 1000	400,4450, 500,600, 750,800, 1000
Min width of cable carrier	40	35	50	55	60	70	80	90	100	160	190
height of cable carrier	25	32	44	56	70	86	100	120	144	200	220
length of cable carrier	asd your request
max hole diameter of support plate	10		30	35	48	63	68	97	110	146	166
non support range	3	4	5	8	9	10	10	10	10	12	14
