RUIAO Small Size Cnc Plastic Cable Chain

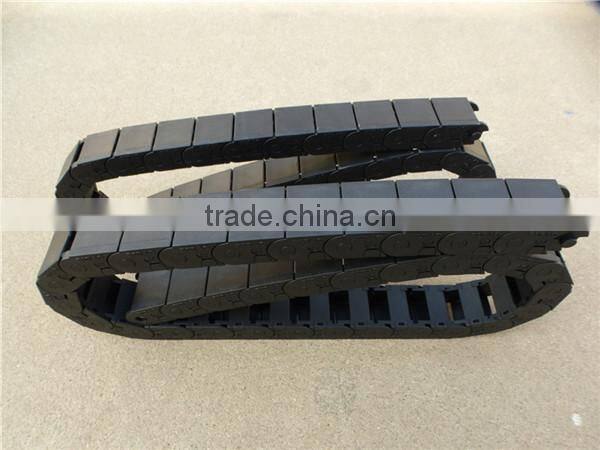

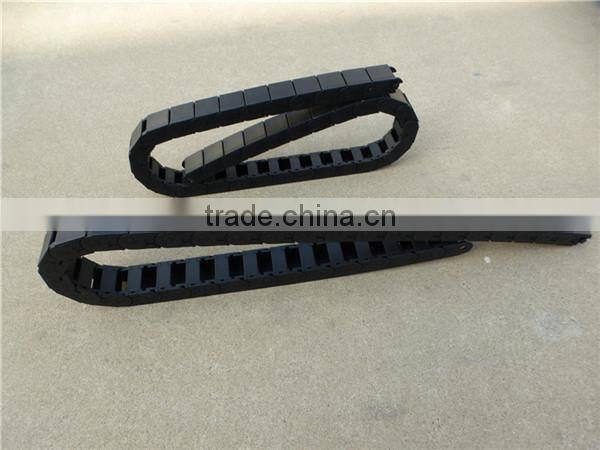

RUIAO small size cnc plastic cable chain

1.The small size plastic cable chain can be used for such locations where  reciprocating motions are required  so that internally  installed  cables ,oil pipes ,gas tubes and water  tubes can be dragged  an protected .

2.The appearance  of the flexible cable channel looks like the crawler  of a tank consisting of certain number of joints,they are freely turned roud.

3.Spacers are not available for these small ones.

4.Material :reinforced nylon

5.resistance :oil and salt resistance

6.service :under normal conditions,5 million reciprocating motions can be reached

Principle for selecting  small size plastic cable chain

1.       inner height :take the most thick piece of the internally installed cable ,oil pipe,gas pipe or water pipe as the reference height plus 10%of the space height at least as the inner height HI.if overlapping ,take the overlapped height as the actual height .

2.       inner width :take the sum of the outside diameter of the thicker cables ,oil pipe,gas pipe or water pipe as the reference of the inner width and leave at least 10% of the space as a margin

3.       radius of a bend :take the biggest radius of a bend of a cable ,oil pipe,gas pipe or water pipe as a reference value and leave 10%of the space as a margin
