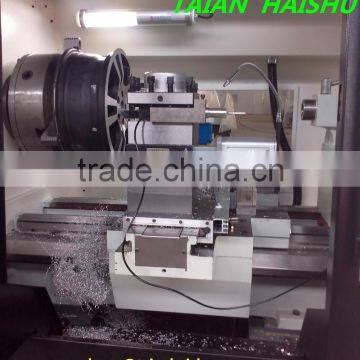

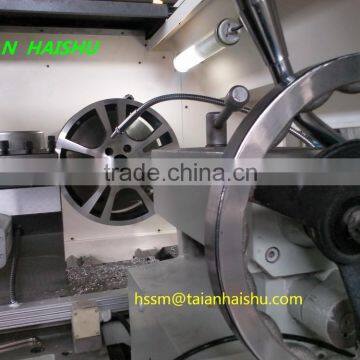

cnc machine for alloy wheels CK6190W rim repair machine
1.Technical parameters
Project name |
Unit |
Technical paramaters |
Max. wheel diameter |
Inch |
34" |
Max. workpiece length |
mm |
750 |

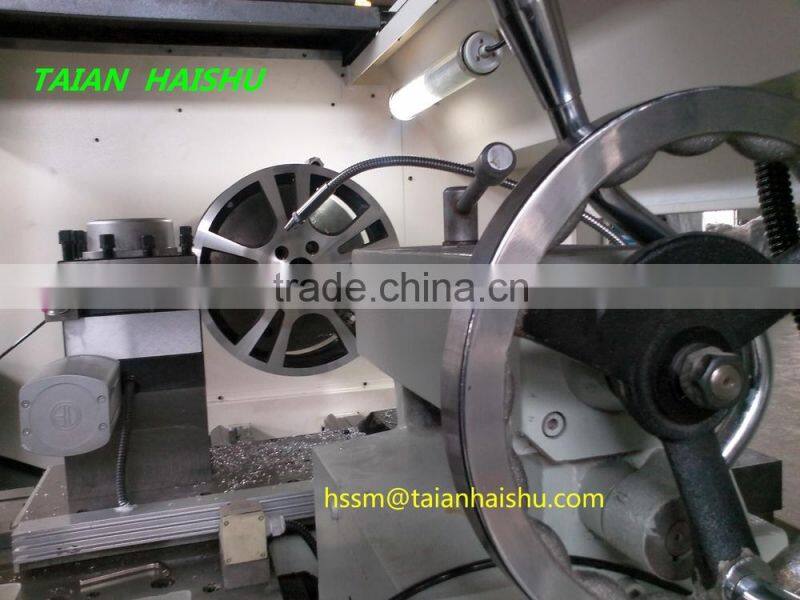

Probe measuring direction |
|
X,Z |
Probe needle |
mm |
φ3 × 40, φ6 × 50, or optional |
Machning accuracy |
|
IT6~IT7 |
Surface roughness |
um |
Ra0.8~1.6 |
Main transmission form |
|
Independent spindle; frequency conversion stepless |
Range of spindle speed |
rpm |
150~2000 |
Main motor power |
kw |
11 |
Fast-moving feed |
mm/min |
X - axis:5000 Z - axis:8000 |
Repeat positioning accuracy |
mm |
X - axis:0.01 Z - axis:0.015 |

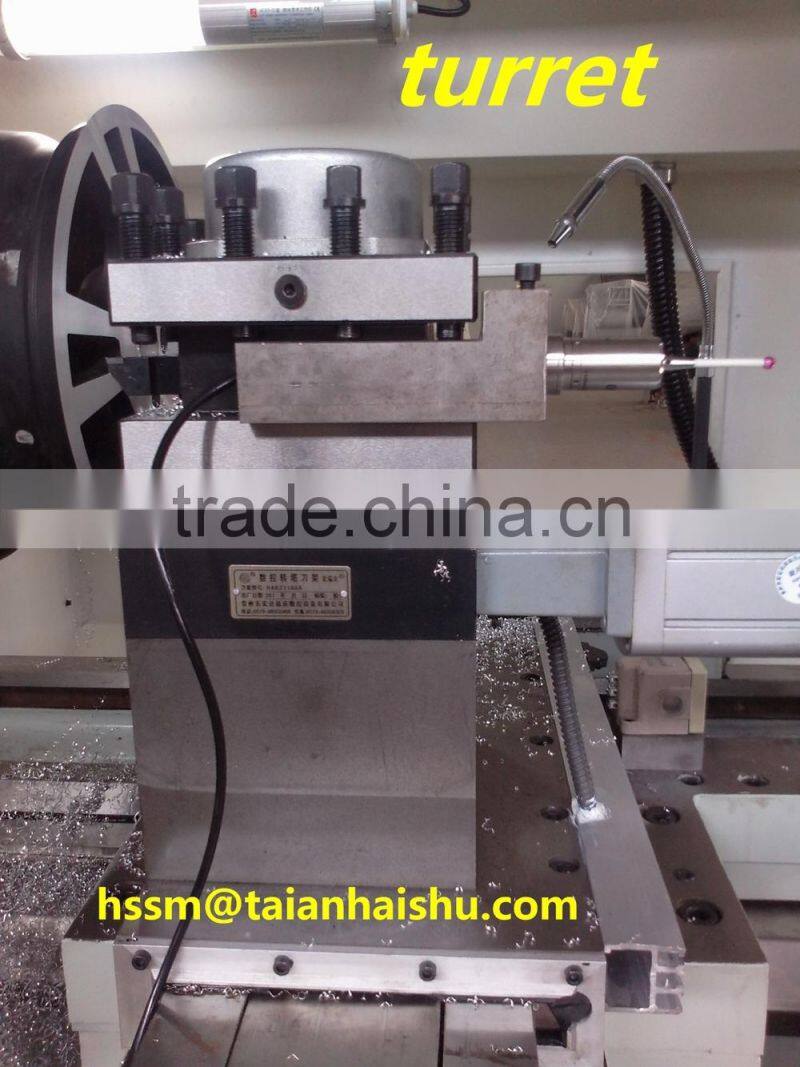

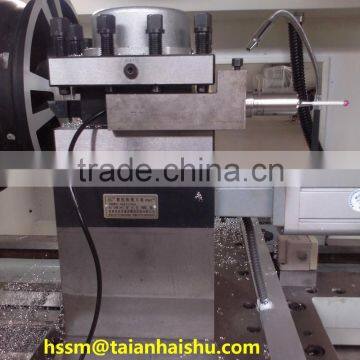

Turret form |
|
4 station electric turret |
Repeat positioning accuracy |
mm |
0.008 |
Section of turning tool |
mm |
25×25 |
|
The size of the machine (L×W×H) |
mm |
2700×1880×2015 |
Net weight of the machine |
4000 |
|
2. Main features
1.Achieve the wheel surface profile measurement and data collection and Program Optimization,
2.Automatic precision repair and machining in accordance with the curve of the wheel surface
3.Spindle frequency stepless speed;
4.X / Z axis servo drive;
5.Manual jaw self-centering chuck;
6.Machine guard full protection;
7.Automatic oil lubrication.
3. Uses

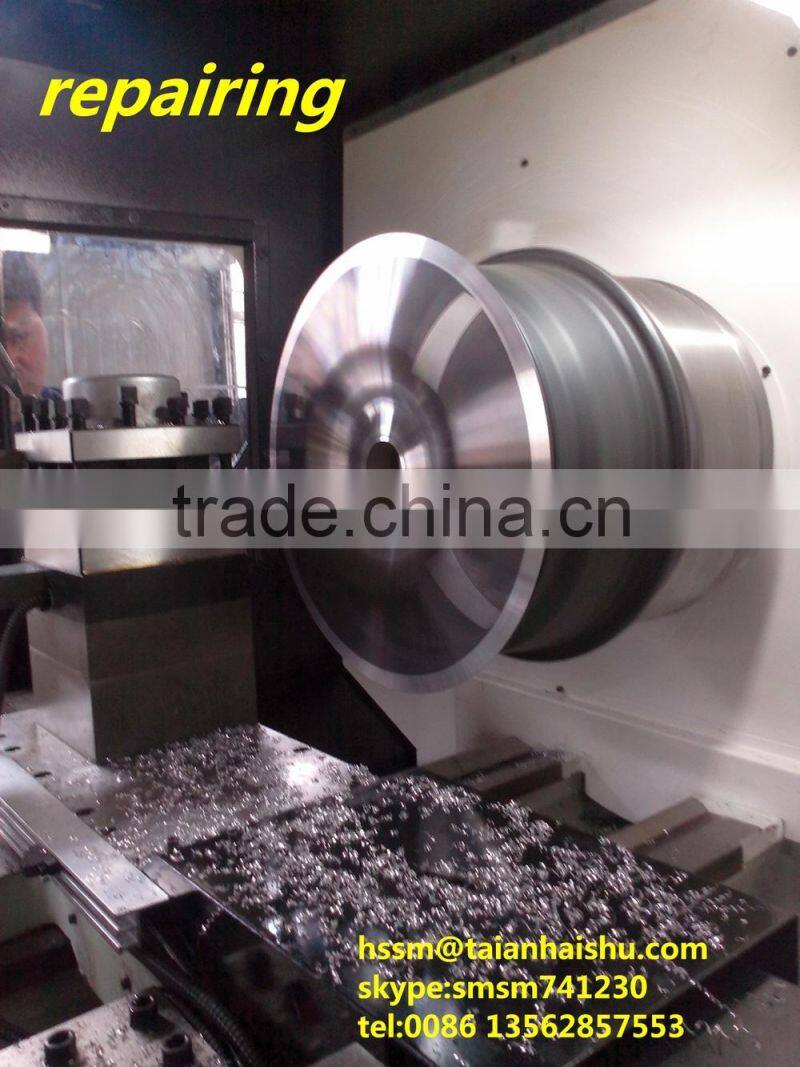

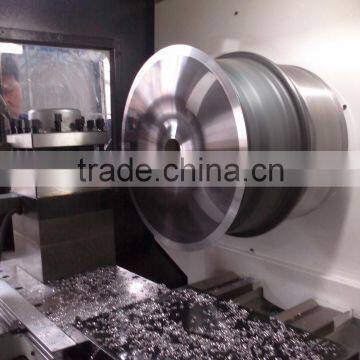

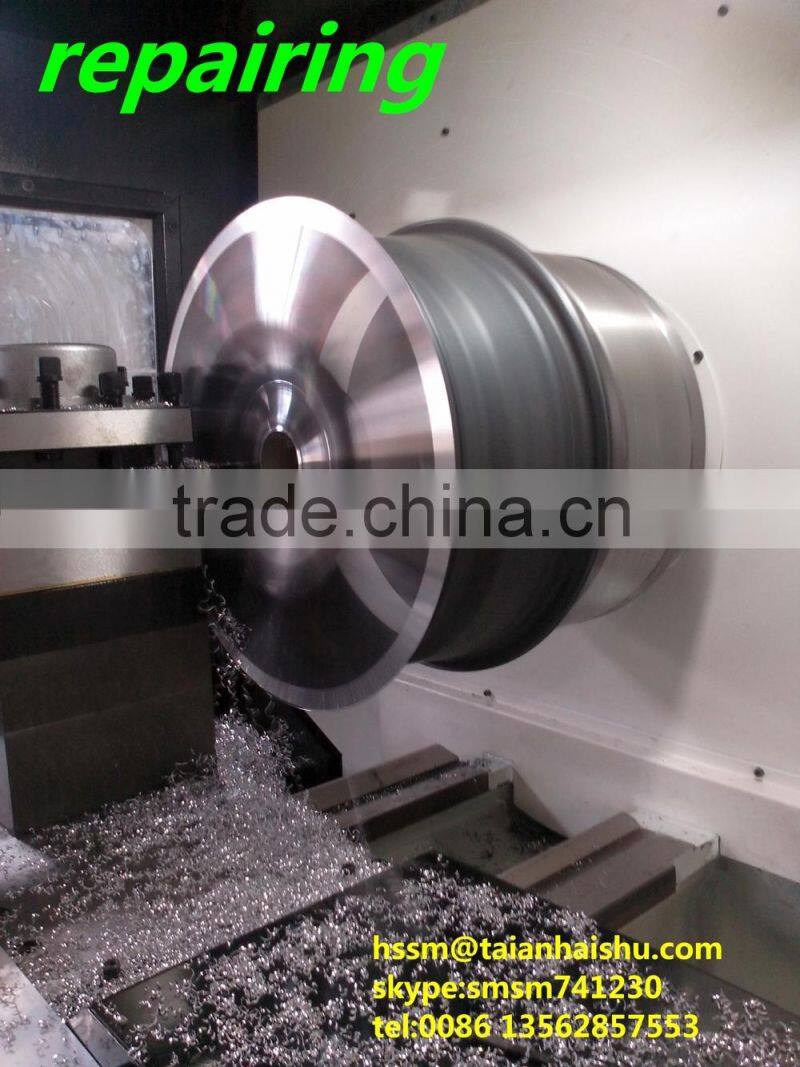

1.The machine tool suitable for High-precision turning and repair processing for surface of car wheel.
2.The machine tool has also the function of the general CNC lathes .
“HAISHU”wheel repair curve optimization software features
1.The software has two-way curve optimization features of the X and Z
direction,can achieve the curve optimization of the wheel face
and circumference (rim) surfaces.
2.According to the wheel CAD drawings, modified the curves be generated
by collection points of the wheel surface. modify the curve of measurement
acquisition point generating ofwheel surface.
3.According to the point of collection from the surface of the wheel, you can
automatically generate a curve, you can also manually modify and optimize
the curve.
4.The software can display multiple languages, adapt to customers in
different countries.
5.The software is self-developed, design can be personalized according
to customer requirements.
6.The software requires no special installation, open to use, operation is
very simple.
7.The software enables to a self-set for safety distance of advance and
retreat knife.
GUARANTEE AND AFTER-SALE SERVICES:
1.one year guarantee for whole machine except of CNC system, which guarantee is three years
2.24-hours technical support by E-mail or telephone
3.User-friendly English software or Russian or Spanish, Users manuals and Detailed Videos/CD
4.Provide extra accessories for the machine
5.Also provide service of make program according to your drawings
6.Customized or special design is OK.
If you are interested in cnc machine for alloy wheels CK6190W rim repair machine, welcome to leave a message or send the inquiry to understand the details of machine.
Wheel wire drawing effect
