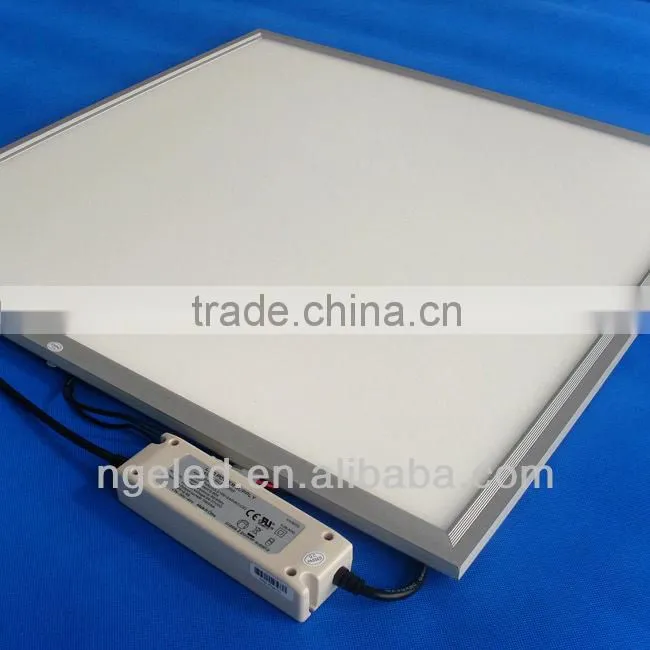

CE RoHS 600X600 ultra slim 0-10V dimming 48w real led panels
Product Features of CE RoHS 600X600 ultra slim 0-10V dimming 48w real led panels
- LED:Taiwan Epistar 3014 SMD, light efficiency of LED panel 85lm/w;
- Driver: Long Bright 0-10V dimming drivers, PF>0.95;
- Excellent PMMA optical light guide panels, very uniform lighting;
- Patent design frame, easy installation for any application;
- Side emitting model, super light and thickness 9mm;
- 0-10V dimming design for all range;
- Beam angle:>110°, Ra>80, IP44, CLASS II
- Certificate: CE, RoHS
- Warranty: 3 years
Installation types:
1. Normal recessed installation;
2. Steel wires installation;
3. Spring clips installation;
4. Ceiling mounted by aluminum frame.
Technical Parameters of CE RoHS 600X600 ultra slim 0-10V dimming 48w real led panels
Product Name |
real led panels |
Item Number |
NGE-P0606-S48W |
Rated Power |
48W |
Input Voltage |
AC100-240V |
Power Factor |
>0.95 |
LED Type |
Taiwan Epistar 3014 SMD |
Luminous Flux |
3840-4320LM |
Color Temperature |
3000-3500K,4000-4500K,5500-6500K |
CRI |
> Ra80 |
Product Size |
595x595x9mm |
Dimming model |
0-10V dimming |
Main Materials |
Oxidized aluminum+PMMA light guide panel |
Temperature |
-40~60°C |
Lifetime |
>35,000hours |
Warranty |
3 years |
Certificate |
CE,RoHS |
Product Pictures of CE RoHS 600X600 ultra slim 0-10V dimming 48w real led panels
Certificates of CE RoHS 600X600 ultra slim 0-10V dimming 48w real led panels
Series Products of CE RoHS 600X600 ultra slim 0-10V dimming 48w real led panels
| Size (mm) | Item No. | Input Voltage | Power | Lumen (LM) | Color Temperature | LED Type |
| 595X595mm (600X600) |
NGE-P0606-S24W | AC100-240V, 50-60Hz | 24W | 1920-2160lm | 3000-3500K 4000-4500K 5500-6500K | 3014 SMD |
| NGE-P0606-S30W | 30W | 2400-2700LM | ||||
| NGE-P0606-S36W | 36W | 2880-3240LM | ||||
| NGE-P0606-S48W | 48W | 3840-4320LM | ||||
| NGE-P0606-S60W | 60W | 4800-5400LM | ||||
| 1195X295mm (1200X300) |
NGE-P1203-S30W | 30W | 2400-2700LM | |||
| NGE-P1203-S36W | 36W | 2880-3240LM | ||||
| NGE-P1203-S48W | 48W | 3840-4320LM | ||||
| NGE-P1203-S60W | 60W | 4800-5400LM | ||||
| 295X295mm (300X300) |
NGE-P0303-S12W | 12W | 960-1080LM | |||
| NGE-P0303-S18W | 18W | 1440-1620LM | ||||
| NGE-P0303-S24W | 24W | 1920-2160LM | ||||
| 595X295mm (600X300) |
NGE-P0603-S18W | 18W | 1440-1620LM | |||
| NGE-P0603-S24W | 24W | 1920-2160LM | ||||
| NGE-P0603-S30W | 30W | 2400-2700LM | ||||
| 620X620mm (600X600) Germany Size |
NGE-P0606G-S36W | 36W | 2880-3240LM | |||
| NGE-P0606G-S48W | 48W | 3840-4320LM | ||||
| NGE-P0606G-S60W | 60W | 4800-5400LM | ||||
| 1195X595mm (1200X600) |
NGE-P1206-S48W | 48W | 3840-4320LM | |||
| NGE-P1206-S60W | 60W | 4800-5400LM |
Packing Information of CE RoHS 600X600 ultra slim 0-10V dimming 48w real led panels
Production pictures of CE RoHS 600X600 ultra slim 0-10V dimming 48w real led panels
Manufacturer of CE RoHS 600X600 ultra slim 0-10V dimming 48w real led panels
NGE Technology Limited is a professional indoor LED lighting manufacturer and solutions provider.
We are specialized in the LED shop lighting, office Lighting, commercial lighting, LED industrial lighting and residential lighting research and manufacture. Especially, LED shop light, LED tube, LED panel, LED downlight, LED high bay, LED floodlight and LED bulb products are most popular products for us.
NGE Technology has more than 180 experienced workers,15 persons' R&D team and 8000 square workshop. It is equiped with auto SMT machines, reflow-soldering machine, integrating sphere, goniophotometers machine and inspection instruments, etc.
NGE Technology endeavors to develop new LED lighting products. Our expert R&D team have abundant knowledge of electronic technology, structure technology, thermal management as well as optics design. Almost all of our products are CE certificated and RoHS compliant, and our LED Shop light are UL, PSE, SAA and C Tick approved.
NGE Technology has an excellent overseas sales and after-sales team. NGE products are very popular in Europe, America, Australia, Japan, Middle East and Southeast Asia market now.
We have successfully achieved over 50% annual growth in the turnover in the past 3 years. Let's work together to devote to the new, green and eco-friendly cause for the world.
