Specifications
slim led downlightEpistar SMD,Ultra-thin
PF>0.90,CRI>80,100lm/w
3 years warranty
CE,RoHS approved
CE RoHS CRI>80 5 Inch slim led downlight, 12w slim led downlight
Product Features for CE RoHS CRI>80 5 Inch slim led downlight, 12w slim led downlight
1.LED:High Brightness Epistar 2835 SMD,CRI>80,light efficiency >100lm/w;
2.Excellent driver:Conversion efficiency above 85% and PF >0.90;
3.Thermal technology:Advanced technology with first class radiator materials;
4.Perfect light:Ultra-thin casing design,super uniform and soft light;
5.Certificate:CE approval and RoHS compliant;
6.Warranty:3 years.

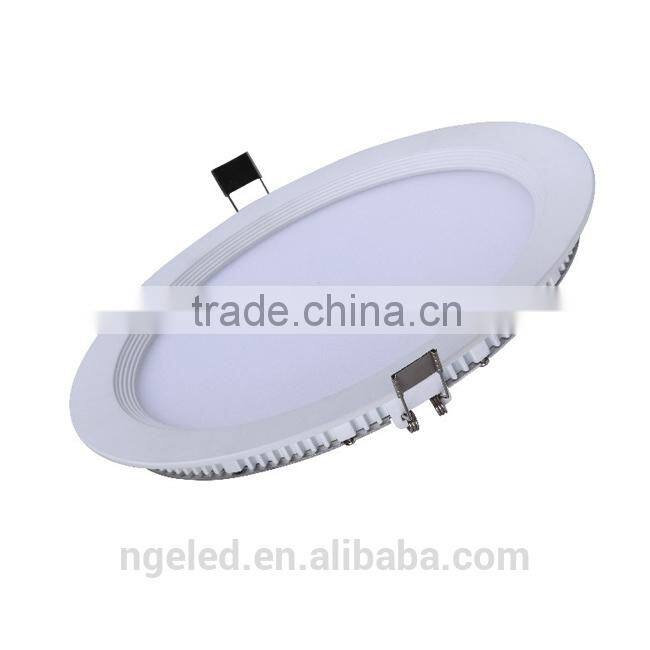

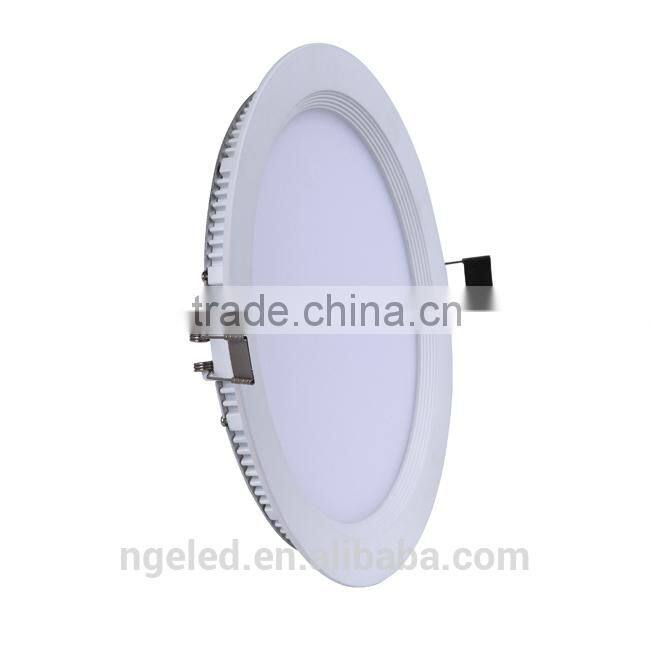

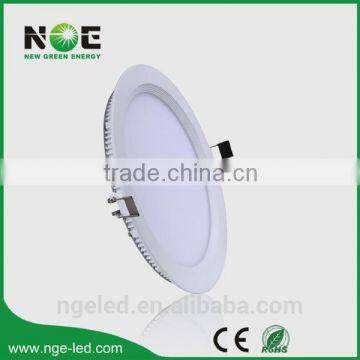

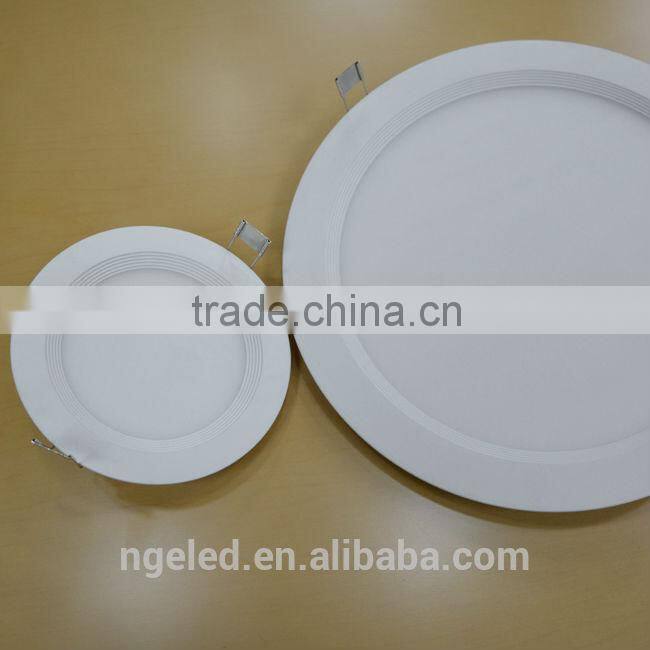

Product pictures of CE RoHS CRI>80 5 Inch slim led downlight, 12w slim led downlight
Technical parameters for CE RoHS CRI>80 5 Inch slim led downlight, 12w slim led downlight
| Product Name | slim led downlight |
| Item Number | NGE-SMD03-D12W5 |
| Rated Power | 12W |
| Input Voltage | AC85-265V |
| Power Factor | >0.9 |
| LED Type | Epistar 2835 SMD |
| Luminous Flux | 780lm±5% |
| Color Temperature | 3000-3500K,4000-4500K,5500-6500K |
| CRI | Ra>80 |
| Product Size | φ180*H18mm |
| Cutout | φ160mm |
| Main Materials | Aluminum alloy and tempered glass |
| Working Temperature | -40~60°C |
| Lifetime | L70>35,000hours |
| Warranty | 3 years |
| Certificate | CE,RoHS |
Series products of CE RoHS CRI>80 5 Inch slim led downlight, 12w slim led downlight
| Part No. | Specification | |||||||
| Rated Power | Input Voltage | Color Temperature | Luminous flux | Size | Cutout | Power Factor | Equal to traditional downlight | |
| NGE-SMD03-D8W4 (4 Inch) | 8W | AC85~265V 50~60Hz | 3000k-3500k | 640lm±5% | φ145*H18mm | φ130mm | >0.90 | 20W |
| 4000k-4500k | ||||||||
| 5500k-6500k | ||||||||
| NGE-SMD03-D12W5 (5 Inch) | 12W | AC85~265V 50~60Hz | 3000k-3500k | 960lm±5% | φ180*H18mm | φ160mm | >0.90 | 30W |
| 4000k-4500k | ||||||||
| 5500k-6500k | ||||||||
| NGE-SMD03-D15W8 (8 Inch) | 15W | AC85~265V 50~60Hz | 3000k-3500k | 1200lm±5% | φ240*H18mm | φ220mm | >0.90 | 40W |
| 4000k-4500k | ||||||||
| 5500k-6500k | ||||||||
| NGE-SMD03-D18W8 (8 Inch) | 18W | AC85~265V 50~60Hz | 3000k-3500k | 1440lm±5% | φ240*H18mm | φ220mm | >0.90 | 45W |
| 4000k-4500k | ||||||||
| 5500k-6500k | ||||||||
| NGE-SMD03-D20W12 (12 Inch) | 20W | AC85~265V 50~60Hz | 3000k-3500k | 1600lm±5% | φ300*H18mm | φ280mm | >0.90 | 50W |
| 4000k-4500k | ||||||||
| 5500k-6500k | ||||||||
Certificates for CE RoHS CRI>80 5 Inch slim led downlight, 12w slim led downlight
Manufacturer of CE RoHS CRI>80 5 Inch slim led downlight, 12w slim led downlight
NGE Technology Limited is a professional indoor LED lighting manufacturer and solutions provider.
We are specialized in the LED shop lighting, office Lighting, commercial lighting, LED industrial lighting and residential lighting research and manufacture. Especially, LED shop light, LED tube, LED Panel light, LED downlight, LED high bay, LED floodlight and LED bulb products are most popular products for us.
NGE Technology has more than 180 experienced workers,15 persons' R&D team and 8000 square workshop. It is equiped with auto SMT machines, reflow-soldering machine, integrating sphere, goniophotometers machine and inspection instruments, etc.
NGE Technology endeavors to develop new LED lighting products. Our expert R&D team have abundant knowledge of electronic technology, structure technology, thermal management as well as optics design. Almost all of our products are CE certificated and RoHS compliant, and our LED Shop light are UL, PSE, SAA and C Tick approved.
NGE Technology has an excellent overseas sales and after-sales team. NGE products are very popular in Europe, America, Australia, Japan, Middle East and Southeast Asia market now.
We have successfully achieved over 50% annual growth in the turnover in the past 3 years. The turnover in 2012 is estimated to be 12 million US dollars. Let's work together to devote to the new, green and eco-friendly cause for the world.
