Specifications
led downlight 8inchEpistar SMD,100lm/w,CRI>80.
PF>0.90,uniform light,no flare
3 years warranty
CE and RoHS
CE RoHS Epistar SMD 20w led downlight 8inch
Product Features for CE RoHS Epistar SMD 20w led downlight 8inch
1. LED: High Brightness Epistar 5730 LED, light efficiency >100lm/w, CRI>80;
2. Excellent driver: Conversion efficiency above 85% and power factor >0.90;
3. Perfect light: Used low power SMD LED, uniform light and no flare;
4. Thermal technology: Aluminum radiator inside and PC outside;
5. Certificate: CE approval and RoHs compliant;
6. Warranty: 3 years.
.

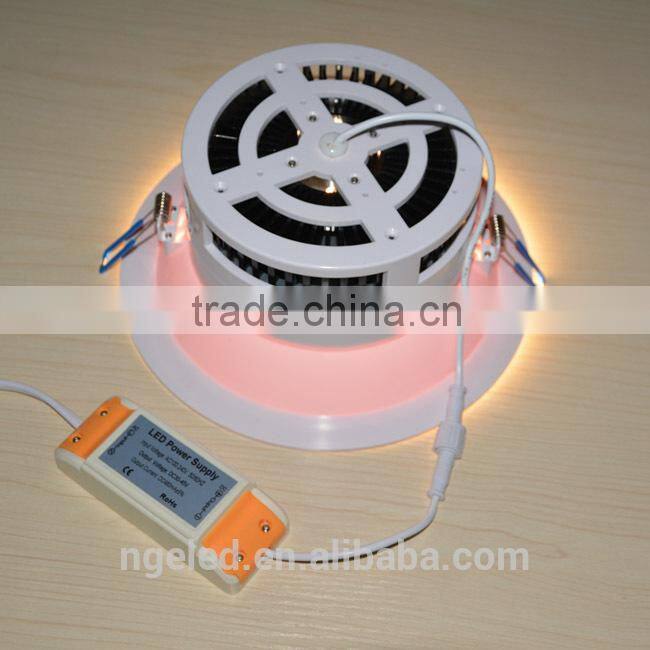

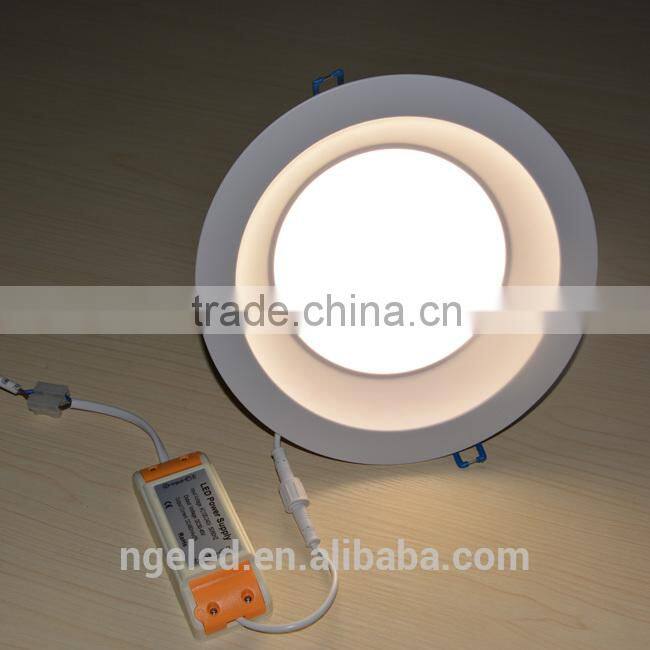

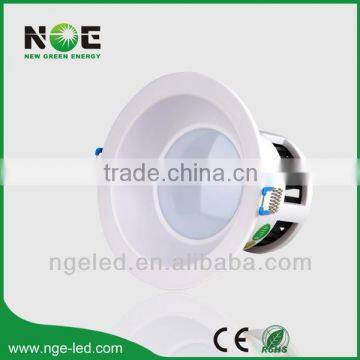

Product pictures of CE RoHS Epistar SMD 20w led downlight 8inch
Technical parameters of CE RoHS Epistar SMD 20w led downlight 8inch
| Product Name | led downlight 8inch |
| Item Number | NGE-SMD01-D20W8 |
| Rated Power | 20W |
| Input Voltage | AC85-265V 50-60Hz |
| Power Factor | >0.9 |
| LED Type | Epistar 5730 LED |
| LED Quantity | 48PCS |
| Luminous Flux | 1600±100LM |
| Color Temperature | 3000-3500K,4000-4500K,5500-6500K |
| CRI | Ra>80 |
| Product Size | φ230*H100mm |
| Cutout | φ200mm |
| Main Materials | Aluminum, tempered glass |
| Working Temperature | -40~60°C |
| Lifetime | >35,000hours |
| Warranty | 3 years |
| Certificate | CE, RoHS |
Series product of CE RoHS Epistar SMD 20w led downlight 8inch
| Part No. | Specification | ||||||||
| Rated Power | Input Voltage | Color Temperature | Luminous flux | Size | Cutout | Power Factor | Equal to traditional downlight | LED Brand | |
| NGE-SMD01-D5W3 (3 Inch) | 5W | AC85~265V 50~60Hz | 3000k-3500k | 400lm±50lm | φ125*H77mm | φ90mm | >0.90 | 13W | 10pcs Epistar 5730 LED |
| 4000k-4500k | |||||||||
| 5500k-6500k | |||||||||
| NGE-SMD01-D8W4 (4 Inch) | 8W | AC85~265V 50~60Hz | 3000k-3500k | 640lm±50lm | φ140*H93mm | φ120mm | >0.90 | 20W | 14pcs Epistar 5730 LED |
| 4000k-4500k | |||||||||
| 5500k-6500k | |||||||||
| NGE-SMD01-D12W5 (5 Inch) | 12W | AC85~265V 50~60Hz | 3000k-3500k | 960lm±100lm | φ180*H95mm | φ150mm | >0.90 | 30W | 24pcs Epistar 5730 LED |
| 4000k-4500k | |||||||||
| 5500k-6500k | |||||||||
| NGE-SMD01-D15W6 (6 Inch) | 15W | AC85~265V 50~60Hz | 3000k-3500k | 1200lm±100lm | φ190*H95mm | φ170mm | >0.90 | 38W | 36pcs Epistar 5730 LED |
| 4000k-4500k | |||||||||
| 5500k-6500k | |||||||||
| NGE-SMD01-D18W6 (6 Inch) | 18W | AC85~265V 50~60Hz | 3000k-3500k | 1440lm±100lm | φ190*H95mm | φ170mm | >0.90 | 45W | 36pcs Epistar 5730 LED |
| 4000k-4500k | |||||||||
| 5500k-6500k | |||||||||
| NGE-SMD01-D15W8 (8 Inch) | 15W | AC85~265V 50~60Hz | 3000k-3500k | 1200lm±100lm | φ230*H100mm | φ200mm | >0.90 | 38W | 36pcs Epistar 5730 LED |
| 4000k-4500k | |||||||||
| 5500k-6500k | |||||||||
| NGE-SMD01-D20W8 (8 Inch) | 20W | AC85~265V 50~60Hz | 3000k-3500k | 1600lm±100lm | φ230*H100mm | φ200mm | >0.90 | 50W | 48pcs Epistar 5730 LED |
| 4000k-4500k | |||||||||
| 5500k-6500k | |||||||||
Certificates of CE RoHS Epistar SMD 20w led downlight 8inch
1. Packaging for 20w led downlight 8inch: 12pcs/ctn (13KG);
2. Shipping for 20w led downlight 8inch: by express, by air, by sea
Any quantity of sample 20w led downlight 8inch is available;
Lingting solution for 20w led downlight 8inch can be provided;
Good and professional after-sales services for 20w led downlight 8inch.
The manufacturer of CE RoHS Epistar SMD 8 inch 20w led downlight 8inch
NGE Technology Limited is a professional indoor LED lighting manufacturer and solutions provider.
We are specialized in the LED shop lighting, office Lighting, commercial lighting, LED industrial lighting and residential lighting research and manufacture. Especially, LED shop light, LED tube, LED Panel light, LED downlight, LED high bay, LED floodlight and LED bulb products are most popular products for us.
NGE Technology has more than 180 experienced workers,15 persons' R&D team and 8000 square workshop. It is equiped with auto SMT machines, reflow-soldering machine, integrating sphere, goniophotometers machine and inspection instruments, etc.
NGE Technology endeavors to develop new LED lighting products. Our expert R&D team have abundant knowledge of electronic technology, structure technology, thermal management as well as optics design. Almost all of our products are CE certificated and RoHS compliant, and our LED Shop light are UL, PSE, SAA and C Tick approved.
NGE Technology has an excellent overseas sales and after-sales team. NGE products are very popular in Europe, America, Australia, Japan, Middle East and Southeast Asia market now.
We have successfully achieved over 50% annual growth in the turnover in the past 3 years. The turnover in 2012 is estimated to be 12 million US dollars. Let's work together to devote to the new, green and eco-friendly cause for the world.
