Specifications
square led downlight housingBridgelux COB,100lm/w
PF>0.9,THD<15%
Dimmable available
CE,RoHS,SAA,C-Tick
100lm/w PF>0.9 60W Bridgelux COB square led downlight housing
Product Features of 100lm/w 60W Bridgelux COB rectangular led downlight
1. High Lumen Brigelux LED, complete lighting >100lm/w,.
2. Excellent Driver wide AC100V~277V, PF>0.9, low THD<15%.
3. Ultra-low light degradation in full compliance with U.S.Energy Star requirements, L70>35,000hrs.
4. Good thermal structure design, lifespan last longer than 35,000hrs.
5. Dimmable and emergency version available for choice.
6. 3 years warranty, CE, RoHS, SAA approved.
7. Direct replacement for Philips rectangular downlight HIT-DE MBS200,QBS200,SBS200.
Product Pictures for 100lm/w PF>0.9 60W Bridgelux COB square led downlight housing
Technical Parameters for 100lm/w PF>0.9 60W Bridgelux COB square led downlight housing
| Product Name | LED rectangular downlight |
| Item Number | NGE-COB01-RD60W |
| Rated Power | 60W |
| Input Voltage | AC100~277V, 50-60Hz |
| Power Factor | >0.95 |
| LED Type | Bridgelux COB LED |
| Luminous Flux | 5000±100LM |
| Color Temperature | 3000-3500K,4000-4500K,5500-6500K |
| CRI | Ra>83 |
| Product Size | 240*145*143mm |
| Cutout | 215*125mm |
| Main Materials | Aluminum alloy and PC |
| Working Temperature | -40~60°C |
| Lifetime | >35,000hours |
| Warranty | 3 years |
| Certificate | CE,RoHS,SAA,C-Tick |
Production pictures for 100lm/w PF>0.9 60W Bridgelux COB square led downlight housing

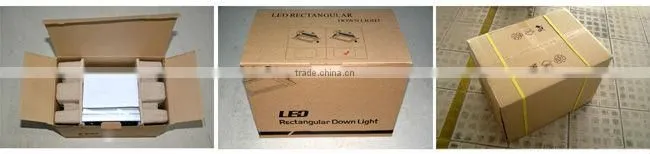

Packing information for 100lm/w PF>0.9 60W Bridgelux COB square led downlight housing
Series Products for 100lm/w PF>0.9 60W Bridgelux COB square led downlight housing
| Item No. | Watt | Input Voltage | Lumens | Size | Cutout | PF |
| NGE-COB01-RD20W | 20 | AC100-240 | 1900±100LM | 240*145*135mm | 227mmx130mm | >0.9 |
| NGE-COB01-RD28W | 28 | AC100-240 | 2450±100LM | 240*145*135mm | 227mmx130mm | >0.9 |
| NGE-COB01-RD38W | 38 | AC100-240 | 3200±100LM | 240*145*135mm | 227mmx130mm | >0.9 |
| NGE-COB01-RD48W | 48 | AC100-240 | 4000±100LM | 240*145*135mm | 227mmx130mm | >0.9 |
| NGE-COB01-RD60W | 60 | AC100-277 | 5000±100LM | 240*145*143mm | 215mmx125mm | >0.9 |
NGE Technology Limited is a professional indoor LED lighting manufacturer and solutions provider.
We are specialized in the LED shop lighting, office Lighting, commercial lighting, LED industrial lighting and residential lighting research and manufacture. Especially, rectangular led downlight, LED shop light, LED tube, LED Panel light, L ED downlight, LED high bay, LED floodlight and LED bulb products are most popular products for us.
NGE Technology owns more than 180 experienced workers,15 persons' R&D team and 8000 square workshop. It is equiped with auto SMT machines, reflow-soldering machine, integrating sphere, goniophotometers machine and inspection instruments, etc.
NGE Technology endeavors to develop new LED lighting products. Our expert R&D team have abundant knowledge of electronic technology, structure technology, thermal management as well as optics design. Almost all of our products are CE certificated and RoHS compliant, and our LED Shop light are UL, PSE, SAA and C Tick approved.
NGE Technology has an excellent overseas sales and after-sales team. NGE products are very popular in Europe, America, Australia, Japan, Middle East and Southeast Asia market now.
We have successfully achieved over 50% annual growth in the turnover in the past 3 years. The turnover in 2012 is estimated to be 12 million US dollars. Let's work together to devote to the new, green and eco-friendly cause for the world.
