85lm/w CRI>80 600x600 square surface mounted led panel light
Product Features of 85lm/w CRI>80 600x600 square surface mounted led panel light
- LED: Taiwan Epistar 2835 SMD, light efficiency of LED panel 85lm/w;
- Driver: TUV, CE, SAA approved constant current drivers, PF>0.95;
- Excellent PMMA optical light guide panels, very uniform lighting;
- Patent design frame, easy installation for any application;
- Side emitting model, super light and thickness 11mm;
- Triac and 0-10V dimming models are available;
- Beam angle:>110°, Ra>80, IP44, CLASS II
- Certificate: CE, RoHS
- Warranty: 3 years
Installation types:
1. Normal recessed installation;
2. Steel wires installation;
3. Spring clips installation;
4. Ceiling mounted by aluminum frame.
Technical Parameters of 85lm/w CRI>80 600x600 square surface mounted led panel light
Product Name |
600 x 600 led panel ce tuv |
Item Number |
NGE-P0606-S48W |
Rated Power |
48W |
Input Voltage |
AC100-240V |
Driver |
TUV, CE, SAA approved |
Power Factor |
>0.95 |
LED Type |
Taiwan Epistar 2835 SMD |
Luminous Flux |
4080lm±5% |
Color Temperature |
3000-3500K,4000-4500K,5500-6500K |
CRI |
> Ra80 |
Product Size |
595x595x11mm |
Dimming model |
Triac, 0-10V dimming |
Main Materials |
Oxidized aluminum+PMMA light guide panel |
Temperature |
-40~60°C |
Lifetime |
L70>35,000hours |
Warranty |
3 years |
Certificate |
CE,RoHS |
Trade Info
Trade Terms |
EXW, FOB, CIF |
| Payment Terms | T/T, Paypal, West Union, L/C |
| Payment Condition |
in advance for samples; 50% deposit and 50% balance paid for bulk order before shipment |
| Packing | Neutral carton |
| Delivery Time | 5-7 working days for samples; 15-20 working days for formal bulk order |
| Shipping | By sea, by air, by express |

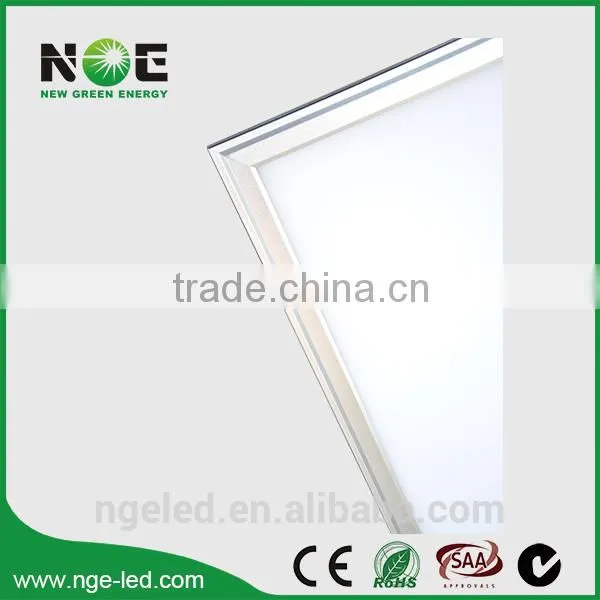

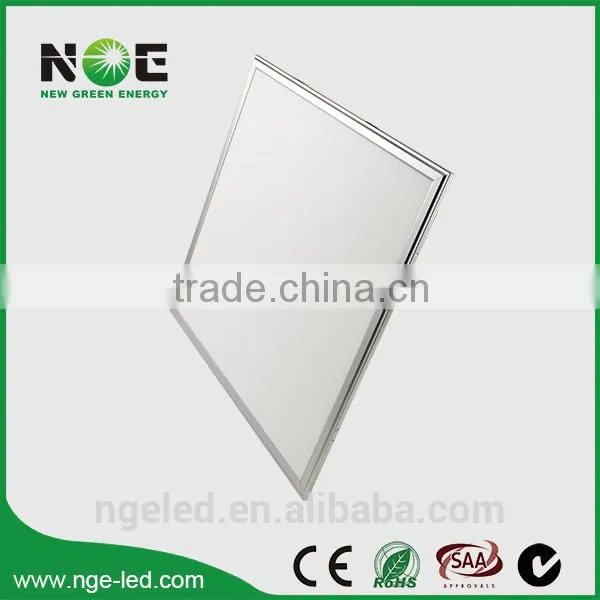

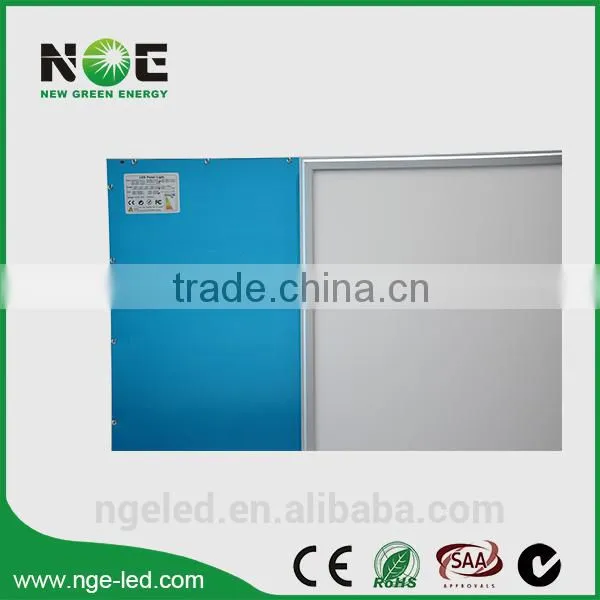

Product Pictures of 85lm/w CRI>80 600x600 square surface mounted led panel light
Certificates of 85lm/w CRI>80 600x600 square surface mounted led panel light
Series Products of 85lm/w CRI>80 600x600 square surface mounted led panel light
| Size (mm) | Item No. | Input Voltage | Power | Lumen (LM) | Color Temperature | LED Type |
| 595X595mm (600X600) |
NGE-P0606-S30W | AC100-240V 50-60Hz | 30W | 2550lm±5% | 3000-3500K 4000-4500K 5500-6500K | 2835 SMD |
| NGE-P0606-S36W | 36W | 3060lm±5% | ||||
| NGE-P0606-S42W | 42W | 3570lm±5% | ||||
| NGE-P0606-S48W | 48W | 4080lm±5% | ||||
| NGE-P0606-S60W | 60W | 5100lm±5% | ||||
| 1195X295mm (1200X300) |
NGE-P1203-S36W | 36W | 3060lm±5% | |||
| NGE-P1203-S48W | 48W | 4080lm±5% | ||||
| NGE-P1203-S60W | 60W | 5100lm±5% | ||||
| 295X295mm (300X300) |
NGE-P0303-S12W | 12W | 1020lm±5% | |||
| NGE-P0303-S18W | 18W | 1530lm±5% | ||||
| 595X295mm (600X300) |
NGE-P0603-S18W | 18W | 1530lm±5% | |||
| NGE-P0603-S27W | 27W | 2295lm±5% | ||||
| 620X620mm (600X600) Germany Size |
NGE-P0606G-S36W | 36W | 3060lm±5% | |||
| NGE-P0606G-S48W | 48W | 4080lm±5% | ||||
| NGE-P0606G-S60W | 60W | 5100lm±5% | ||||
| 1195X595mm (1200X600) |
NGE-P1206-S60W | 60W | 5100lm±5% | |||
| NGE-P1206-S72W | 72W | 6120lm±5% |
Packing Information of 85lm/w CRI>80 600x600 square surface mounted led panel light

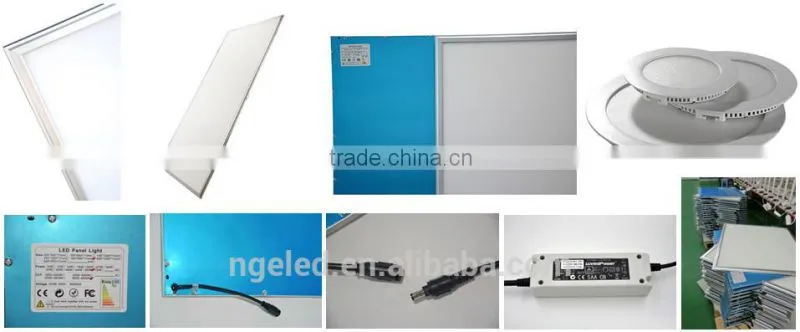

Production pictures of 85lm/w CRI>80 600x600 square surface mounted led panel light
Manufacturer of 85lm/w CRI>80 600x600 square surface mounted led panel light
NGE Technology Limited is a professional indoor LED lighting manufacturer and solutions provider.
We are specialized in the LED shop lighting, office Lighting, commercial lighting, LED industrial lighting and residential lighting research and manufacture. Especially, LED shop light, LED tube, LED panel, LED downlight, LED high bay, LED floodlight and LED bulb products are most popular products for us.
NGE Technology has more than 180 experienced workers,15 persons' R&D team and 8000 square workshop. It is equipped with auto SMT machines, reflow-soldering machine, integrating sphere, goniophotometers machine and inspection instruments, etc.
NGE Technology endeavors to develop new LED lighting products. Our expert R&D team have abundant knowledge of electronic technology, structure technology, thermal management as well as optics design. Almost all of our products are CE certificated and RoHS compliant, and our LED Shop light are UL, PSE, SAA and C Tick approved.
NGE Technology has an excellent overseas sales and after-sales team. NGE products are very popular in Europe, America, Australia, Japan, Middle East and Southeast Asia market now.
We have successfully achieved over 50% annual growth in the turnover in the past 3 years. Let's work together to devote to the new, green and eco-friendly cause for the world.
