Specifications
Samsung 5630 kitchens wall lights fittings1. SMD5630 CRI>85,85lm/w
2 ,PF>0.95, 12mm only
3. CE&RoHS,3 years
4. Factory price
Samsung 5630 led panel light 36w kitchens wall lights fittings
Product Features of Samsung 5630 led panel light 36w kitchens wall lights fittings
- LED: Taiwan 5630 SMD LED, CRI>85, above 85lm/w;
- Driver: High quality constant current drivers, PF>0.95
- Excellent PMMA optical light guide panels, very uniform lighting;
- Patent design frame, easy installation for any application;
- Side emitting model, super light and thickness 12mm;
- PWM and Triac and 1-10V dimming models are available;
- Beam angle:>110°, IP42, CLASS II
- Certificate: CE, RoHS
- Warranty: 3 years
Technical Parameters of Samsung 5630 led panel light 36w kitchens wall lights fittings
Product Name |
kitchens wall lights fittings |
Item Number |
NGE-P0606-S36W |
Rated Power |
36W |
Input Voltage |
AC110-240V |
Power Factor |
>0.95 |
LED Type |
Taiwan 5630 SMD LED |
LED Quantity |
88PCS |
Luminous Flux |
2700-3200LM |
Color Temperature |
3000-3500K,4000-4500K,5500-6500K |
CRI |
> Ra85 |
Product Size |
595x595x12mm |
Main Materials |
Oxidized aluminum+PMMA light guide panel |
Temperature |
-40~60°C |
Lifetime |
>35,000hours |
Warranty |
3 years |
Certificate |
CE,RoHS |
Product Pictures of Samsung 5630 led panel light 36w kitchens wall lights fittings
Certificates of Samsung 5630 led panel light 36w kitchens wall lights fittings

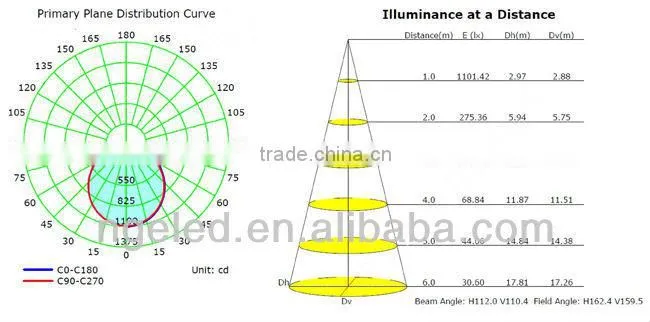

Test Report of Samsung 5630 led panel light 36w kitchens wall lights fittings
Series Products of Samsung 5630 led panel light 36w kitchens wall lights fittings
| Item No. | watt | input voltage | size | lumens | led quantity | led type |
| NGE-P0606-S27W | 27W | AC100-240V | 600*600mm | 600*600mm | 88 | 5630SMD |
| NGE-P0606-S36W | 36W | AC100-240V | 600*600mm | 600*600mm | 88 | 5630SMD |
| NGE-P0606-S42W | 42W | AC100-240V | 600*600mm | 600*600mm | 88 | 5630SMD |
| NGE-P0606-S48W | 48W | AC100-240V | 600*600mm | 600*600mm | 110 | 5630SMD |
| NGE-P0606-S54W | 54W | AC100-240V | 600*600mm | 600*600mm | 120 | 5630SMD |
| NGE-P0606-S72W | 72W | AC100-240V | 600*600mm | 600*600mm | 176 | 5630SMD |
Packing Information of Samsung 5630 led panel light 36w kitchens wall lights fittings
NGE Technology Limited is a professional indoor LED lighting manufacturer and solutions provider.
We are specialized in the LED shop lighting,office Lighting,commercial lighting,LED industrial lighting and residential lighting research and manufacture. Especially,LED shop light,the LED tube, kitchens wall lights fittings ,LED downlight,LED high bay and LED floodlight and LED bulb products are most popular products for us.

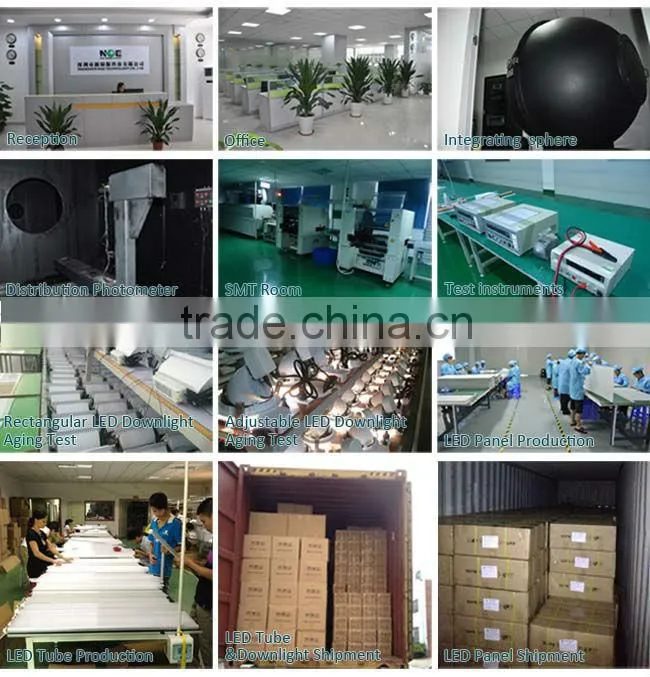

NGE Technology owns more than 180 experienced worker,15 persons' R&D team and 8000 square workshop. It is equiped auto SMT machines, reflow-soldering machine,integrating sphere,goniophotometers machine and inspection instruments,etc.
NGE Technology endeavor to develop new LED lighting products,our expert R&D team have abundant knowledge of electronic technology,structure technology, thermal management as well as optics design. Almost all of our products are CE certificated and RoHS compliant,and our LED Shop light are UL,PSE,SAA and C Tick approved.
NGE Technology has an excellent overseas sales and after-sales team.NGE products are very popular in Europe,America,Australia,Japan,Middle East and Southeast Asia market now.
We have successfully achieved over 50% annual growth in the turnover in the past 3 years. The turnover in 2012 is estimated to be 12 million US dollars. Let's work together to devote to the new,green and eco-friendly cause for the world.
