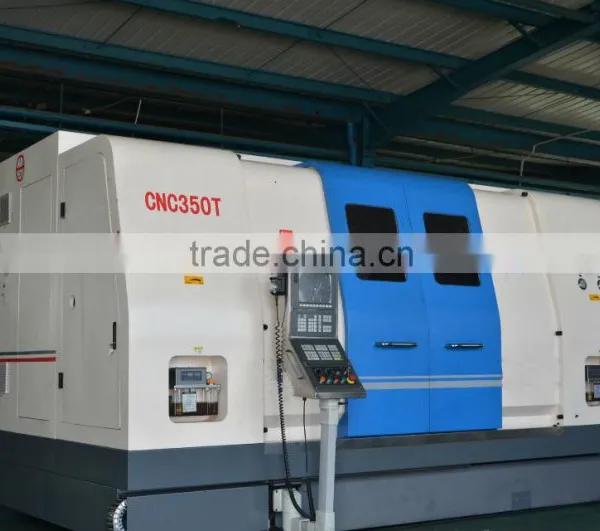

Mill Tap Center CNC350T Cnc Drill and Tapping Machine

Name: Mill Tap Center CNC350T Cnc Drill and Tapping Machine
Brand: HAISHU
SKU: 128550843

US$ 10,000 - 100,000 MOQ: 1 Set

Key Specifications

Condition:

New

Type:

Horizontal

CNC or Not:

CNC

Taian Haishu Machinery Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

qingdao

Delivery Detail:

Delivery time depends on order quantity.

Condition New

Type Horizontal

CNC or Not CNC

Automatic Grade Automatic

Max. Swing Diameter 350MM

Place of Origin Shandong, China

Brand Name HAISHU

Model Number CNC350T

Voltage 380v

Power(W) 7500w

Dimension(L*W*H) 2200X1350X1750mm

Weight 4000KG

Certification CE,ISO.TUV

After-sales Service Provided Engineers available to service machinery overseas

mill tap center CNC350T cnc drill and tapping machine

Main technical parameters:

No.	Item	Unit	Technical parameters
			CNC350T
1	Maximum turning diameter on lathe’ body	mm	350
2	Maximum workpiece length	mm	350/450/550	650/750/1000
3	Maximum turning diameter	mm	300
4	Spindle nose type and code	mm	A8
5	Hydraulic chuck	mm	2-φ200(8")
6	Front spindle bore taper		1:20
7	Spindle bore	mm	60
8	Maximum load-bearing chucked components	kg	500
9	2 - servo spindle motor speed	mm/min	0-8000
10	Rapid traverse X / Z	mm/min	40000
11	CS1; CS2 main servo motor power	kW	7.5
12	X servo motor maximum torque	N.m	10
13	Z, Y servo motor maximum torque	N.m	15
14	Power Specifications	v	380±10%. 50Hz±1Hz
15	Carrier transfer time (one station)	s	1.6(Horizontal 12)
16	Carrier transfer repeat positioning accuracy		0.005"
17	X-axis travel	mm	200
18	Z-axis travel	mm	350/450/550	650/750/1000
19	B-axis(sub-spindle) travel	mm	650/750/850	950/1050/1300
20	Y-axis travel	mm	150
21	Biaxial dynamic docking concentricity	mm	0.005
22	Hydraulic servo turret form		Horizontal 12-station power turret
23	Knife handle size	mm	25×25
24	Net weight	kg	4000
25	Size(L×W×H)	mm	2000/2100/2200×1350×1750
