Specifications
. aluminium led light housing fixture2, beam angle 25,45,60,90degree .
3. IP66 for outdoor or indoor
ip65 outdoor retrofit led canopy light fixture / waterproof ip65 gas station led canopy light
Specifications LED Canopy Light :
|
|
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Features and Specifications LED Canopy Light:
Environmentally Friendly Design:
FLD-CNL-60005 luminaires consume very little energy and provide long life in comparison to traditional lamp technologies. Our manufacturing process utilizes no hazardous substances such as mercury or lead. The FLD-CNL-60005 is RoHS (Restriction of Hazardous Substances) compliant, 100% recyclable, and provides a significant reduction in Kw load and carbon emissions.
Installation:
The FLD-CNL-60005 series can be installed and wired by a single person, the base plate easily attaches to a 3” or 4” J-box, and the fixture housing is attached to the base plate by four captive fasteners. The FLD-CNL-60005 can be surface mounted to a recessed J-box or pendant mounted using a standard ½” threaded downrod . The FLD=CNL-60005 is a recessed canopy luminaire suitable for new work or retrofits.
Testing & Compliance:
The reliability and performance of the FLD-CNL-60005 is evaluated in accordance with the parameters outlined and reported by LM-79 and LM-80 documents. Photometric data is tested to IESNA LM-79-08 standard by an independent testing laboratory. Lumen maintenance, L70 a measure of long term reliability, is determined for the light source, which consists of the LED and PSB sub-assembly as installed in the luminaire, is determined using LM-80 in situ thermal and reliabilitydata as provided by the LED manufacturer in accordance with DOE/EPA standards.
Listing:
The FLD-CNL-60005 is DLC certified , is IP67 rated.
Warranty:
The FLD-CNL-60005 series features a 5 year warranty.

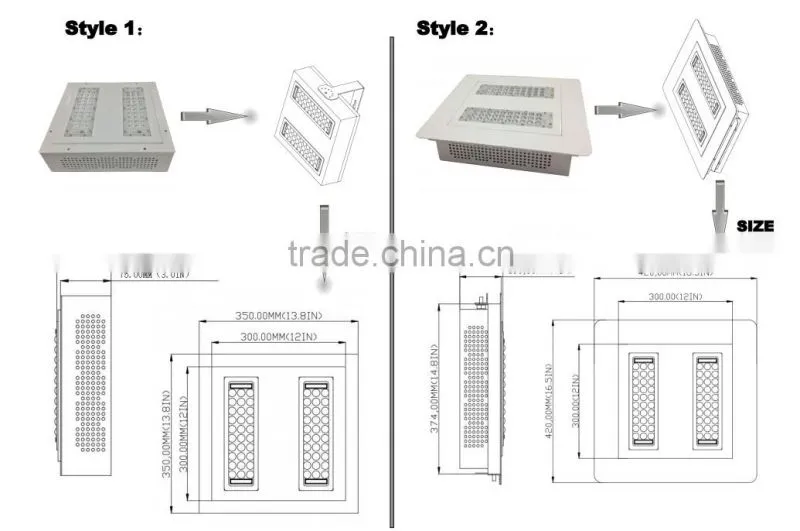

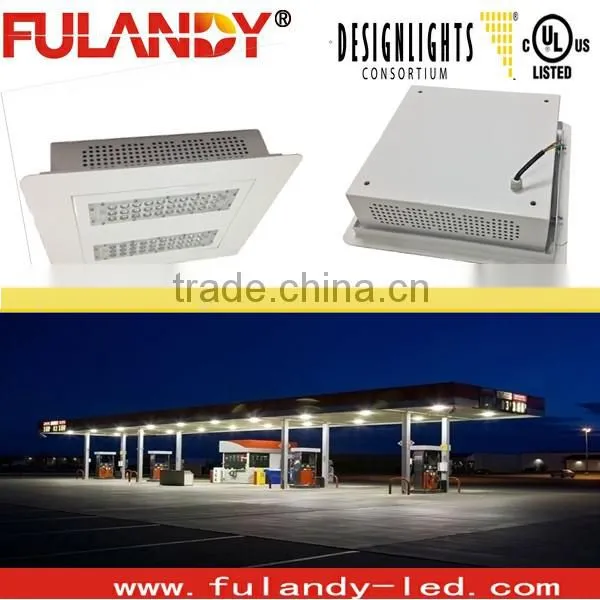

Tube Detail show LED Canopy Light:
High quality aluminum + High Brightness CREE LED

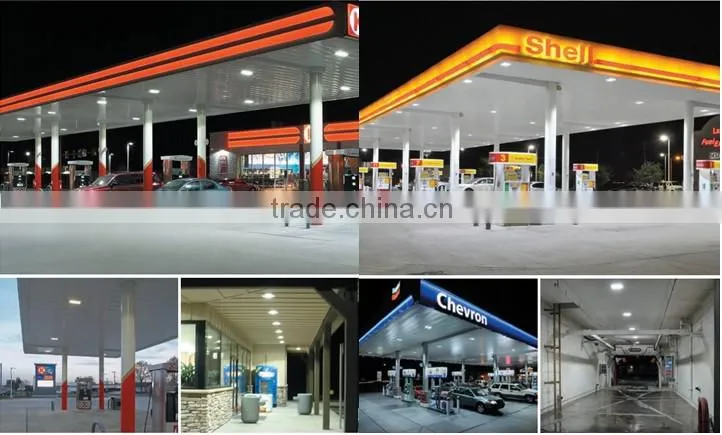

Application
the FLD-CNL-60005 provides a energy saving solution to a wide spectrum of applications including, but not limited to security lighting in schools, office complexes, light commercial development, apartments, parking garages, entryways, and stairwells.It also can be used in workshop,warehouse,parking lot,toll gate,gas
station,supermarket,exhibition hall,gym and other places.
Choosing Type:
| Part No. | Watt | LUMEN(LM) | Voltage | CCT | Warranty |
| FLD-CNL-60005-60w | 60w | 5700LM | AC100-277V | 2700K-6500K | 3/5years(DLC) |
| FLD-CNL-60005-80w | 80w | 7600LM | AC100-277V | 2700K-6500K | 3/5years(DLC) |
| FLD-CNL-60005-100w | 100w | 9500LM | AC100-277V | 2700K-6500K | 3/5years(DLC) |
| FLD-CNL-60005-120W | 120w | 11400LM | AC100-277V | 2700K-6500K | 3/5years(DLC) |
| FLD-CNL-60005-150W | 150w | 14250LM | AC100-277V | 2700K-6500K | 3/5years(DLC) |
| FLD-CNL-60005-180W | 180w | 17100LM | AC-100-277V | 2700K-6500k | 3/5years(DLC) |
SHIP BY Ocean ,Air -FEDEX DHL UPS

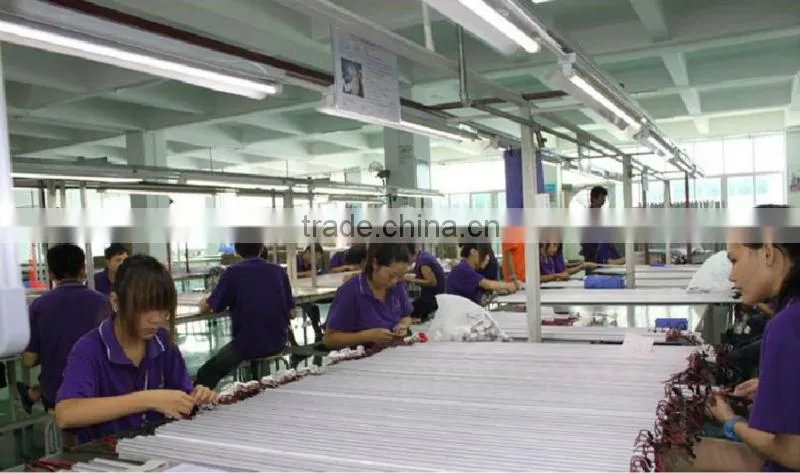

Workshop :
1.delivery term:FOB,EXW,CIF are available.
2.payment term:30%T/T advance,70% balance before shipment,Western Union or paypal is acceptable for samples orders.
3.lead time:3-7 days for samples, 7-20 working days for the large quantity.

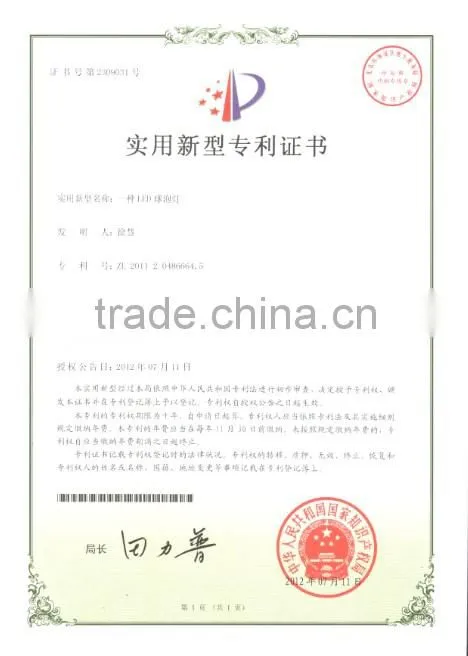

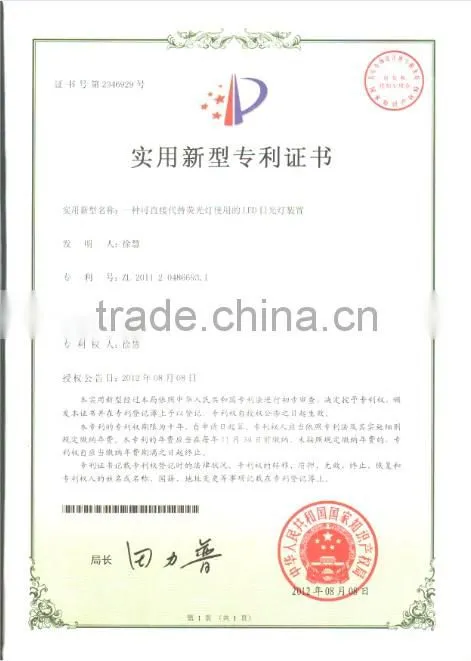

Patent Certification:
