Home > Lights & Lighting > LED Interior Lighting > LED Down Light > 85lm/w CRI>83 ce Rohs Samsung Smd Rotatable Round 48w Led Downlight

85lm/w CRI>83 ce Rohs Samsung Smd Rotatable Round 48w Led Downlight

Name: 85lm/w CRI>83 ce Rohs Samsung Smd Rotatable Round 48w Led Downlight
Brand: NGE or OEM
SKU: 128537445
Availability: InStock

85lm/w CRI>83 ce Rohs Samsung Smd Rotatable Round 48w Led Downlight thumbnail-1

85lm/w CRI>83 ce Rohs Samsung Smd Rotatable Round 48w Led Downlight photo-1

US$ 42.5 - 84 MOQ: 10 Pieces

Key Specifications

Get Latest Price

LED Light Source:

Samsung SMD

Warranty(Years):

3 years

Input Voltage(V):

AC100V-240V, 50-60Hz

Contact Supplier Request Quote Chat Now

Shenzhen NGE Technology Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Shenzhen Hong Kong

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

LED Light Source Samsung SMD

Warranty(Years) 3 years

Input Voltage(V) AC100V-240V, 50-60Hz

Lamp Power(W) 48

Lamp Luminous Flux(lm) 3500±200LM

Lamp Luminous Efficiency(lm/w) 85

Color Temperature(CCT) Other, 3000-3500K,4000-4500K,5500-6500K

Working Temperature(℃) -40, 60

Working Lifetime(Hour) 35000

Lamp Body Material Other, Aluminum alloy and tempered glass

IP Rating IP44

Certification CE, C-tick, EMC, LVD, SAA

Model Number NGE-SMD01-AD48W

Place of Origin Guangdong, China

Brand Name NGE or OEM

Specifications

round led downlight
1. 20/28/38/48/60W
2. Replace Metal Halide shop light
3. Samsung SMD,CRI>83
4.CE,RoHS,SAA,C-Tick

85lm/w CRI>83 Samsung smd rotatable round 48w led downlight

Product Features of 85lm/w CRI>83 Samsung smd rotatable round 48w led downlight :

1. High Lumen Samsung LED, Complete lighting>80lm/w, CRI>83.

2. Excellent Driver wide AC100V~240V,PF>0.95,low THD<15%.

3. Ultra-low light degradation in full compliance with U.S.Energy Star requirements, L70>35,000hrs.

4. Good thermal structure design, lamp life last longer than 35,000hrs.

5. Dimmable and emergency version available for choice.

6. 3 years warranty, CE, RoHS, SAA, C-Tick approved.

7. Direct replacement for traditional Adjustable downlight,popular in shop, supermarket.

Product Pictures for 85lm/w CRI>83 Samsung smd rotatable round 48w led downlight:

Technical Parameters for 85lm/w CRI>83 Samsung smd rotatable round 48w led downlight:

Product Name	Rotatable LED downlight
Item Number	NGE-SMD01-AD48W
Rated Power	48W
Input Voltage	AC100-240V
Power Factor	>0.95
LED Type	Samsung SMD LED
Luminous Flux	3500±200LM
Color Temperature	3000-3500K,4000-4500K,5500-6500K
CRI	Ra>83
Product Size	φ250*145mm
Cutout	φ210mm-230mm
Main Materials	Aluminum alloy and tempered glass
Working Temperature	-40~60°C
Lifetime	>35,000hours
Warranty	3 years
Certificate	CE,RoHS,SAA,C-Tick

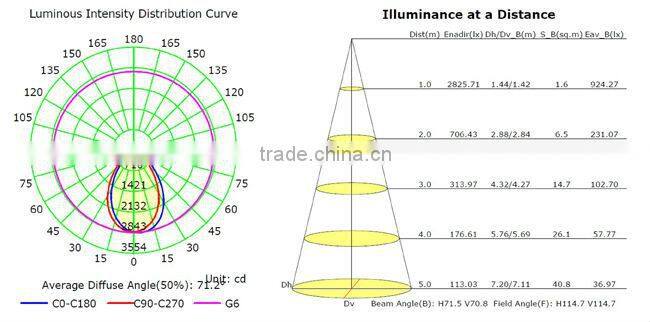

Test Report for 85lm/w CRI>83 Samsung smd rotatable round 48w led downlight:

Production pictures for 85lm/w CRI>83 Samsung smd rotatable round 48w led downlight:

Packing information for 85lm/w CRI>83 Samsung smd rotatable round 48w led downlight:

Series Products for 85lm/w CRI>83 Samsung smd rotatable round 48w led downlight:

Item No.	Watt	Input Voltage	Lumens	Size	Cutout
NGE-SMD01-AD20W	20	AC100-240	1600±100LM	φ195*175mm	φ165mm-170mm
NGE-SMD01-AD28W	28	AC100-240	2100±100LM	φ195*175mm	φ165mm-170mm
NGE-SMD01-AD38W	38	AC100-240	2900±100LM	φ195*175mm	φ165mm-170mm
NGE-SMD01-AD48W	48	AC100-240	3500±200LM	φ250*145mm	φ210mm-230mm
NGE-SMD01-AD60W	60	AC100-240	4200±200LM	φ250*145mm	φ210mm-230mm

NGE Technology Limited is a professional indoor LED lighting manufacturer and solutions provider.

We are specialized in the LED shop lighting, office Lighting, commercial lighting, LED industrial lighting and residential lighting research and manufacture. Especially, LED shop light, LED tube, LED Panel light, L ED downlight, LED high bay, LED floodlight and LED bulb products are most popular products for us.

NGE Technology owns more than 180 experienced workers,15 persons' R&D team and 8000 square workshop. It is equiped with auto SMT machines, reflow-soldering machine, integrating sphere, goniophotometers machine and inspection instruments, etc.

NGE Technology endeavors to develop new LED lighting products. Our expert R&D team have abundant knowledge of electronic technology, structure technology, thermal management as well as optics design. Almost all of our products are CE certificated and RoHS compliant, and our LED Shop light are UL, PSE, SAA and C Tick approved.

NGE Technology has an excellent overseas sales and after-sales team. NGE products are very popular in Europe, America, Australia, Japan, Middle East and Southeast Asia market now.

We have successfully achieved over 50% annual growth in the turnover in the past 3 years. The turnover in 2012 is estimated to be 12 million US dollars. Let's work together to devote to the new, green and eco-friendly cause for the world.

Welcome to visit our website .
