85lm/w CRI>83 48W Samsung SMD led shoplight square
- 30000 Piece / Pieces per Month
- Shenzhen Hong Kong
- T/T Credit Card
- Linear Downlight
- LED Downlight
- A Anti-glare Waterproof IP65 led downlight project waterproof spots light 5w 7w 9w 12w downlight
- A Surface Mounted Led Downlight AC LED Bulb Outdoor Adjustable Led Downlight Lamp Spot Light
- Dimmable IP65 LED Down Lights (30-300W)
- Emergency IP65 LED Down Lights (30-300W)
Product Details
LED Light Source: | Samsung SMD | Warranty(Years): | 3 years | Input Voltage(V): | AC100V-240V, 50-60Hz |
Lamp Power(W): | 48 | Lamp Luminous Flux(lm): | 4000±100LM | Lamp Luminous Efficiency(lm/w): | 85 |
Color Temperature(CCT): | Other, 3000-3500K,4000-4500K,5500-6500K | Working Temperature(℃): | -40, 60 | Working Lifetime(Hour): | 35000 |
Lamp Body Material: | Other, Aluminum alloy + PC Cover | IP Rating: | IP44 | Certification: | CE, C-tick, EMC, LVD, SAA |
Model Number: | NGE-SMD01-RD48W | Place of Origin: | Guangdong, China | Brand Name: | NGE or OEM |
Product Description
Specifications
48w led shoplight squareHigh lumen Samsung SMD,CRI>83
PF>0.95, THD<15%
L70>35,000hrs, 3 years warranty
CE,RoHS,SAA,C-Tick
85lm/w CRI>83 48W Samsung SMD led shoplight square
Product Features of 85lm/w CRI>83 48W Samsung SMD led shoplight square:
1. High Lumen Samsung LED, complete lighting >85lm/w, CRI>83.
2. Excellent Driver wide AC100V~240V, PF>0.95, low THD<15%.
3. Ultra-low light degradation in full compliance with U.S.Energy Star requirements, L70>35,000hrs.
4. Good thermal structure design, lifespan last longer than 35,000hrs.
5. Dimmable and emergency version available for choice.
6. 3 years warranty, CE, RoHS, SAA approved.
7. Direct replacement for Philips rectangular downlight HIT-DE MBS200,QBS200,SBS200.

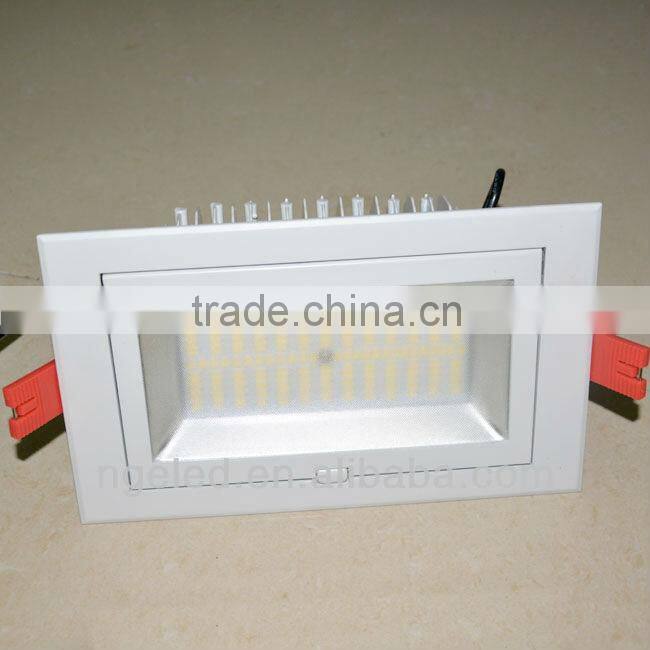

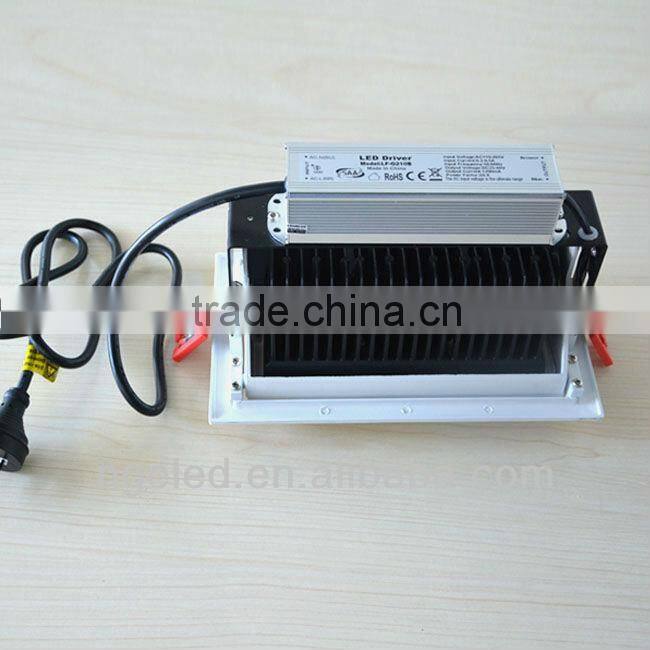

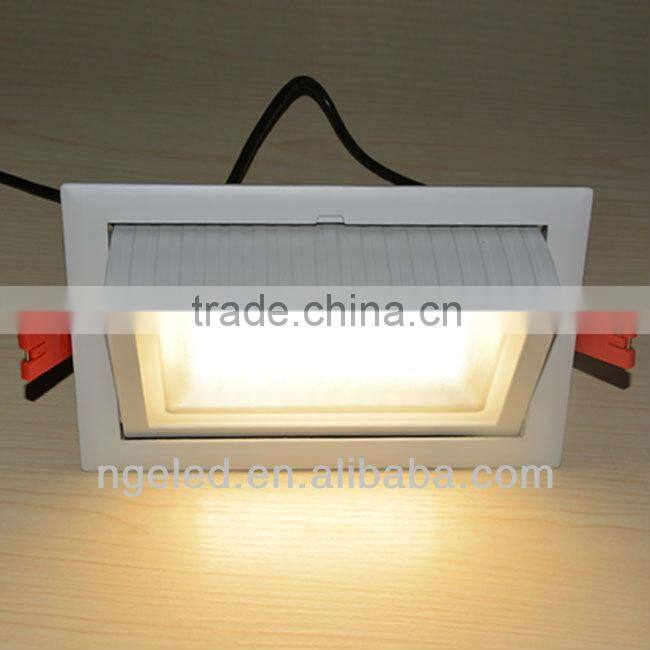

Product Pictures for 85lm/w CRI>83 48W Samsung SMD led shoplight square:
Technical Parameters for 85lm/w CRI>83 48W Samsung SMD led shoplight square:
Product Name | LED rectangular downlight |
Item Number | NGE-SMD01-RD48W |
Rated Power | 48W |
Input Voltage | AC100-240V, 50-60Hz |
Power Factor | >0.95 |
LED Type | Samsung SMD LED |
Luminous Flux | 4000±100LM |
Color Temperature | 3000-3500K,4000-4500K,5500-6500K |
CRI | Ra>83 |
Beam Angle | 100° |
Product Size | 240*145*136mm |
Cutout | 227*130mm |
Main Materials | Aluminum alloy and tempered glass |
Working Temperature | -40~60°C |
Lifetime | >35,000hours |
Warranty | 3 years |
Certificate | CE,RoHS,SAA,C-Tick |

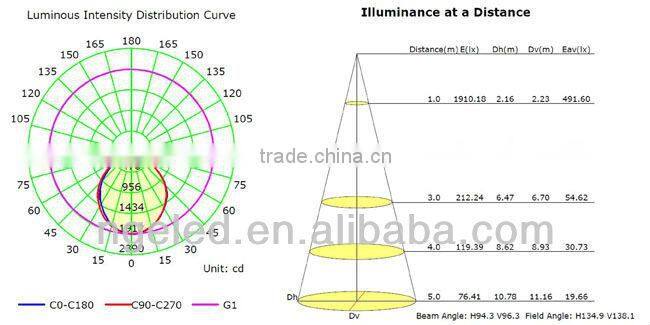

Test Report for 85lm/w CRI>83 48W Samsung SMD led shoplight square:

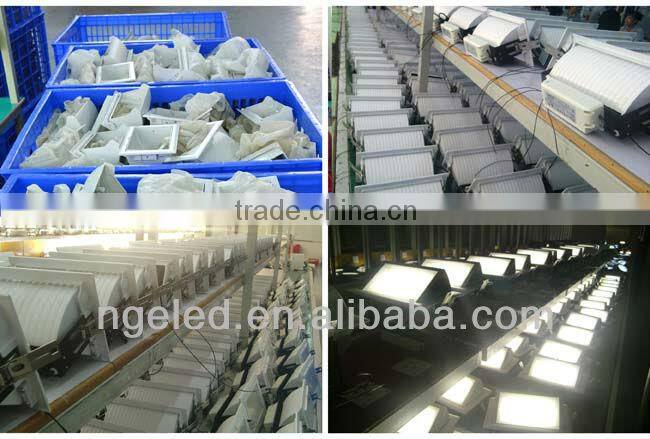

Production pictures for 85lm/w CRI>83 48W Samsung SMD led shoplight square:
Packing information for 85lm/w CRI>83 48W Samsung SMD led shoplight square:
Series Products for 85lm/w CRI>83 Samsung SMD led shoplight square:
Item No. | Watt | Input Voltage | Lumens | Size | Cutout | PF |
NGE-SMD01-RD20W | 20 | AC100-240 | 1800±100LM | 230*145*136mm | 227mmx130mm | >0.95 |
NGE-SMD01-RD28W | 28 | AC100-240 | 2400±100LM | 230*145*136mm | 227mmx130mm | >0.95 |
NGE-SMD01-RD38W | 38 | AC100-240 | 3200±100LM | 230*145*136mm | 227mmx130mm | >0.95 |
NGE-SMD01-RD48W | 48 | AC100-240 | 4000±100LM | 230*145*136mm | 227mmx130mm | >0.95 |
NGE-SMD01-RD60W | 60 | AC100-277 | 5000±100LM | 230*145*143mm | 227mmx130mm | >0.95 |
NGE Technology Limited is a professional indoor LED lighting manufacturer and solutions provider.
We are specialized in the LED shop lighting, office Lighting, commercial lighting, LED industrial lighting and residential lighting research and manufacture. Especially, LED shop light, LED tube, LED Panel light, L ED downlight, LED high bay, LED floodlight and LED bulb products are most popular products for us.
NGE Technology owns more than 180 experienced workers,15 persons' R&D team and 8000 square workshop. It is equiped with auto SMT machines, reflow-soldering machine, integrating sphere, goniophotometers machine and inspection instruments, etc.
NGE Technology endeavors to develop new LED lighting products. Our expert R&D team have abundant knowledge of electronic technology, structure technology, thermal management as well as optics design. Almost all of our products are CE certificated and RoHS compliant, and our LED Shop light are UL, PSE, SAA and C Tick approved.
NGE Technology has an excellent overseas sales and after-sales team. NGE products are very popular in Europe, America, Australia, Japan, Middle East and Southeast Asia market now.
We have successfully achieved over 50% annual growth in the turnover in the past 3 years. The turnover in 2012 is estimated to be 12 million US dollars. Let's work together to devote to the new, green and eco-friendly cause for the world.
