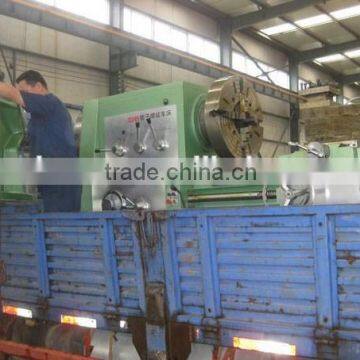

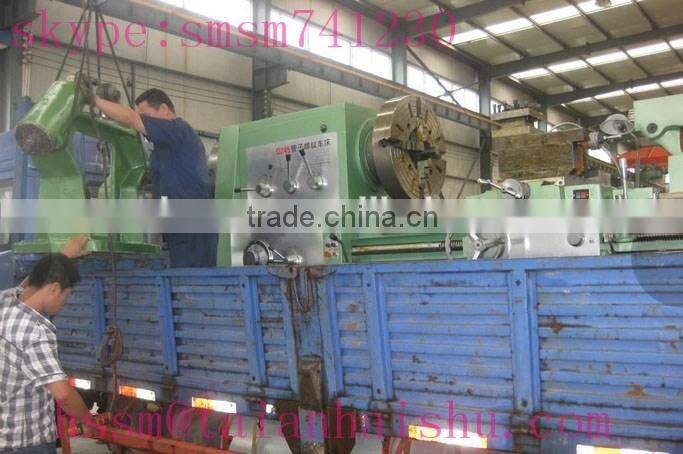

China Q245 Pipe Thread Lathe Machine With the Factory Manufacturing Price

Name: China Q245 Pipe Thread Lathe Machine With the Factory Manufacturing Price
Brand: HAISHU
SKU: 128535625
Availability: InStock

Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)

Key Specifications

Condition:

New

Type:

Horizontal

Automatic Grade:

Manual

Taian Haishu Machinery Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

QINGDAO

Delivery Detail:

Delivery time depends on order quantity.

Condition New

Type Horizontal

Automatic Grade Manual

Max. Swing Diameter 800mm

Place of Origin Shandong, China

Brand Name HAISHU

Model Number Q245

Voltage 380v

Dimension(L*W*H) 3300X1450X1600

Weight 6000KG

Certification ISO9001:2008 CE

SPECIFICATIONS

Outline size
L: 3300mm		W: 1450mm
H: 1600mm		Machine weight: 6000kg

Max.swing diameter on the bed 800mm		Diameter of pipe 50-245
Max.outside diameter of pipe 1000mm		Max. taper 1:32
Tails quill diameter 750mm
Spindle
Spindle bore 250		Level of spindle speed 12
Range of spindle speed 20-460r/min
Feed system
Vertical and horizontal feed species 32
Thus feed range
Processing metric thread number 21	Transverse 0.04-0.65mm
Inch thread processing number 26	Longitudinal0.1-1.46mm
Pitch processing metric thread 1-15mm
Inch thread processing pitch 1-14t.p.i
Saddle longitudinal moving speed 2.5m/min
The slide board box handwheel rotates a saddle longitudinal travel 0.20mm
Tool carrier
The spindle center line to the tool installation datum vertical distance 30mm	The surface of the knife section size 30×30mm
The cutter turntable rotation angle ±90°
The knife frame dial rotates every one stroke of knife 0.05mm
The lower sliding plate dial rotates one grid knife stroke 0.05mm
Spindle center line to the tool installation datum vertical distance 33mm
The tailstock
Top sleeve diameter 100mm	Top sleeve travel 250mm
Top sleevetaper Morse6	Tailstock lateral movement amount ±15mm
The top taper Morse6
The power part
Gear pump belt 1-A800		Rapid motor 2A0S5632 0.37KW2700r/min
The main motorbelt 4-B2240		Cooling pump JCB-22 0.125KW22L/min
Gear pump CB-B6 2.5Mpa 1450r/min		The main motor Y160M-4-B3 11KW 1460r/min
