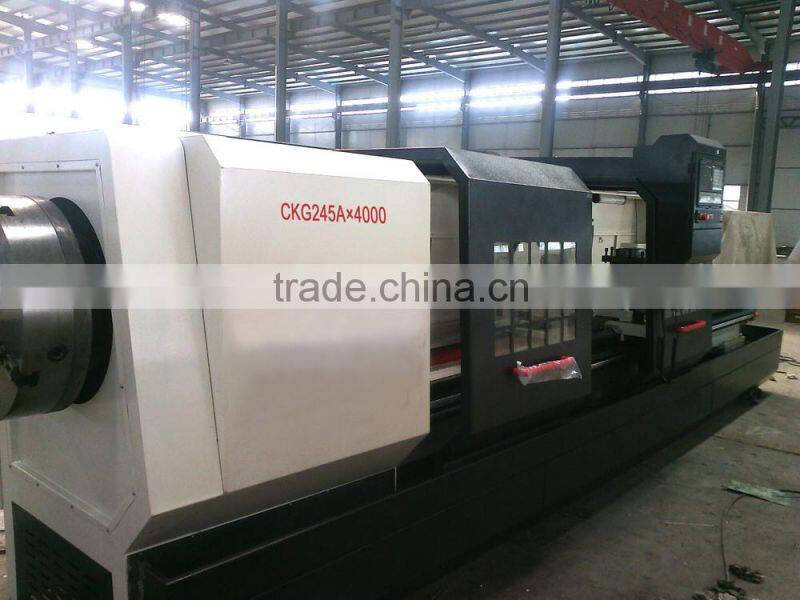

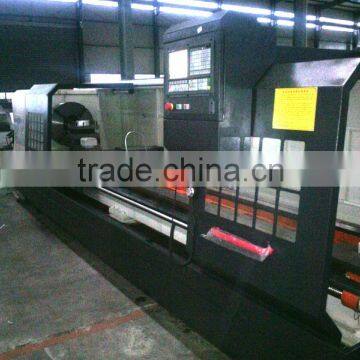

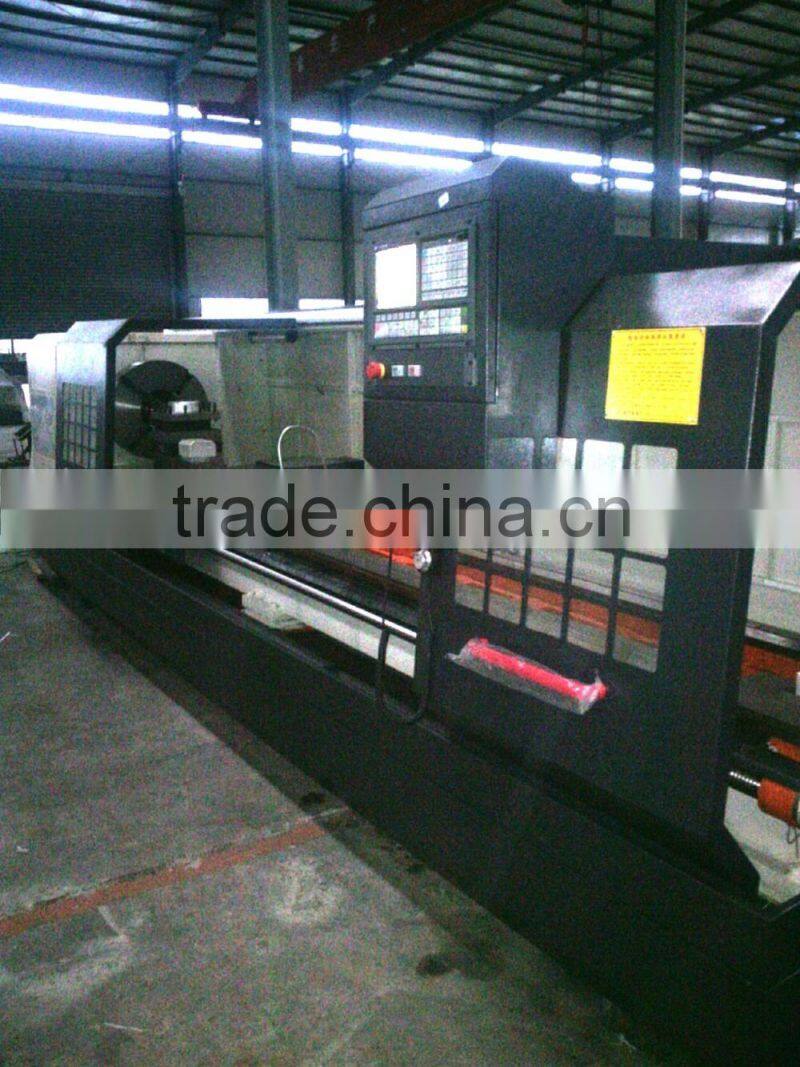

double chuck lathe CKG245A large diameter pipe threading machines/pipe cutting machines
CKG245A CNC pipe thread lathe specification
Project |
Unit |
Specification |
Max swing diameter |
mm |
Φ800 |
Maximum turning length |
mm |
1000~10000 |
Maximum processing outside diameter of pipe |
mm |
φ245 |
Spindle bore |
mm |
φ250 |
Number of spindle speeds |
|
Servo Promise |
Spindle speed |
rpm |
0~500 |
X/Z Servo motor torque |
N.m |
10/22 |

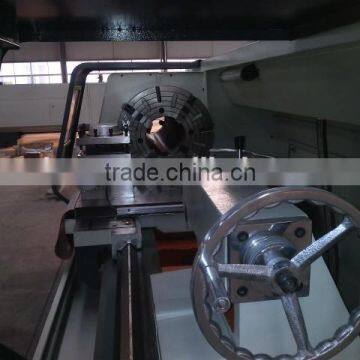

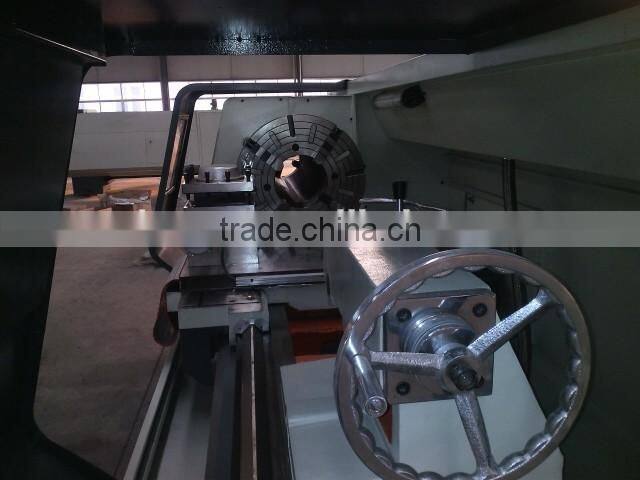

Chuck form |
|
Four-jaw chuck |
Turret form |
|
240×240 Four-station ,Vertical |
X/Z Rapid traverse |
m/min |
3/4 |
Tailstock quill diameter |
mm |
φ100 |
Tailstock quill stroke |
mm |
250 |
Tailstock sleeve taper |
|
MT5 |
Spindle center to the height of the rail |
mm |
410 |
Main motor |
|
Servo motor 11KW 3000r/min |
Machine weight |
Kg |
5800(L=1000) |
Machine outline size (L × W× H) |
mm |
3600(L=1000)×1850×1900 |

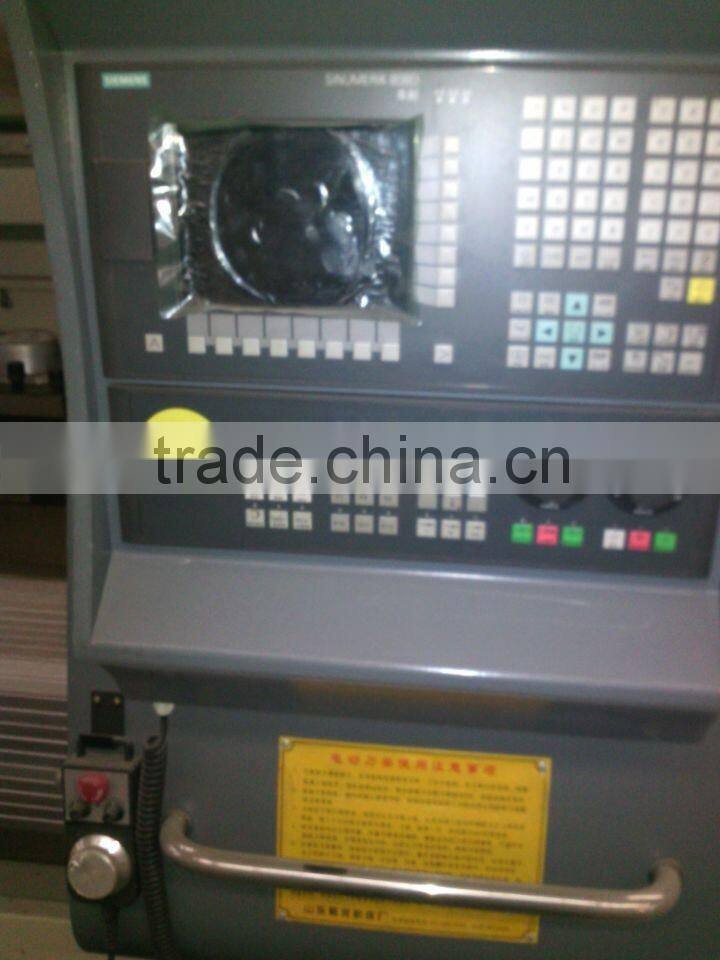

CNC system |
|
KND/GSK/Siemens/(Optional) |
GUARANTEE AND AFTER-SALE SERVICES:
1.one year guarantee for whole machine .
2.24-hours technical support by E-mail or telephone
3.User-friendly English software or Russian or Spanish, Users manuals and Detailed Videos/CD
4.Provide extra accessories for the machine
5.Also provide service of make program according to your drawings
6.Customized or special design is welcome.
If you are interested in double chuck lathe CKG245A large diameter pipe threading machines/pipe cutting machines , welcome to leave a message or send the inquiry to understand the details of machine.
