Low Price Pipe Thread Lathe Processing Pipe Thread

Name: Low Price Pipe Thread Lathe Processing Pipe Thread
Brand: HaiShu
SKU: 128528481
Availability: InStock

US$ 10,000 - 18,000 MOQ: 1 Set

Key Specifications

Condition:

New

Type:

Horizontal

CNC or Not:

CNC

Taian Haishu Machinery Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Pipe thread lathe Qing Dao

Delivery Detail:

Delivery time depends on order quantity.

Condition New

Type Horizontal

CNC or Not CNC

Automatic Grade Automatic

Max. Swing Diameter 610mm

Place of Origin Shandong, China

Brand Name HaiShu

Model Number CKG1322A

Voltage 220V/380V

Power(W) 7.5kw

Dimension(L*W*H) 2650*1450*1700

Weight 2800kg

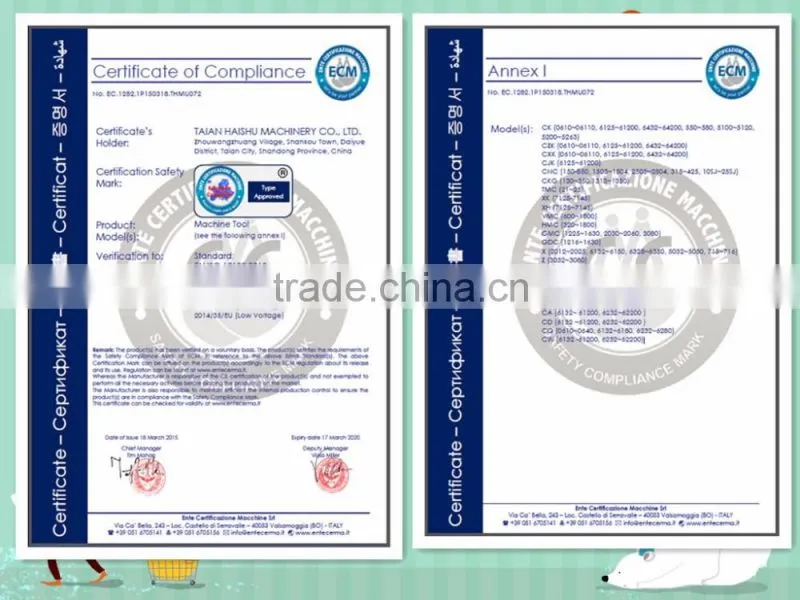

Certification CE ISO

After-sales Service Provided Engineers available to service machinery overseas

CNC pipe thread lathe specification

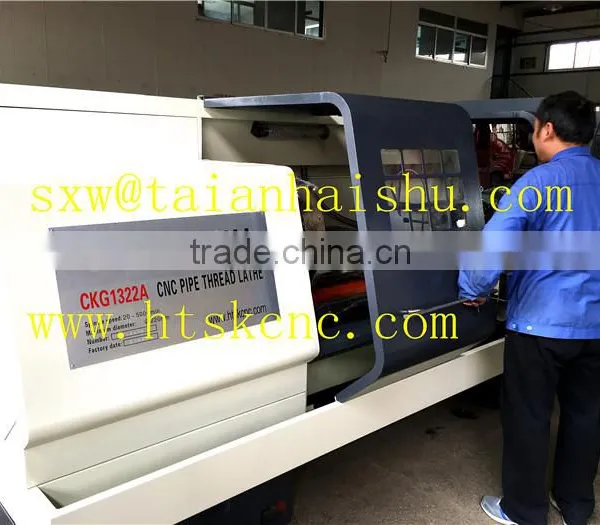

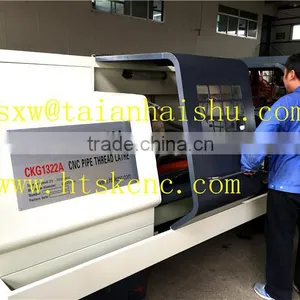

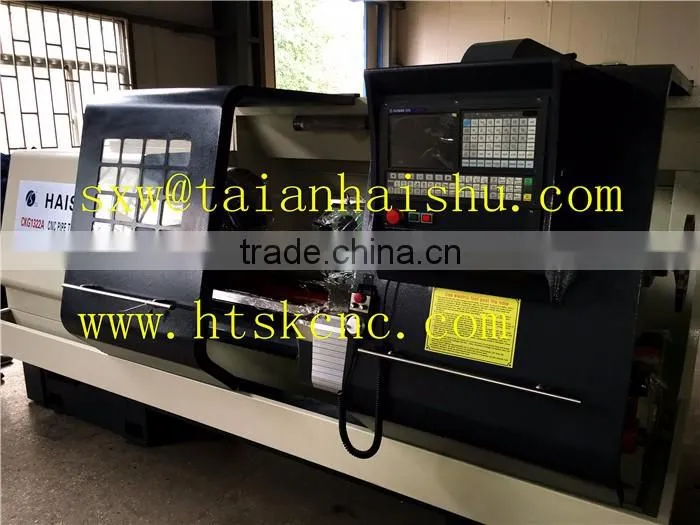

CKG1322A CNC pipe thread lathe

Term	Unit	Specification
Lathe Max swing diameter	mm	φ630
Maximum turning length	mm	1000
Maximum processing outside diameter of pipe	mm	φ219
Spindle bore	mm	φ225
Number of spindle speeds		Servo Promise
X/Z Servo motor torque	N.m	10/15
Chuck form		Three-jaw chuck
Chuck diameter	mm	φ500
Turret form		Four-station ,Vertical
Tool section size	mm	32×32
X/Z Rapid traverse	m/min	3/3
Tailstock quill diameter	mm	φ100
Tailstock quill stroke	mm	250
Tailstock sleeve taper		MT5
Spindle center to the height of the rail	mm	315
Main motor		Servo motor 11KW 3000r/min
Machine weight	Kg	5500
Machine outline size (L × W× H)	mm	360017501900

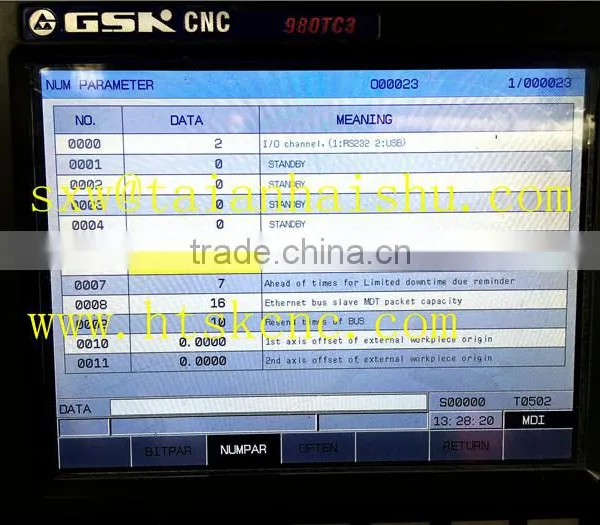

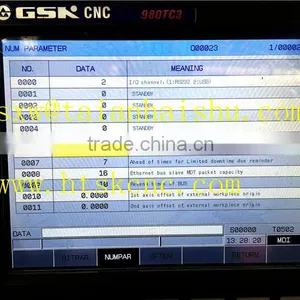

CNC system		KND100Ti/GSK980TA(Optional)
