5 Axis XH7132 Vertical Cnc Machining Center and Cnc Metal Engraving Machine With Low Price
- Qingdao
- T/T Credit Card
You May Like
-
5 Axis XH7132 OEM Service Metal Plate CNC Milling Machine Vertical Machining Center
-
Vertical Milling Xh7132Vertical Type and New Condition Vertical Machining Center
-
Vertical Milling Xh7132 Cnc Metal Milling Machine/machining Center for Mould
-
High Configuration Linear Guide VMC800 VMC800 5 Axis Cnc Machine Price With CE
-
High Configuration Linear Guide Vertical Machine Center VMC800 Vmc Machine Price With CE
-
2015hottest Linear Guide Vertical Machine Center VMC800 Vmc Machine Manufacturer With CE
Product Details
| Condition | New | Type | Turning Center | |
| CNC or Not | CNC | Automatic Grade | Automatic | |
| Place of Origin | Shandong, China | Brand Name | Haishu | |
| Model Number | XH7132A | Voltage | 380v | |
| Power(W) | 3.7kw | Dimension(L*W*H) | 2020*1970*2160 | |
| Weight | 2750kg | Certification | CE | |
| After-sales Service Provided | Overseas service center available |
Product Description

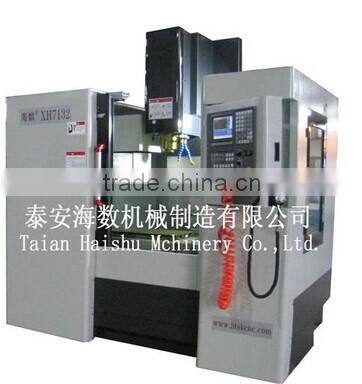

5 axis XH7132 vertical cnc machining center and cnc metal engraving machine with low price
Specifications
Item | Unit | XH7125 | XH7132(A) | VMC800 |
Table travel(X,Y,Z) | mm | 400×250×400 | 620×350×500 | 800×460×500 |
Table size | mm | 600×250 | 920×320 | 800×460 |
Number/Width/Distance of T-slot | mm | 3-14-75 | 3-14-85 | 3-18-150 |
Distance from spindle nose to table surface | mm | 60~460 | 100~600 | 150~650 |
Distance from spindle axis to column guideway | mm | 325 | 395 | 560 |
Taper of spindle |
| BT30 | BT40 | BT40 |
Spindle speed range | r/min | 60~6000 | 60~6000 | 40~6000 |
Spindle motor power | kw | 3.7 (AC servo)3.7 | 3.7(5.5) (AC servo)3.7(5.5) | 7.5 (AC servo)7.5 |
Rapid traverse speed(X,Y,Z) | m/min | 6 | 18 | 30/30/24 |
Cutting feed speed(X,Y,Z) | mm/min | 2.5~3000 | 2.5~3000 | 2~10000 |
Tool magazinpability | qty | 10 | 16 | 16 |
Max.dimension of tool | mm | φ92 | φ120×200 | φ130×300 |
Max.weight of tool | kg | 5 | 8 | 8 |
Positioning accuracy | mm | ±0.015 | ±0.015 | ±0.015 |
Repeat positioning accuracy | mm | ±0.075 | ±0.0075 | ±0.0075 |
L×W×H | mm | 1650×1600×2000 | 2020×1970×2160 | 2450×2200×2300 |
Net weight | kg | 1530 | 2750 | 4650 |
Main configuration
Standard:
1,CNC system: GSK25i servo system.
2Spindle: Taiwan's high speed,precision spindle unit.
3,Tool magazine: Taiwan's armless library.
4,Ball screw: Taiwan's precision ball screw.
5,protection: full outer stainless steel inner defense and protection.
Optional:
KND-2000M,HNC-21M,FANUC 0i mateMD or Siemens 828D.
CNC fourth axis.
Automatic chip removal system.

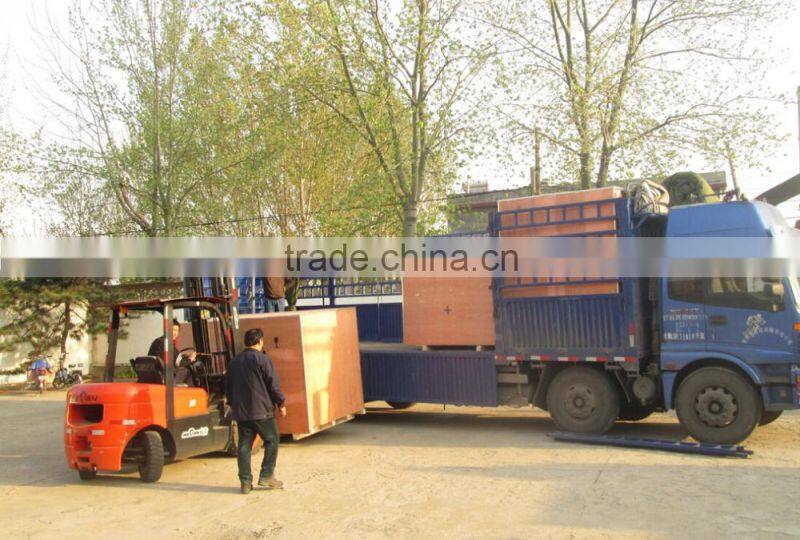

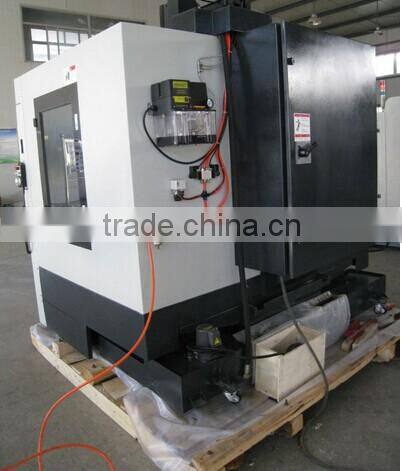

our shipping :
our service :
GUARANTEE AND AFTER-SALE SERVICES:
1.one year guarantee for whole machine, guarantee for CNC system
3.-friendly English or Russian or Spanish or Turkish software Users manuals and Detailed Videos/CD
4.Provide all kinds of optional accessories for the machine
5.Experienced engineers according to your needs to provide you with a special program
6, Price we can discuss
