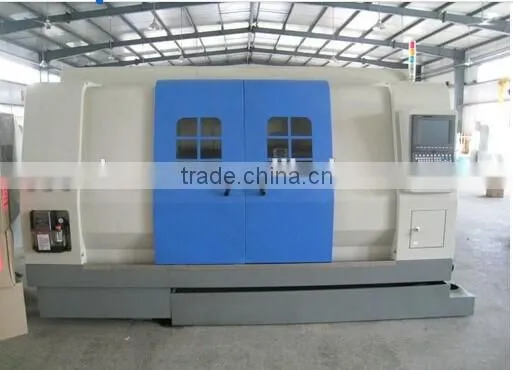

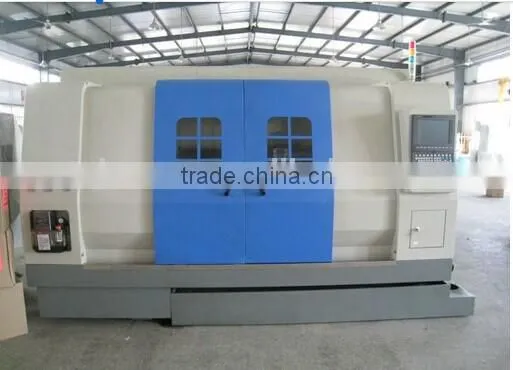

HIigh quality CNC350A CNC turning center with high precision
Main technical parameters:
No. |
Item |
Unit |
Technical parameters |
CNC150A | |||
1 |
Maximum turning diameter on lathe’ body |
mm |
150 |
2 |
Maximum workpiece length |
mm |
750/1000/1500 |
3 |
Maximum turning diameter |
mm |
300 |
4 |
Spindle nose type and code |
mm |
A8 |
5 |
Hydraulic chuc1. 2 |
mm |
200mm 135mm |
6 |
Front spindle bore taper |
|
1:20 |
7 |
Spindle bore |
mm |
50 |
8 |
Maximum load-bearing chucked components |
kg |
60 |
9 |
2 - servo spindle motor speed |
mm/min |
0-4000 |
10 |
Rapid traverse X / Z |
mm/min |
40000 |
11 |
CS1; CS2 main servo motor power |
kW |
7.5 |
12 |
X servo motor maximum torque |
N.m |
10 |
13 |
Z, Y servo motor maximum torque |
N.m |
15 |
14 |
Power Specifications |
v |
380±10%. 50Hz±1Hz |
15 |
Carrier transfer time (one station) |
s |
1.6(Horizontal 12) |
16 |
Carrier transfer repeat positioning accuracy |
|
0.005" |
17 |
X-axis travel |
mm |
200 |
18 |
Z-axis travel |
mm |
1850 |
19 |
B-axis(sub-spindle) travel |
mm |
2150 |
21 |
Biaxial dynamic docking concentricity |
mm |
0.005 |
22 |
Hydraulic servo turret form |
|
Horizontal 12-station power turret |
23 |
Knife handle size |
mm |
20*20 |
24 |
Net weight |
kg |
5500kg |
25 |
Size(L×W×H) |
mm |
3500*1600*1950 |
Standard configuration:
1.Taiwan 10TD control system
2.Hydraulic solid chuck 100
3.Cutting cooling system
4.X.Z axis linear guide P and ball mast C4
5.The spindle unit and motor
6.Horizontal 12 station servo turret
7.Bearing P4
8.Fully enclosed protection sys

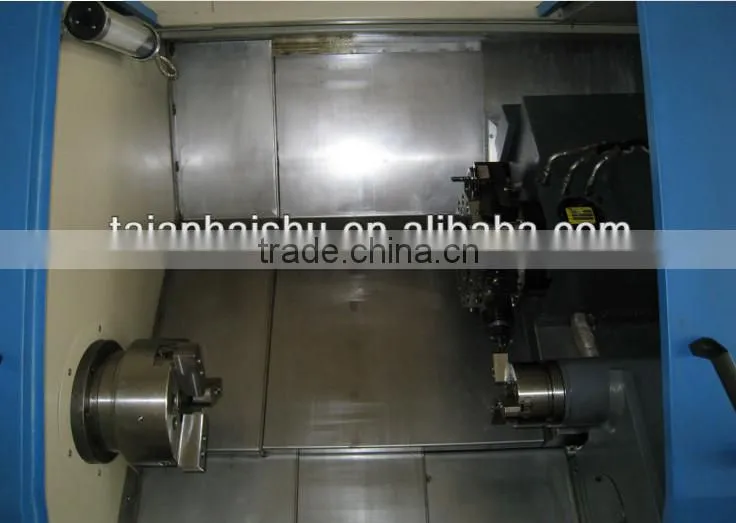

CNC350A CNC turning center with high precision features:
mature product structure, stable and reliable performance and quality,
using 10TD; 3 feed shaft +2 spindle system; overall tilt bed, three-axis ball linear guide;

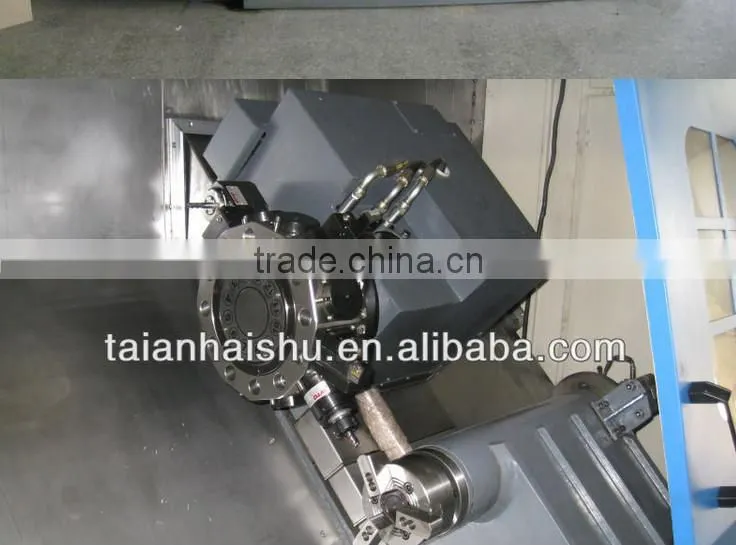

12-bit double-sided servo powerturret,
it is the largest amount of domestic use, the most extensive coverage of a CNC machine tools,
machining widely used in the automobile, petroleum, military and other industries.
