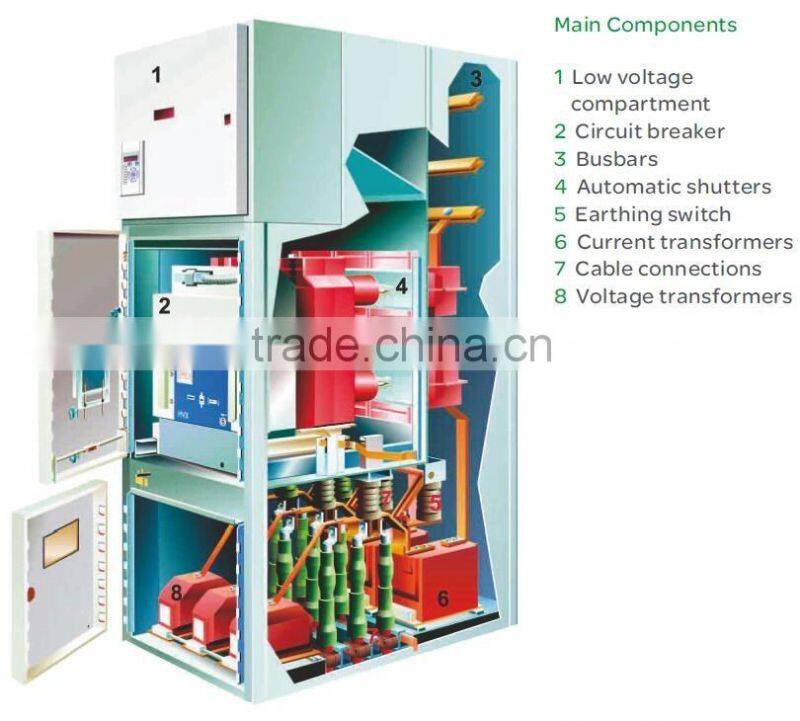

6kV/10kV/11kV withdrawable VCB switchgear/Switchboard
- 500 Set / Sets per Month
- Shanghai
- T/T Credit Card
Product Details
Brand Name: | HN electric | Model Number: | KYN28 |
Product Description
KYN series is mature switchgears in China. It is produced in our regional manufacturing centers and customized throughout the world, to match our clients local needs and expectations.
It has been fully tested according to the latest IEC 62271-200. It is both flexible and adaptable with a wide range of ratings and options.
It is in operation in power stations, utilities, infrastructure, oil & gas, mining and metals and in other industrial applications on all five continents - with many thousands of references confirming KYN as the trusted solution.
Technical Characteristics | ||||
Rated voltage | kV | 12 | 17.5 | 24 |
Rated power frequency withstand voltage | kV | 28 | 38 | 50 |
Rated lightning impulse withstand voltage | kV peak | 75 | 95 | 125 |
Rated short time withstand current - 3s | up to kA | 40 | 40 | 31.5 |
Rated peak withstand current | up to kA | 100/125 | 100/125 | 80 |
Internal arc classification IAC A FL(R) - 1s | up to kA | 40 | 40 | 31.5 |
Rated frequency | Hz | 50/60 | ||
Rated current - busbar - C.B. cubicle - contactor cubicle | up to kA |
3,150/4,000* 3,150/4,000* 400 |
3,150/4,000* 3,150/4,000* - |
2,500 2,500 - |
Degree of protection | IP3X or IP4X | |||
Standards | IEC (ANSI version available) | |||
Dimensions depending on cubicle type (contactor / vacuum or SF6 circuit breaker), rated current and voltage. | ||||
Width | mm | from 650 to 1000 | ||
Height | mm | from 2,130 to 2,330** | ||
Depth | mm | from 1,405 to 1,605 |
