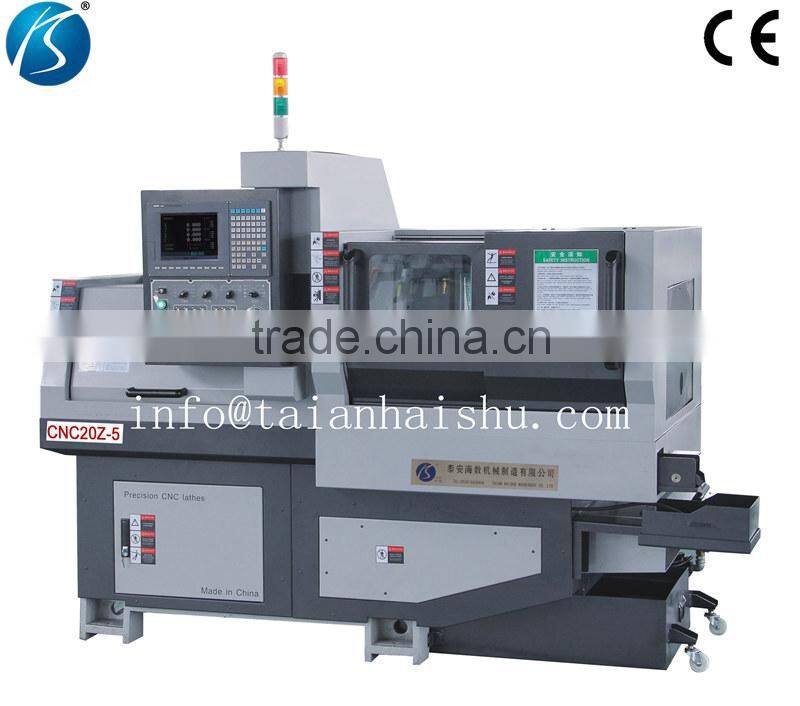

SWISS LATHE CNC20Z-5; MOVABLE SPINDLE SWISS LATHE.

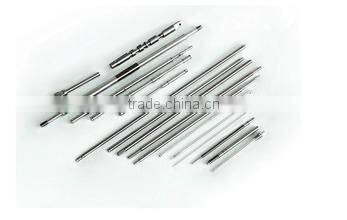

MAIN FEATURE:1 Workpiece materials: stainless steel, iron, aluminum, copper and other metal sticks and other special materials can be turning bar.2. Processing diameter: 2mm-20mm3. Processing length: unlimited4. Double Spindle Dual take effort, primary and secondary axis can be processed simultaneously, and do not intervene.5. The end face of the countershaft boring tool turret 4 can replace 4 power head to achieve the end face machining eccentric hole.
Spindle bore diameter: 22 mm
Max.dia. of workpiece:20 mm
Chuck Model: Tsugami S20
Sleeveless guide tech: Y
Spindle center to the ground level: 975 mm
Unlimited indexing spindle: Yes
Spindle feed stroke:180 mm
C-Axis minimum scale:0.001 mm
CNC SYSTEM: SYNTEC 200TA
Spindle motor:3.7kw
Spindle speed:200-8000 rpm
Minimum setting unit:0.001 mm
Number of control axes: 8 axes
Hand wheel set: Yes
X-Axis travel: 50 mm
Z-Axis travel:400 mm
Y-Axis travel:165 mm
X2-Axis travel: 325 mm
Z2-Axis travel:320 mm
X/Y/Z/X2/Y2/Z2 rapid feed speed:24m/min
X/Y/Z/X2/Y2/Z2 servo motor power: 0.75kw
X/Y/Z repeating accuracy:±0.001 mm
X/Y/Z positioning accuracy:0.002 mm
Outer diameter tool: 5 pcs (12*12)
Inner diameter tool: 4 + 4 pcs (ER 11/16)
Side milling cutter: 4 pcs (ER 11/16×4)
Power turret hole: 4
Overall dimensions: 2600*1670*1950
Total Power: 12 kw
Power Capacity:21kw
Weight: 3220 kg
