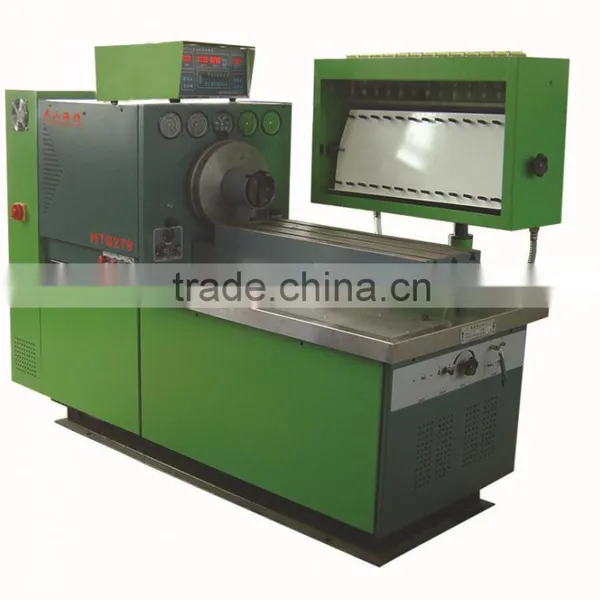

HTS279A Multi-language system diesel pump test bench from haishu
Introduction
HTS279A diesel pump test bench from haishu with LED digital display; adopt high quality frequency conversing device, and it has characteristic with hi-reliability, ultra-low-noise, energy save, high output torque, perfect auto-protecting function and operate easy. It is the kind of product with high quality and good price in our business.
Use
1, Commissioning of each cylinder injection pump fuel supply and fuel supply uniformity
2 HTS279A series fuel injection pump test bench debugging injection pump oil supply starting point, oil interval angle;
3, the governor performance debugging;
4, injection pump tightness test;
5 the distributor pumps oil test;
6, assigned to the inspection of the pump pressure compensator;
7, the allocation of the pump cavity pressure measurement;
8, advance angle measurement (optional);
9, the gear lever stroke measurement (optional).
Characteristics
1. fuel pump test bench industrial computer;
2. LED digital display;
3. speed manual, automatic optional;
4. speed six-speed preset, arbitrary set;
5. fuel pump test bench the table for the wide-body T-slot;
6,. HTS279A diesel fuel injection pump test bench from haishu fuel cooling mode: air-cooled (standard), the compressor forced cooling (optional);
Technical parameters
Model |
HTS279A-75 |
HTS279-110 |
HTS279-150 |
Spindle speed range |
0~3000 rpm |
0~3000 rpm |
0~3000 rpm |
injection pump cylinder |
12 |
12 |
12 |
spindle maximum output power |
7.5 KW |
11 KW |
15 KW |
Spindle center height |
125 mm |
125 mm |
125 mm |
Fuel system fuel supply |
≥6 L/min |
≥8 L/min |
≥8 L/min |
oil pressure |
Low≥0.4, High≥4.0 (MPa) |
Low≥0.4, High≥4.0 (MPa) |
Low≥0.4, High≥4.0 (MPa) |
Number of times |
0~1000 |
0~1000 |
0~1000 |
Fuel temperature |
40±2 ℃ |
40±2 ℃ |
40±2 ℃ |
Positive pressure |
0~0.16 MPa |
0~0.16 MPa |
0~0.16 MPa |
Negative pressure |
-0.1~0 MPa |
-0.1~0 MPa |
-0.1~0 MPa |
DC power |
12/24 V |
12/24 V |
12/24 V |
Back oil measurement |
6~60 L/h |
6~60 L/h |
6~60 L/h |
Dimensions |
2100×1100×1750 (L×W×H)mm |
2100×1100× 1750 (L×W×H)mm |
2100×1100× 1750 (L×W×H)mm |
Weight |
800 Kg |
900 Kg |
1000 Kg |
