Specifications
HTS679I diesel fuel injection pump test benchIt is designed mainly for fuel injection pump manu

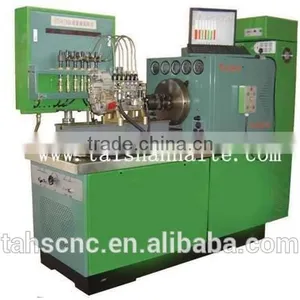

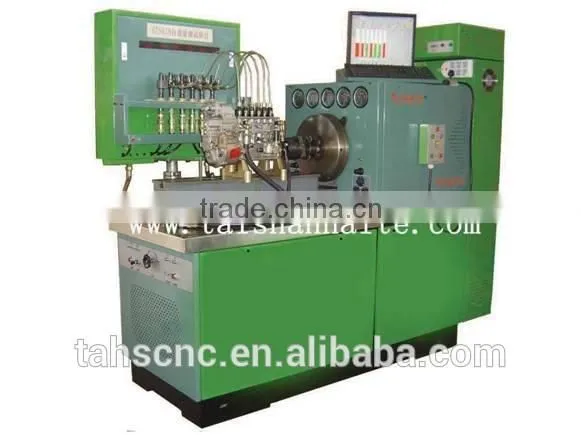

HTS679 diesel fuel injection pump test bench
HTS679 diesel pump test bench is a kind of fuel injection pump test bench adopt Industrial computers, color screen display;
Internal combustion engine test bench has human-machine interface, digital controlling of rpm, temperature, pressure, diesel fuel pump technical parameter and so on, and in pace with print. It easy and quick operates ,
HTS679I diesel fuel injection pump test bench is high precision .ultra-low-noise, perfect auto-protecting function and so on, It is welcomed product .
Functions :
Commissioning of each cylinder injection pump fuel supply and fuel supply uniformity;
Commissioning supply starting point fuel injection pump, oil interval angle;
Avariety of performance governor debugging;
The fuel pump tightness test;
Fuel dispensing pump back tests;
The distribution pump pressure compensator checking;
The distribution pump chamber pressure measurement;
The advance angle measurement;
The gear lever stroke measurements.
Characteristics
Industrial computers, color screen display;
Fuel flow sensor using precision measurement;
Hydraulic, pneumatic, gear lever stroke digital display;
Import governor and electrical buttons;
Speed manual and automatic optional;
The case for the plug-in door.
.Technical parameters
Test Bench Model |
HTS 679-110/150 |
HTS 679-185/220/300 |
|
Spindle speed range(rpm) (rpm) |
0~4000 |
0~3000 |
Test number of cylinders |
12 |
|
|
Spindle maximum output power(kw) (KW) |
11/15 |
18.5/22/30 |
|
Spindle center height(mm) (mm) |
125 |
|
|
Fuel oil supply(L/min) (L/min) |
≥8 |
≥10 |
|
Fuel pressure(MPa) (MPa) |
Low≥0,.4,High ≥4.0 |
|
Injection times |
0~1000 |
|
Fuel control temperature(℃). |
40±2 |
|
|
Positive pressure(MPa) (MPa) |
0~0.16 |
|
Negative pressure(MPa) |
-0.1~0 |
|
DC power supply (V) |
12/24 |
|
Oil return measurements (L / h) |
6~60 |
|
Gear lever stroke (mm) |
0~25 |
|
Advance angle (°) |
0~10 |
|
Dimensions (L × W × H) |
1850×1100×1750 |
2100×1100×1750 |
Weight (Kg) |
800/850//900/1000 |
1100/1200/1300 |
our workshop
our service
because we are the direct manufacture of test bench ,
and we have engineer in the workshop , our office is so near to the workshop , so we can solve your questions quckily
And give you perfect after sale service .
